HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Original price was: $1,634.60.Current price is: $1,379.19.

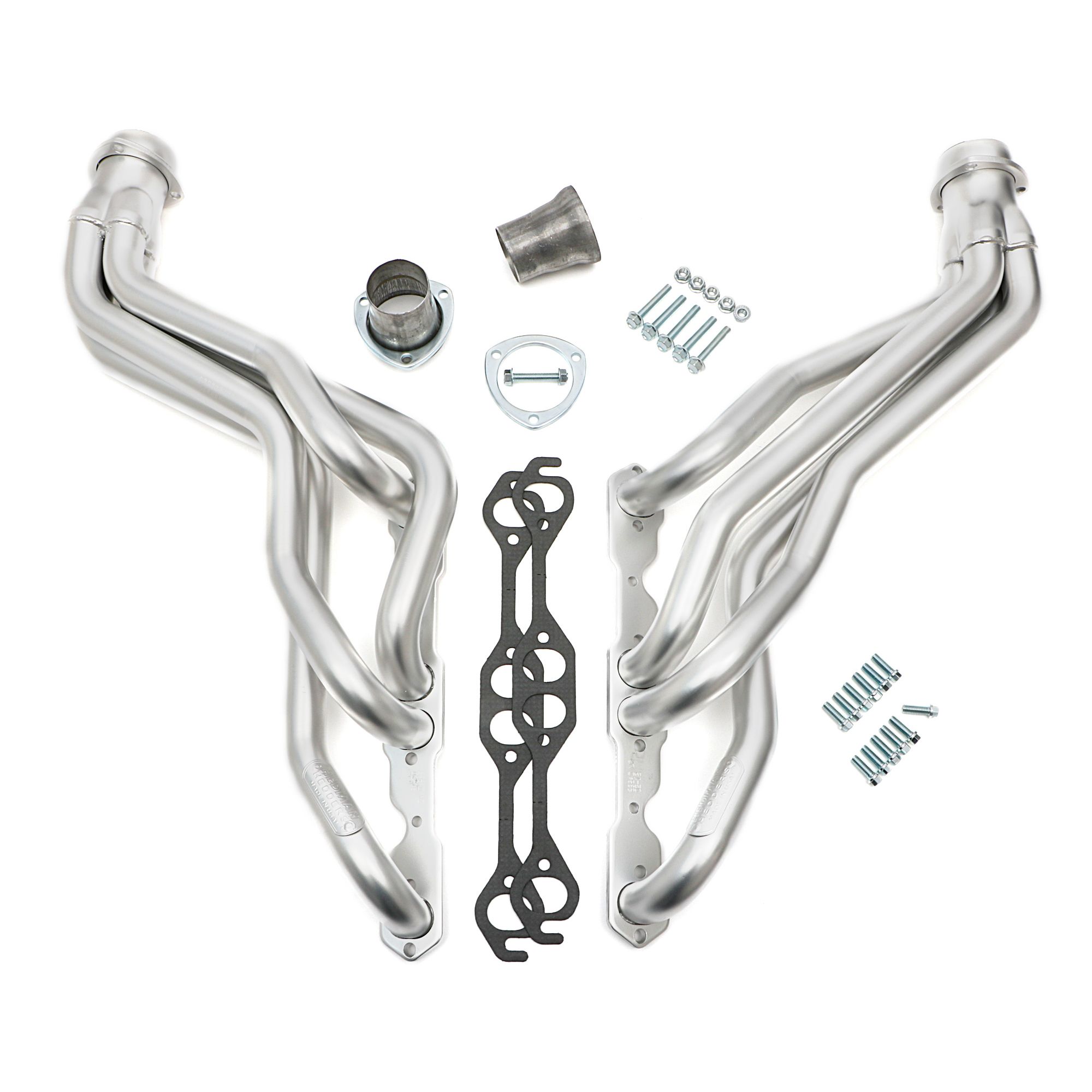

Heavy-Duty ELITE, Long Tube Headers For 1988-95 CHEVY/GMC 2WD & 4WD 1/2 to 1 Ton Pick-Up Truck, Full-Size Blazer with 5.0-5.7L Engine (Engine OFFSET to Passenger Side); 1-5/8 in. Long Tubes; 3 in. Ball/Socket Collector

Heavy-Duty ELITE Header Construction With Thick 3/8 in. Flanges and 14g Primary Tubes To Hold Up To The Added Tortures Of High-Performance and Truck Engines.
Thermal Coating Keeps More Heat In The Headers To Keep Underhood Temps Down and Protect Against Corrosion.
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors

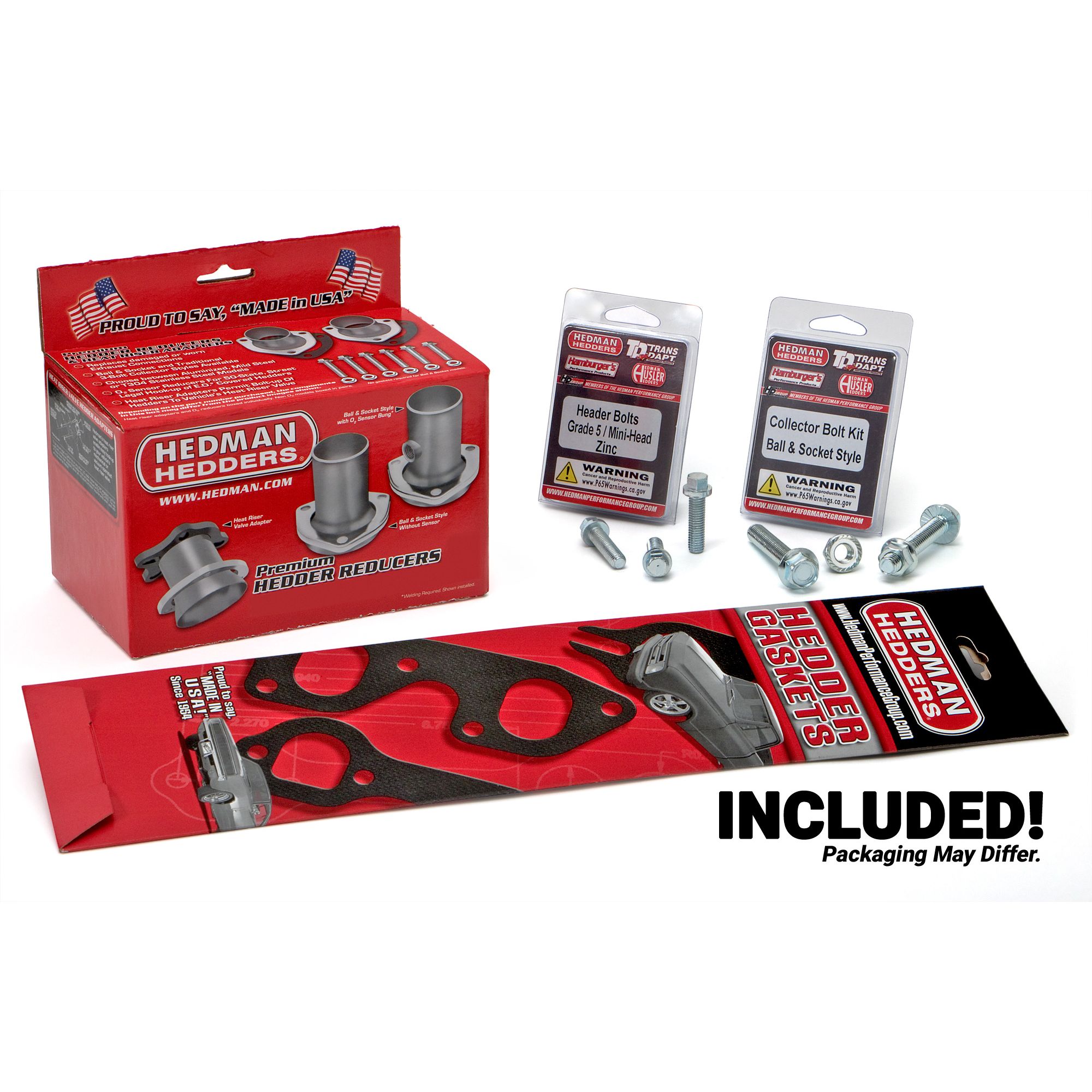

Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Proud To Say, Made In The USA, Since 1954!

SKU: FBLG-69840 Category: Exhaust Header

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and mid-length tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your 5.0L / 5.7L SB Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8 in. flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.These LONG-TUBE headers fit 1988-95 2WD and 4WD 1/2, 3/4 & 1 ton Chevy Trucks with a factory 5.0L or 5.7L Chevy powerplant (check the application listings for exact fitment). The smooth 1-5/8 in. tube design provides ample exhaust flow to let your OBS Chevy truck's factory Small Block engine breathe easy, and produce maximum horsepower and torque.Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.

Additional Attributes:

GTIN: 00732611698405
Air Conditioning: Yes
Automatic Transmission – Column: Yes
Automatic Transmission – Floor: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Crossover Pipe Included: No
Cylinder Head Port Shape: Oval
Cylinder Head: Stock Profile Heads
E.O. #: No
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Exhaust System Dia: 2-1/2 in.
Finish Type: MATTE SILVER Ceramic-metallic coated
Finish: Matte Silver Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.375 in.
Footnotes: 127. Late Model Chassis. ENGINE OFFSET to passenger side of vehicle.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- ELITE Heavy-Duty
Header Fasteners Included: Yes
Header Finish: Matte Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Oval Port
Header Style: Long Tube
Installation Hardware Included: Yes
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: No
Mounting Hardware Included: Yes
Notes: 88-95 GM 1/2, 3/4, 1 Ton Truck/SUV 5.0-5.7L
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape: Oval
Power Steering: Yes
Primary Tube Diameter (in): 1.625 in.
Primary Tube Gauge: 14g
Quantity: Sold as a pair.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27520
Replacement Head Flange Gasket: 27520
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Tube Length: Long Tubes
Tube Material Thickness: 14g
Tube Size: 1-5/8 in.
Tube Style: Long Tubes
Tuned: No
Variations: 69446, 69840
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No
