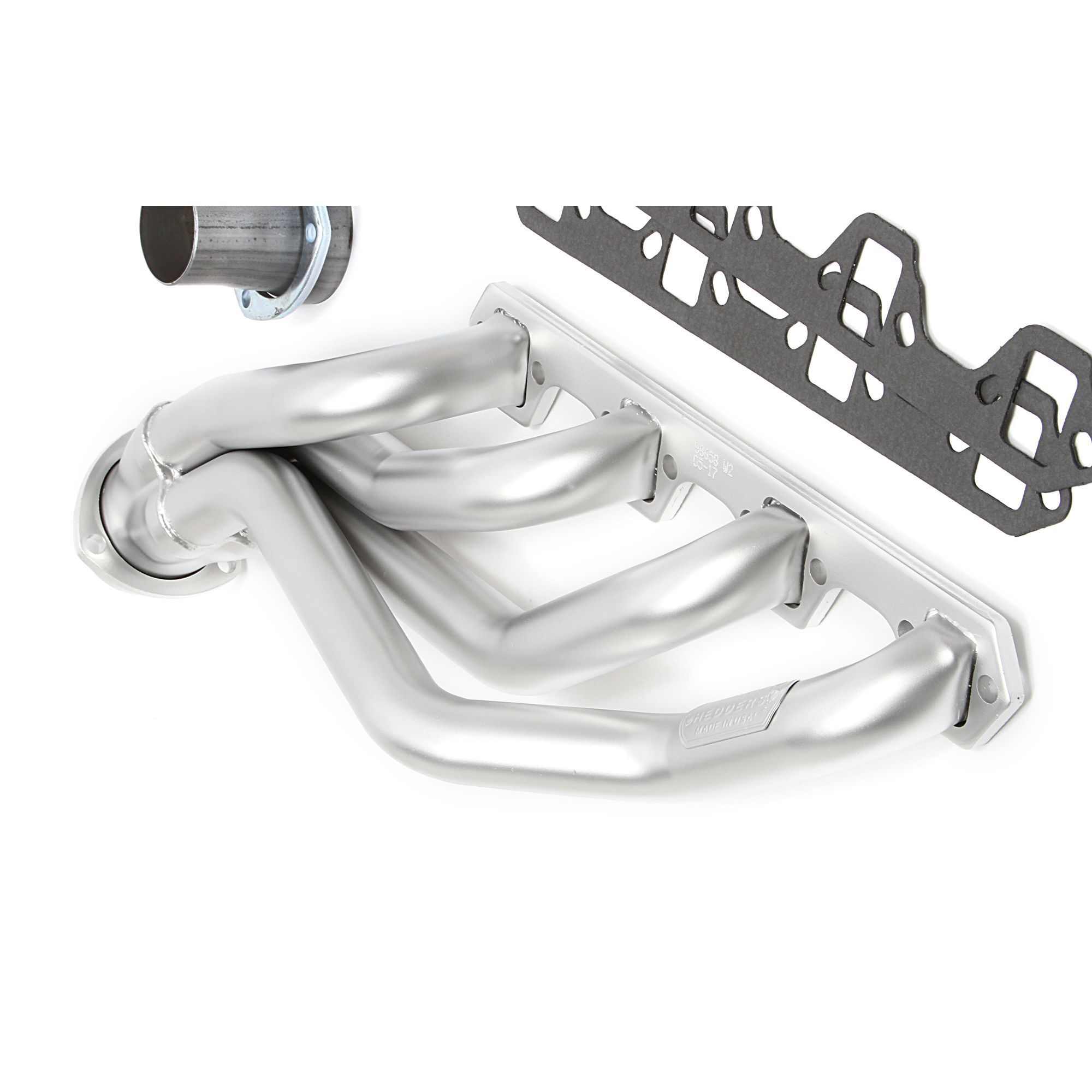

HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; MID-LENGTH DESIGN

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and manufacturing Ford Mustang headers for nearly as long as they've been on the road. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W engine swap headers, even if it is not perfectly aligned with the header collectors.</p><p>This set is part of Hedman's ELITE line of headers that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavy-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines, which produce higher exhaust temperatures.</p><p>ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great, and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.</p><p>These MID-LENGTH TUBE headers are designed specifically for swapping a 351W engine into (non-factory 351W equipped) 1964-73 Ford Mustang, Falcon, or '66-73 Ranchero, Torino. The engine must be centered between the framerails. These headers fit both automatic and manual transmissions, but clutch and shift linkage may be required. The smooth 1-5/8 in., oval port tube design tucks in tight to clear shock towers, and provide superior exhaust flow over factory manifolds to let your 351 Windsor block engine breathe better, and produce excellent low-end torque and horsepower.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic coating is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.</p>

Additional Attributes:

GTIN: 00732611886581
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Contents: Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions
Crossover Pipe Included: No
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
E.O. #: No
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine Version: Ford Windsor Block (W)
Exhaust System Dia: 2-1/2 in.
Finish Type: MATTE SILVER Ceramic-metallic coated
Finish: Matte Silver Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- ELITE Heavy-Duty
Header Fasteners Included: Yes
Header Finish: Matte Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Square
Header Style: Mid-Length Tube
Installation Hardware Included: Yes
Key Feature: Engine Swap
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: No
Mounting Hardware Included: Yes
Notes: 64-73 Ford Mustang 351W
Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape: Square
Power Steering: Yes
Primary Tube Diameter (in): 1.625 in.
Primary Tube Gauge: 14g
Quantity: Sold as a pair.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27340
Replacement Head Flange Gasket: 27340
Special Engine Notes: 351 WINDSOR
Tube Design: Standard
Tube Diameter: 1-5/8 in.
Tube Length: Mid-Length Tubes
Tube Material Thickness: 14g
Tube Size: 1-5/8 in.
Tube Style: Mid-Length
Tuned: No
Variations: 83658, 88656
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: ST
Dimension: 29 x 16.5 x 8.25 inches
Weight: 29 PG
