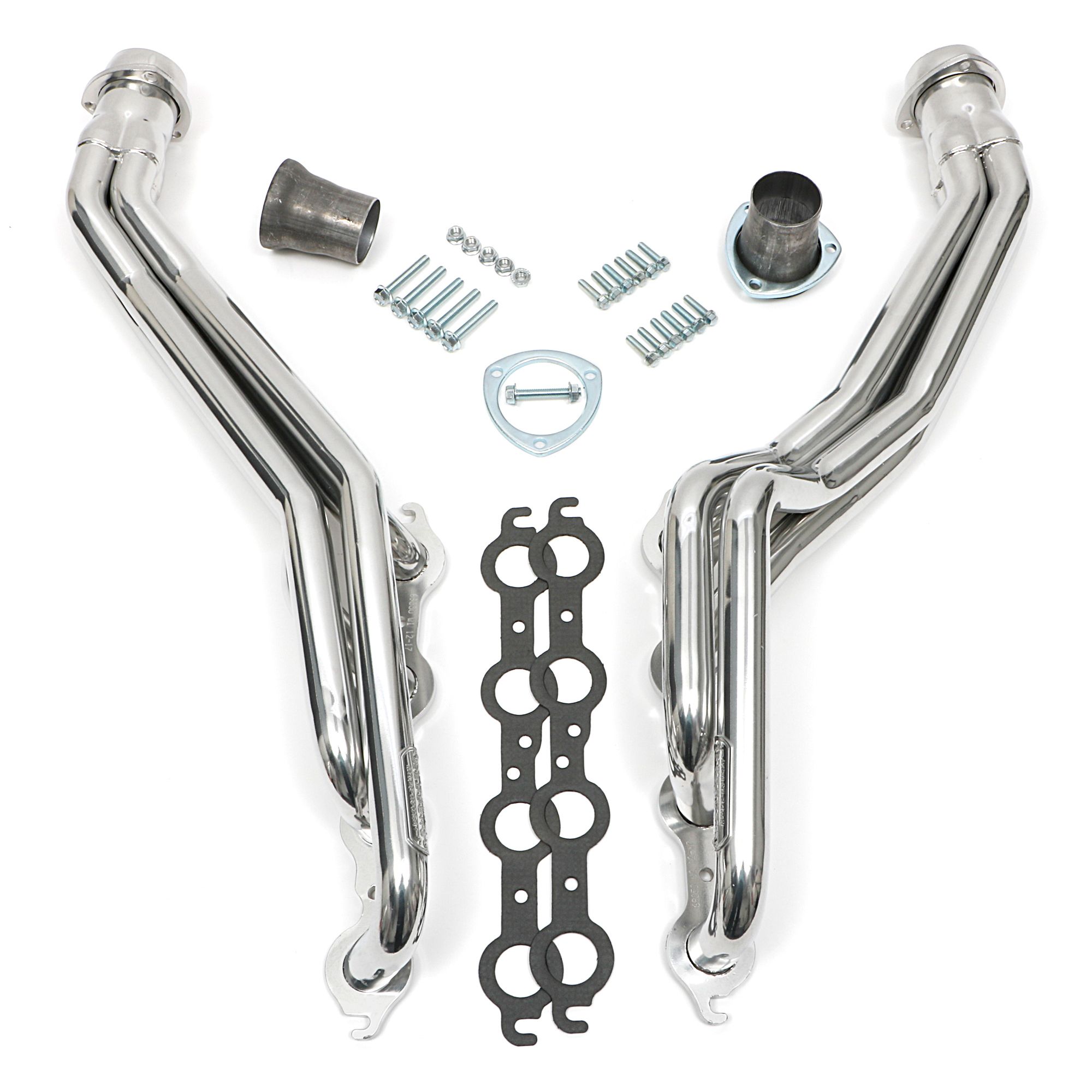

HEDMAN HEDDERS HEDMAN HEADERS 1982-04 CHEVY/GMC S10/S15 (2WD) LS SWAP HEADERS; 1-1/2 IN. LONG TUBE; 3 IN. BALL/SOCKET COLLECTOR- HTC SILVER CERAMIC COATED

Additional Attributes:

GTIN: 00732611690560
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Contents: Headers, gaskets, 3-bolt exhaust adapters, mounting hardware
Crossover Pipe Included: No
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
Drivetrain: 2WD Only!
E.O. #: No
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine: Chevy LS Series
Exhaust System Dia: 2-1/2 in.
Finish Type: HTC SILVER (polished) Ceramic-metallic Coating
Finish: HTC Polished Silver Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Head Type: Factory Heads
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: HTC Polished Silver Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Long Tube
Installation Hardware Included: Yes
Installation Notes: Requires Trans-dapt Engine Swap Mount Kit 4516 (rubber) or 4530 (all steel)
Manual Transmission – Column: No
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: No

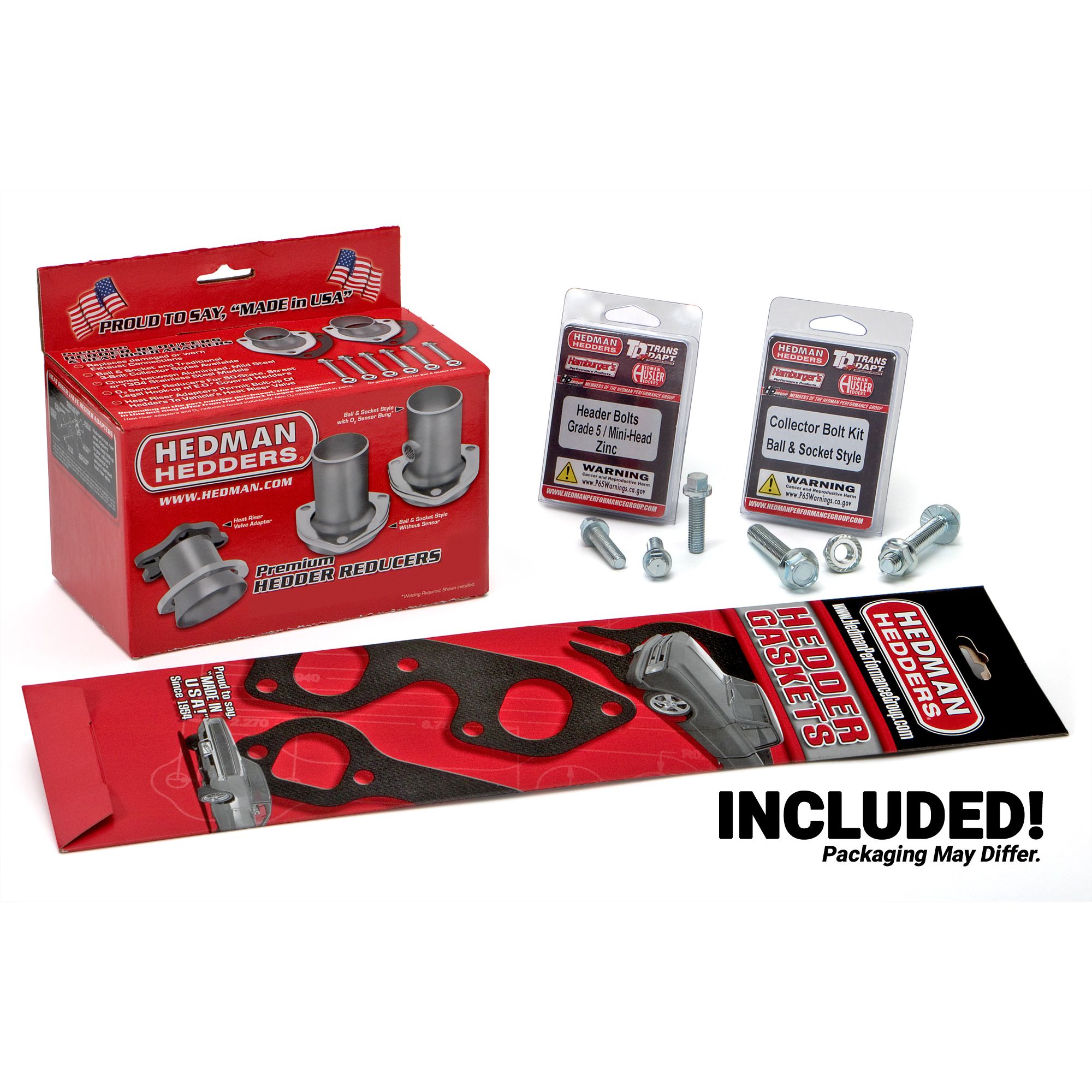

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.50 in.
Primary Tube Gauge: 16g
Product Type: Headers
Quantity: Sold as a pair.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27470
Replacement Head Flange Gasket: 27470
Tube Design: Standard
Tube Diameter: 1-1/2 in.
Tube Length: Long Tubes
Tube Material Thickness: 16g
Tube Size: 1-1/2 in.
Tube Style: Long Tubes
Tuned: No
Variations: 69050, 69053, 69056
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : Racing or Pre-Emissions Use Only
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: PR
Dimension: 39 x 16.5 x 8.25 inches
Weight: 37 PG

PDF:

69050series-instructionsheet
