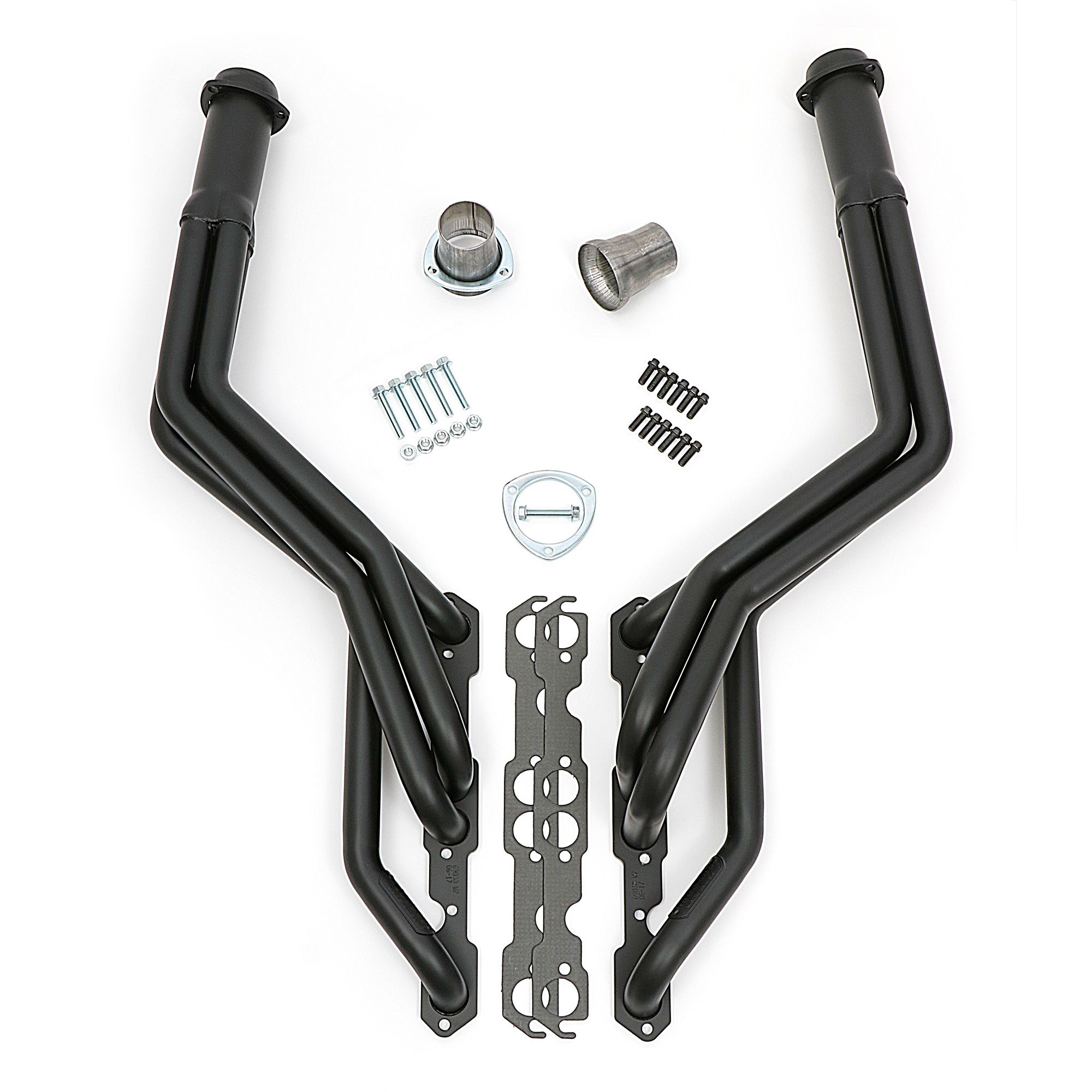

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and no one has more experience designing quality fitting and performing headers than Hedman Hedders. These headers are a long tube design set of headers that have been designed specifically for installing a Gen 1 SB Chevy motor into 1982-04 2WD Chevy S10 / Blazer, and GMC S15 / Jimmy trucks.</p><p>The smooth-flowing mandrel-bent, long tube, under frame design gives your engine all the exhaust flow it will need to produce maximum horsepower and torque, and not just from your headers, but all of your performance add-ons. If your engine can't efficiently expel spent combustion gasses, your high dollar heads, intake manifold, blower, or even your cold air intake system, will be bottle-necked, limiting the amount of torque you can produce.</p><p>The ball & socket style collector integrated into these Hedmans means there's no collector gasket to blow out.</p><p>These headers come from the factory with Hedman's durable Black Maxx, satin black ceramic-metallic finish. This coating will withstand operating temperatures up to 1400° F. The finish retains more exhaust heat inside the header tubes to keep underhood temperatures down, and increase exhaust gas flow speeds. This coating is warrantied for a full 5 years, while the header materials and construction are factory-backed by Hedman's Limited Lifetime Warranty.</p>
Additional Attributes:
GTIN: 00732611690331
Air Conditioning: Yes
Automatic Transmission – Column: No
Automatic Transmission – Floor: Yes
California Proposition 65: WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Crossover Pipe Included: No
Cylinder Head Port Shape: Round
Cylinder Head: Fits Factory GM Aluminum Angle Plug and Straight Plug Heads.
Drivetrain: 2WD Only!
E.O. #: No
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Engine: Chevy SB 283-400 (Gen 1) 1958-86
Exhaust System Dia: 2-1/2 in.
Finish Type: BLACK MAXX- Black Ceramic-Metallic Coating
Finish: BLACK MAXX Satin Black Ceramic-Metallic
Flange Style: Standard
Flange Thickness: 0.375 in.
For Use On: 2WD Models Only.
Gasket Or Seal Included: Yes
Head Type: Angle Plug Heads
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: BLACK MAXX Satin Black Ceramic-Metallic
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Long Tube
Installation Hardware Included: Yes
Key Feature: Engine Swap Headers
Manual Transmission – Column: No
Manual Transmission – Floor: No
Material: Mild Steel
O2 Provision: No
O2 Sensors Included: No
Oxygen Sensor Bung Included: No

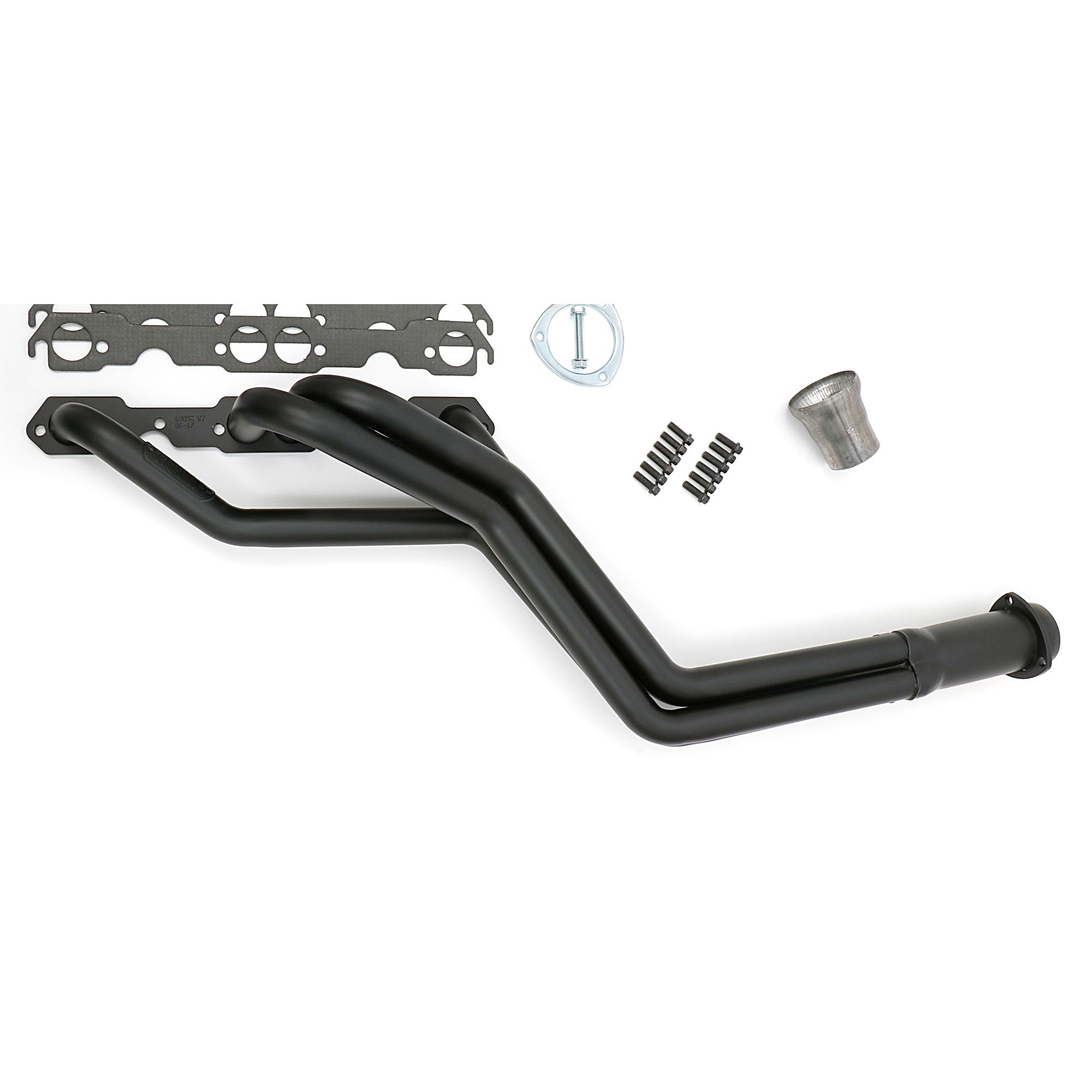

Package Contents: Set of Headers, mounting hardware and gaskets
Port Style: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.50 in.
Primary Tube Gauge: 16g
Quantity: Sold as a pair.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27030
Transmission Compatibility: Automatic Transmission
Tube Design: Standard
Tube Diameter: 1-1/2 in.
Tube Length: Long Tubes
Tube Material Thickness: 16g
Tube Size: 1-1/2 in.
Tube Style: Long Tubes
Tuned: No
Vehicle Family: Chevy/GMC S10/S15 Family; 1982-04
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No
Extended Information:
Emissions : EPA Eligible
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1
Package UOM: ST
Dimension: 20.5 x 46.5 x 10.5 inches
Weight: 36.5 PG
