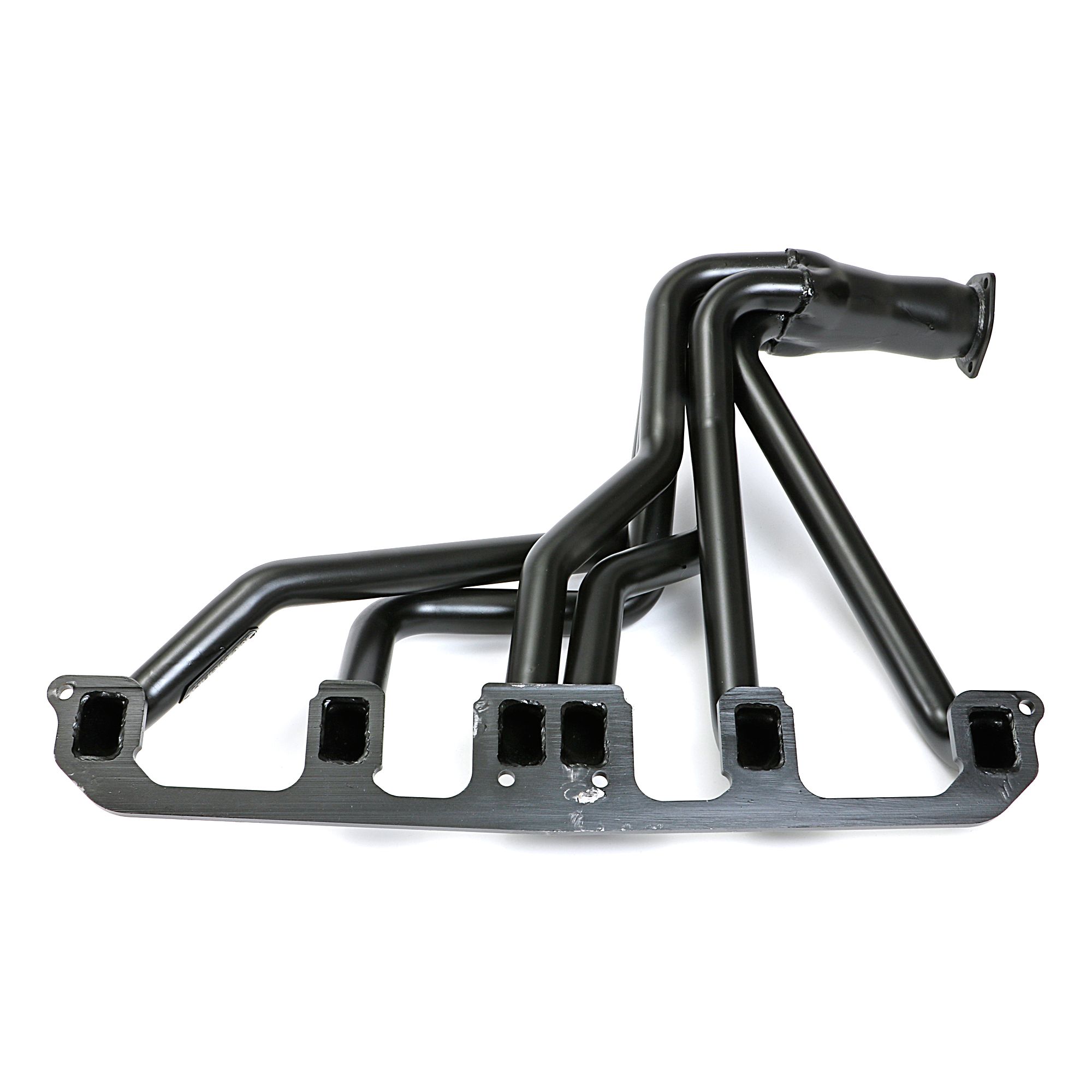

HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; 6-INTO-1 DESIGN

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Inline 6 AMC headers, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, 6-into-1, LONG-TUBE, headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with AMC's "torquey" 232-258 I6 engine. They are compatible with both manual and automatic transmission setups, and the long, smooth 1-1/2 in. tube design provides excellent exhaust flow to let your CJ's Inline 6 AMC engine exhale better, to pull out every bit of available torque and power you down any trail.</p><p>These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>

Additional Attributes:

GTIN: 00732611996105
Air Conditioning: Yes
Automatic Transmission – Column: Yes
Automatic Transmission – Floor: Yes
Bolts/Studs Included: No
California Proposition 65: WARNING: Cancer. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Collector Attachment: 2-1/2 in.
Collector Bolts Included: Yes
Collector Diameter: 2-1/2 in.
Collector Size: 2-1/2 in.
Collector Style: 3-Bolt Gasket Style Flange

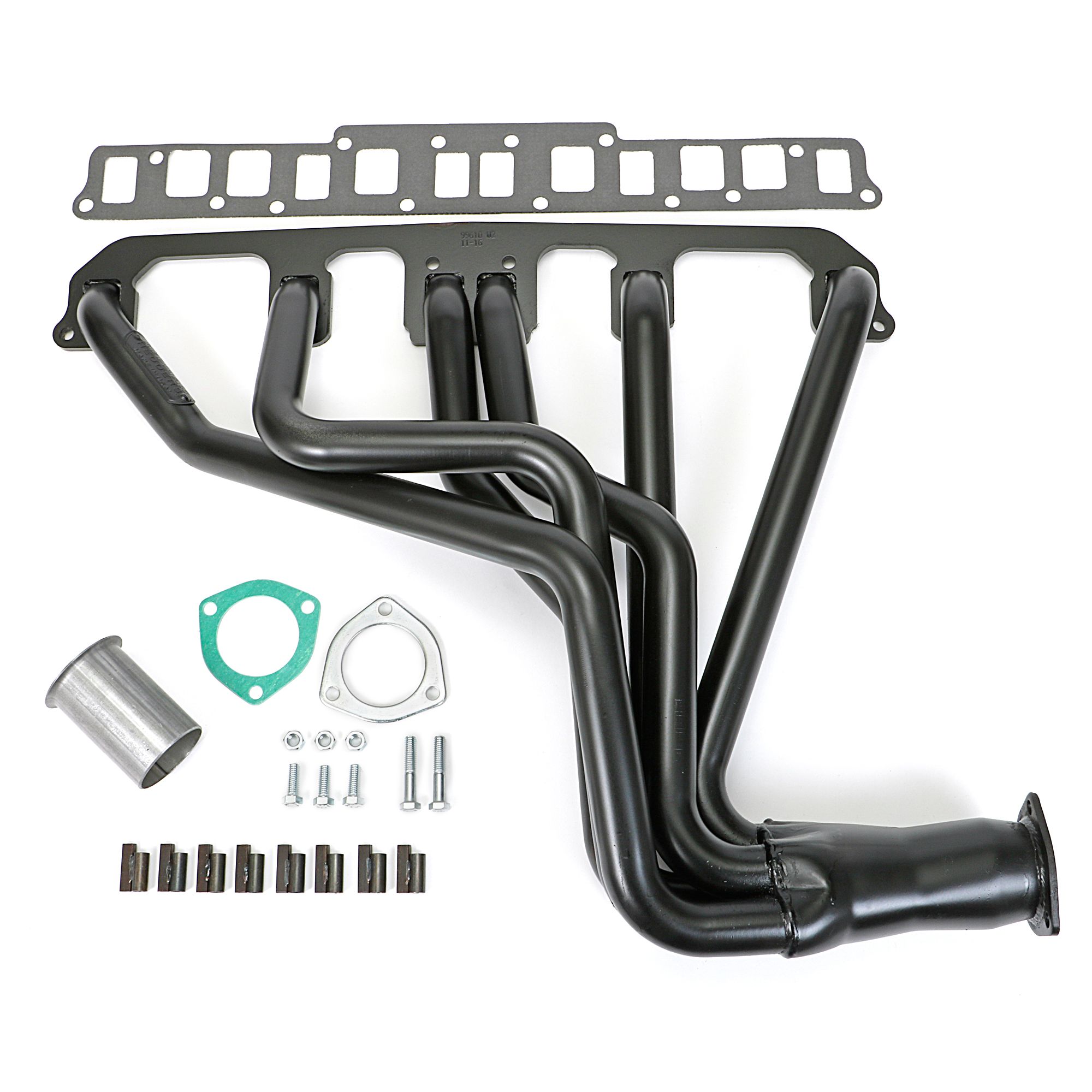

Contents: Headers, Gaskets, 3-bolt Exhaust Adapters, Spacers (Uses factory bolts/studs)
Crossover Pipe Included: No
Cylinder Head Port Shape: Rectangle
Cylinder Head: Stock Profile Heads
E.O. #: No
Emissions Notes: Not Legal For Street Use on ’75-Later Model Years! Legal for off-road use only.
Exhaust System Dia: 2-1/2 in.
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Finish: Uncoated
Flange Style: Standard
Flange Thickness: 0.375 in.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: No
Header Finish: Uncoated
Header Material: Mild Steel
Header Port Shape: Rectangle
Header Style: Long Tube
Installation Hardware Included: No
Manual Transmission – Column: Yes
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: No
Mounting Hardware Included: No
Notes: 72-86 Jeep CJ5, CJ6, CJ7 232-258
Package Contents: Headers, Gaskets, 3-bolt Exhaust Adapters, Spacers (Uses factory bolts/studs)
Port Shape: Rectangle
Power Steering: Yes
Primary Tube Diameter (in): 1.50 in.
Primary Tube Gauge: 14g
Quantity: Sold individually.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27820
Replacement Head Flange Gasket: 27820
Tube Design: Standard
Tube Diameter: 1-1/2 in.
Tube Length: Long Tubes
Tube Material Thickness: 14g
Tube Size: 1-1/2 in.
Tube Style: 6-into-1
Tuned: No
Variations: 99616
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : EPA Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: ST
Dimension: 46 x 20 x 10 inches
Weight: 25 PG

PDF:

99610
