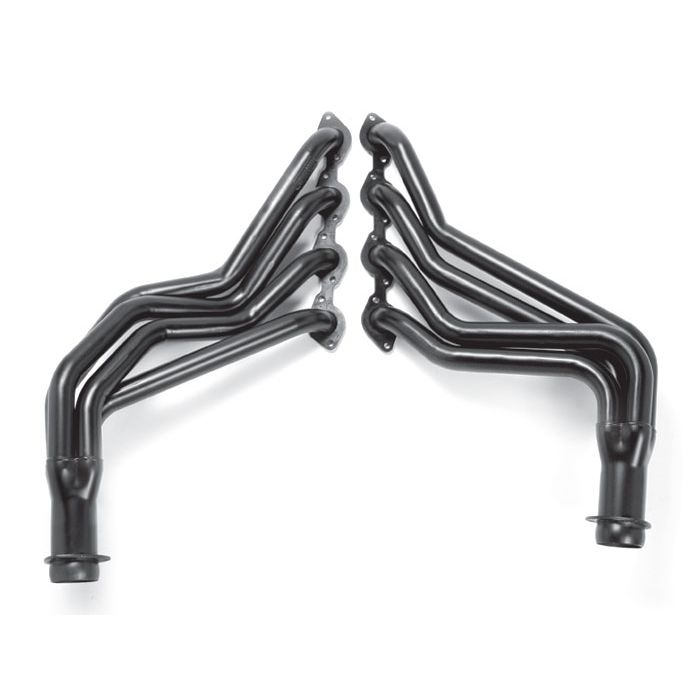

HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

Original price was: $1,008.23.Current price is: $850.70.

Standard-Duty, Uncoated 50-State Legal Headers without A.I.R. For 1967-87 CHEVY/GMC 2WD & 4WD 1/2 to 1 Ton Pick-Up Truck, Blazer and SUV with 396-502 BB Chevy (Centered Engine Chassis Only); 1-3/4 in. Long Tubes; 3 in. Ball/Socket Collector

Handcrafted, Mild Steel Construction.
Long Tube Header Design Provides Excellent Top-End Horsepower and Torque.
Ball & Socket Collector Design requires No Gasket, and Allows For More Exhaust System Misalignment than Old School, Gasket-Style Header Collectors
Includes All The Necessary Mounting Hardware, Gaskets and Reducers (exhaust adapters)
Limted Lifetime Warranty On Construction, Five Year Warranty on Factory-Applied Header Coating!
Proud To Say, Made In The USA, Since 1954!

SKU: FBLG-69117 Category: Exhaust Header

Additional Attributes:

GTIN: 00732611691178
Air Conditioning: Yes
Automatic Transmission – Column: Yes
Automatic Transmission – Floor: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Chassis Compatibility: NOT For Vehicles With Offset (right) Engine Position!
Clutch Notes: Must use 1975 and later model clutch linkage located at rear of engine. (139)
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Crossover Pipe Included: No
Cylinder Head Port Shape: Round
Cylinder Head: Stock Profile Heads
E.O. #: Yes
Emissions Notes: EO# D167-33 (click here for covered vehicles in document on ARB.CA.GOV website)
Exhaust System Dia: 2-1/2 in.
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Finish: Uncoated
Flange Style: Standard
Flange Thickness: 0.3125 in.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: Uncoated
Header Material: Mild Steel
Header Port Shape: Round
Header Style: Long Tube
Installation Hardware Included: Yes
Manual Transmission – Column: Yes
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: No
Mounting Hardware Included: Yes
Notes: 68-91 GM 3/4, 1 Ton Truck, SUV 396-502 2-4WD

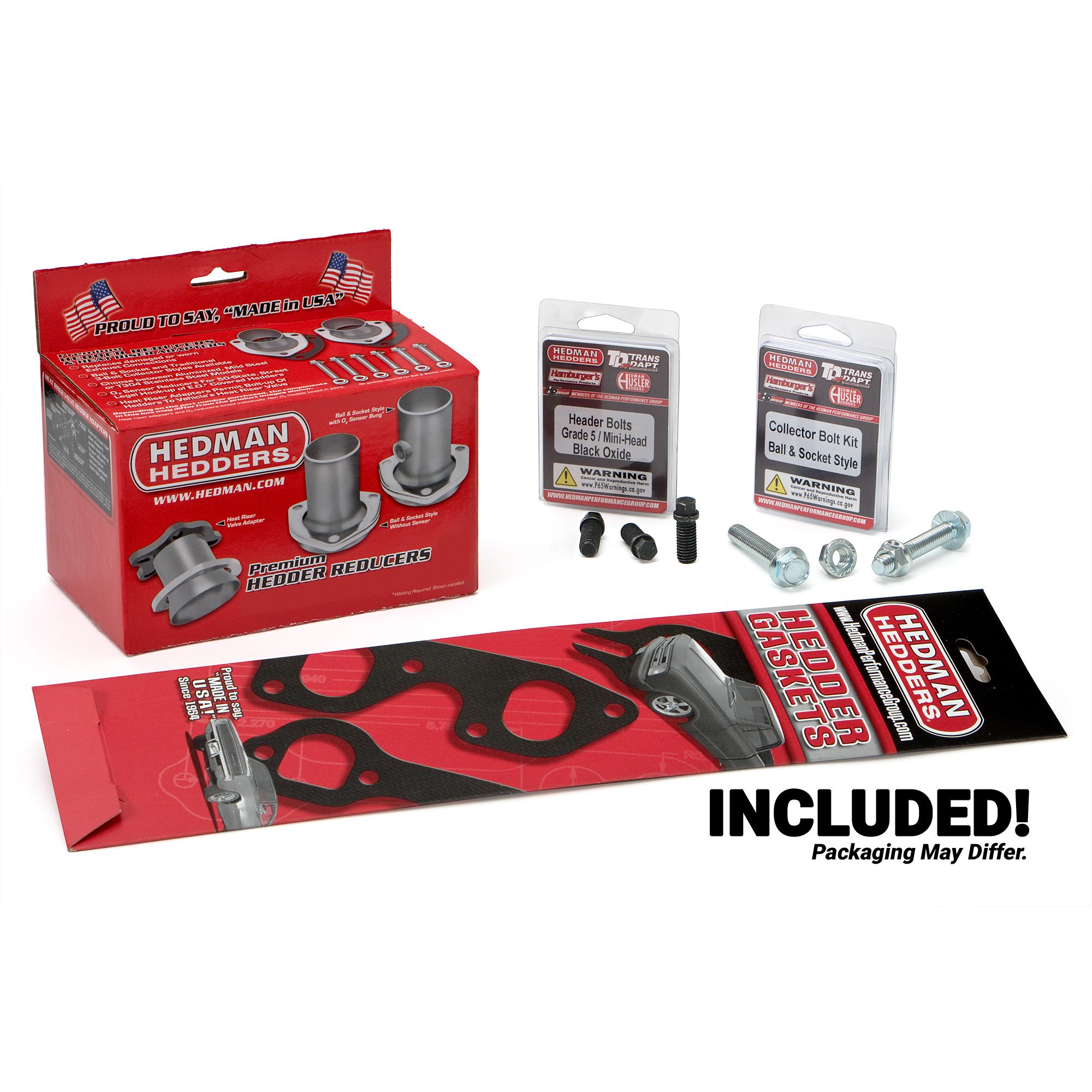

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape: Round
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Quantity: Sold as a pair.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27530
Replacement Head Flange Gasket: 27530
Tube Design: Standard
Tube Diameter: 1-3/4 in.
Tube Length: Long Tubes
Tube Material Thickness: 16g
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Tuned: No
Variations: 66117, 69827
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No
