HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN

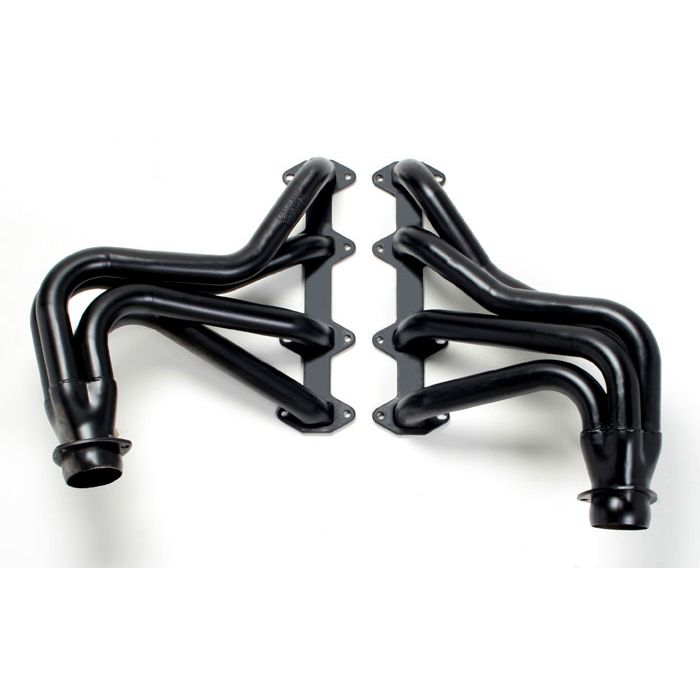

<p>Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 352-427 FE headers, even if it is not perfectly aligned with the header collectors.</p><p>These uncoated, LONG-TUBE headers fit 1965-1976 Ford 1/2, 3/4 and 1 ton, 2WD Trucks with a 352-427 FE engine.These headers have been successfully tested and assigned E.O. number D167-27 by C.A.R.B., making these headers 50-state legal on the emissions-controlled 1975-1976 models without A.I.R. System. The long, smooth-flowing 1-3/4 in. tube design provides excellent exhaust flow to let your F-Series Ford truck's factory FE engine breathe easy, and produce loads of horsepower and torque. They fit manual and auto transmissions, but will not install on Camper Special or front swaybar equipped models.</p><p>These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.</p><p>Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.</p><p>Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.</p>

Additional Attributes:

GTIN: 00732611891004
Air Conditioning: Yes
Automatic Transmission – Column: Yes
Automatic Transmission – Floor: Yes
Bolts/Studs Included: Yes
California Proposition 65: WARNING: Cancer. For more info visit www.P65Warnings.ca.gov
Catalytic Converter(s) Included: No
Collector Attachment: 3 in.
Collector Bolts Included: Yes
Collector Diameter: 3 in.
Collector Size: 3 in.
Collector Style: BALL and SOCKET Style (Gasketless)
Contents: headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware
Crossover Pipe Included: No
Cylinder Head Port Shape: Square
Cylinder Head: Stock Profile Heads
Drivetrain: 2WD Only!
E.O. #: Yes
Emissions Notes: EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website)
Exhaust System Dia: 2-1/2 in.
Finish Type: UNCOATED Mild Steel! Shipped with Temporary Paint.
Finish: Uncoated
Flange Style: Standard
Flange Thickness: 0.3125 in.
Footnotes: 1. Without smog injection or injection heads.
Gasket Or Seal Included: Yes
Header Construction: MILD STEEL- Standard-Duty
Header Fasteners Included: Yes
Header Finish: Uncoated
Header Material: Mild Steel
Header Port Shape: Square
Header Style: Long Tube
Installation Hardware Included: Yes
Manual Transmission – Column: Yes
Manual Transmission – Floor: Yes
Material: Mild Steel
Motor Mounts Included: No
Mounting Hardware Included: Yes
Notes: 65-76 Ford 1/2, 3/4, 1 Ton Trucks; 2WD 352-427

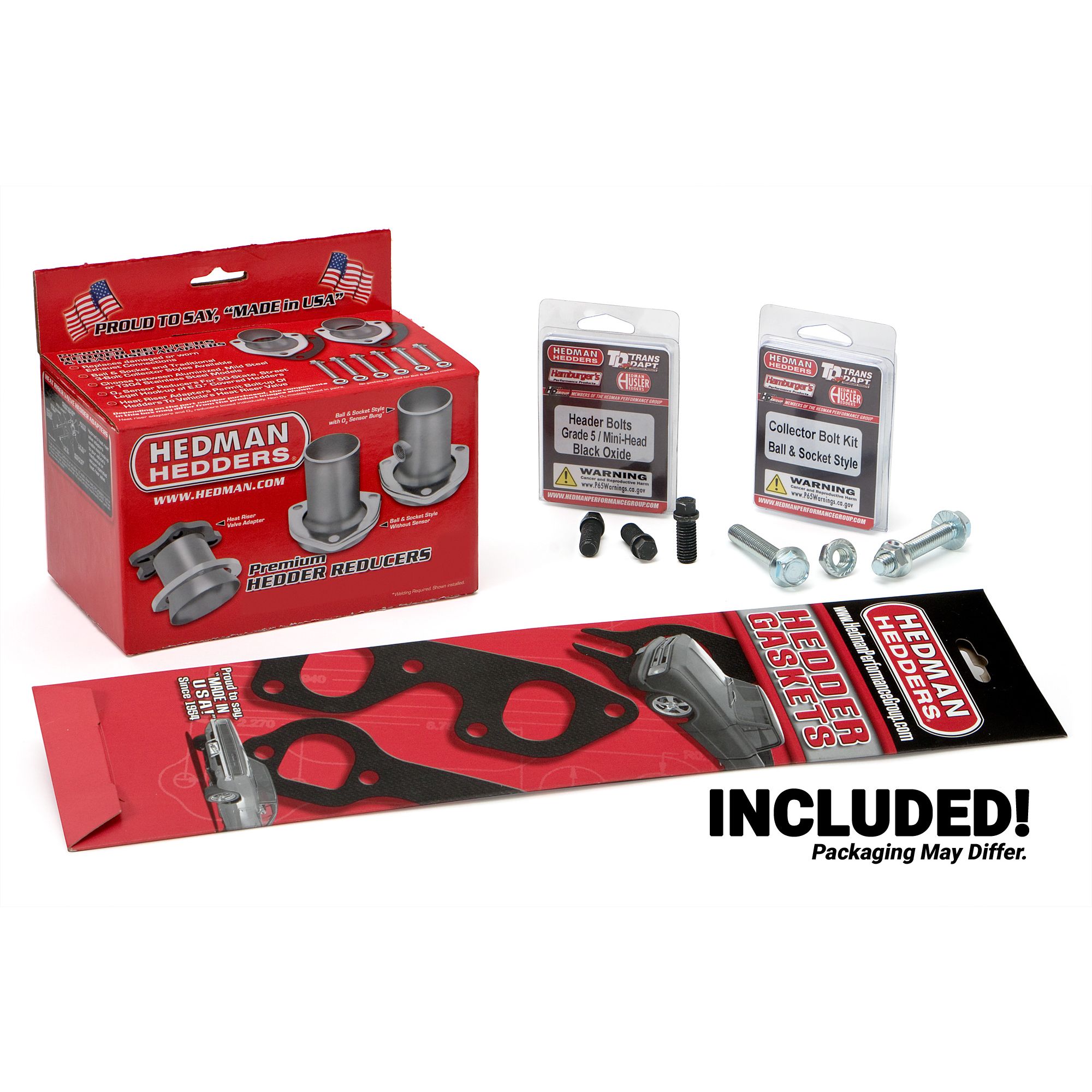

Package Contents: Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware
Port Shape: Square
Power Steering: Yes
Primary Tube Diameter (in): 1.75 in.
Primary Tube Gauge: 16g
Quantity: Sold as a pair.
Reducer Outlet Size: 2-1/2 in.
Reducers Included: Yes
Replacement Gasket: 27740
Replacement Head Flange Gasket: 27740
Tube Design: Standard
Tube Diameter: 1-3/4 in.
Tube Length: Long Tubes
Tube Material Thickness: 16g
Tube Size: 1-3/4 in.
Tube Style: Long Tubes
Tuned: No
Variations: 89106, 89810
Weld-Up: No
with A.I.R. System: No
with EGR: No
Y-Pipe Included: No

Extended Information:

Emissions : CARB Eligible
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: ST
Dimension: 39 x 16.5 x 8.25 inches
Weight: 31 PG
