HP10151 (Basic) 24V HP325 Series Air Compressor Kit (Replacement Kit)

Pacbrake's HP325 series Pacbrake air compressors have a 33% duty cycle (20 minutes @ 100 psi), deliver 1/4 horsepower and are offered in both 12 (HP10142) and 24 VDC (HP10151). This Basic Air compressor kit comes with 24 VDC compressor and required hardware.

Pacbrake's HP325 Series Air Compressors have a 33% duty cycle (20 minutes @ 100 psi) and are offered in both 24 VDC (HP10151) and 12 VDC (HP10142).

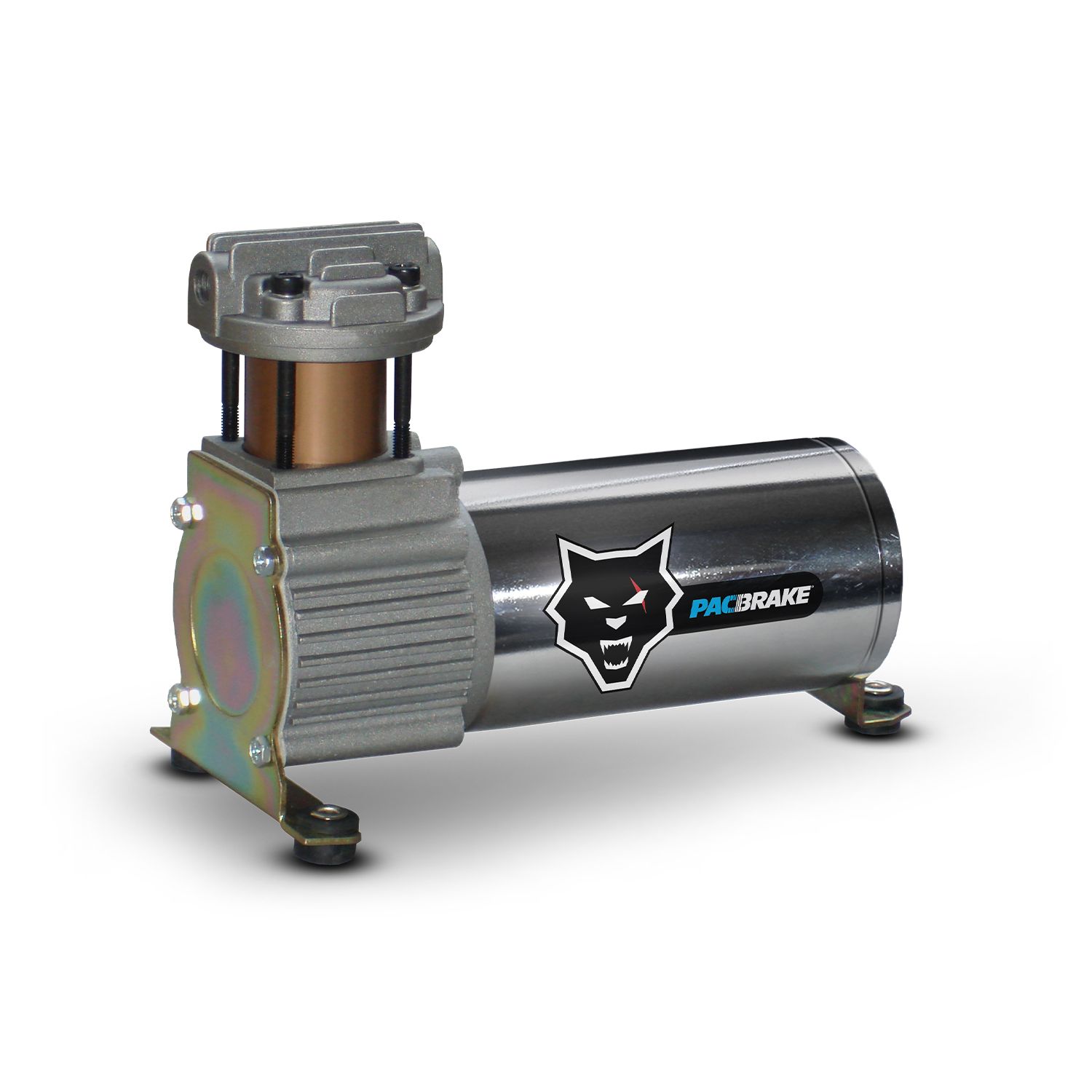

These 1/4 horsepower compressors have an oil-less design, sealed bearings, a PTFE piston ring, a copper wire wound permanent magnet motor and a hard anodized aluminum sleeve.

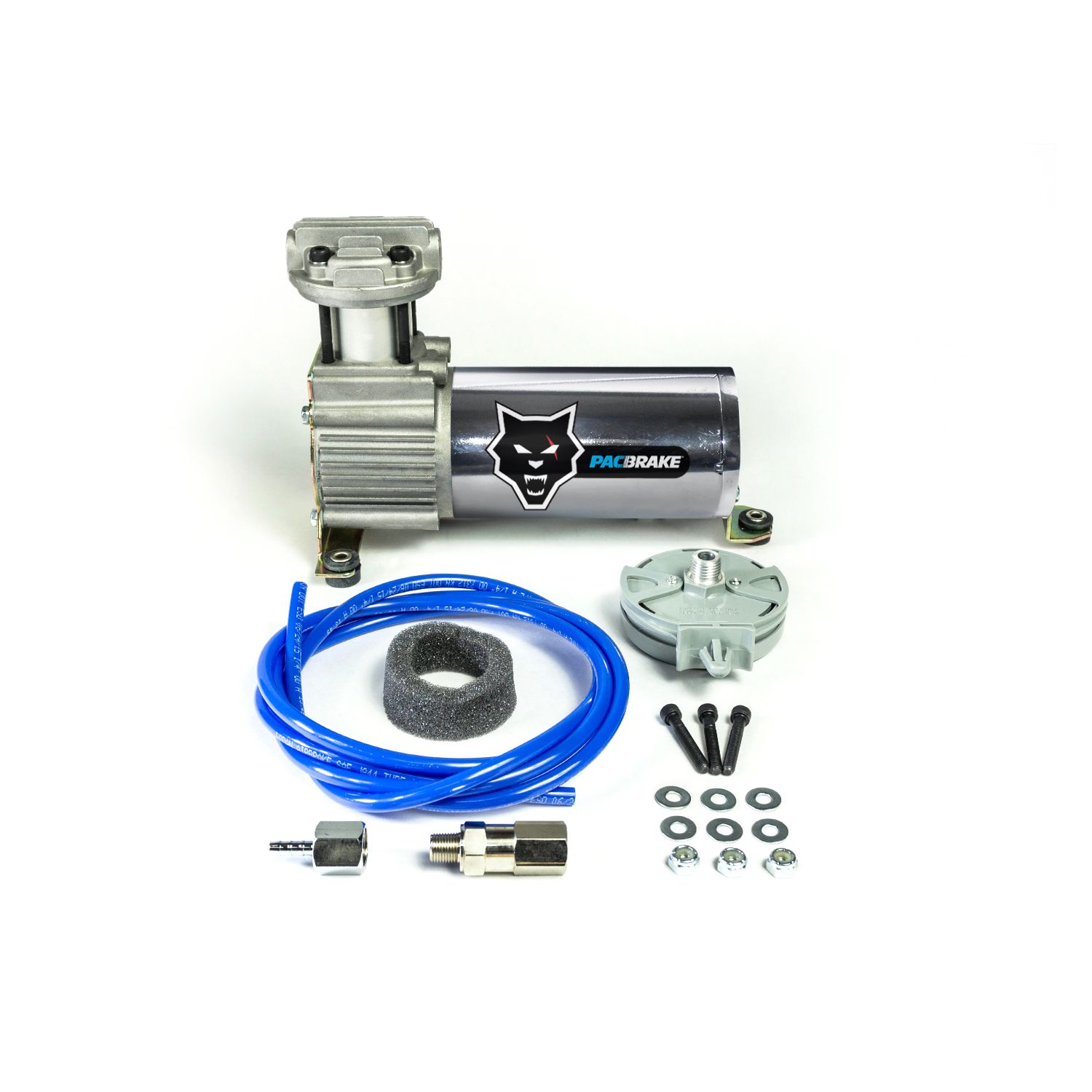

Kit Details:
Basic / Replacement 24 VDC HP325 Series Air Compressor Kit – Chrome finish
Includes installation hardware only
Does not include any pre-built harnesses

HP325 Series Compressor Specifications
8.7 inch x 4 inch x 6.2 inch (LxWxH)/221mm x 102mm x 158mm
5.5 lbs/2.49kg

Additional Attributes:

GTIN: 00628480000602
Compressor Weight: 5.5
Duty Cycle: 33%
Hardware_Included: Yes
Horsepower: 1/4
Max Working Pressure: 150
Prop 65 Y/N: Y
Volts: 24

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1
Package UOM: KT
Dimension: 10 x 8 x 6 inches
Weight: 7 PG

PDF:

L5753[1]
