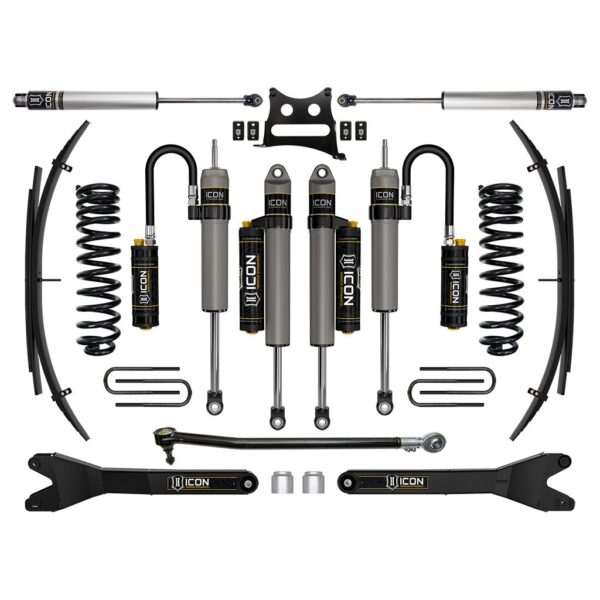

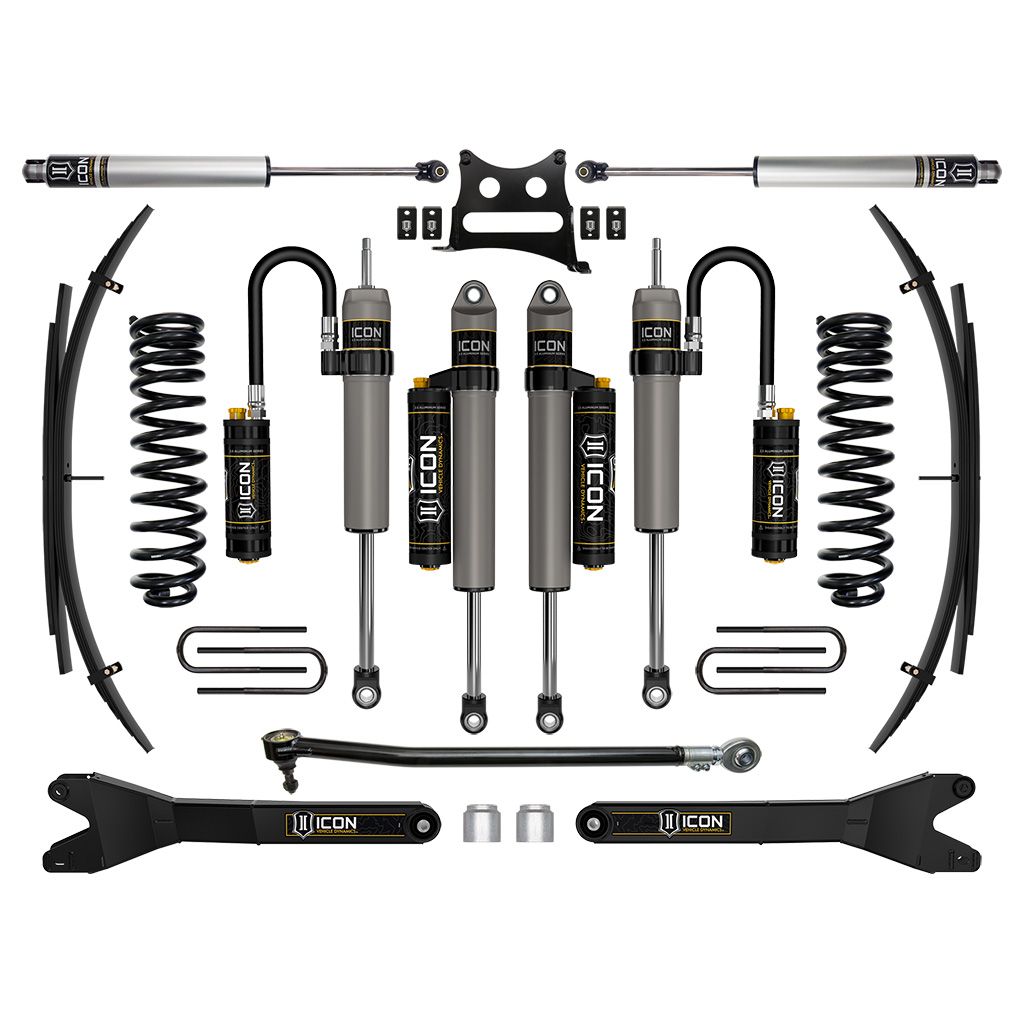

ICON 17-19 Ford F250/F350 4WD, 2.5″ Lift, Stage 6 Suspension Sys w/ Leaf Spring

$13,128.19

ICON 2.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

ICON engineered dual rate coil springs provide 2.5” of front lift over stock
Lifetime guarantee that springs won’t sag or break
No drive shaft modifications required
Shocks are fully rebuildable and re-tunable
100% Bolt-on system – no drilling, cutting or welding necessary for install
Vehicle specific tuned remote reservoir front and piggyback reservoir rear 2.5 Aluminum Series shocks
Front and rear shocks equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
On-vehicle adjustable track bar for optimum front axle centering and minimal deflection
Dual steering stabilizer kit for smooth wheel control while driving
Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
Leaf spring expansion packs and blocks for more compliant ride quality and reduced axle wrap
Increased wheel travel and improved ride quality over stock with no change in towing capacity
Less body-roll than stock

SKU: FRDK-K62516L Category: Kit de levage de suspension Brands: ICON Vehicle Dynamics

This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Their on vehicle caster adjustment allows for proper caster while eliminating the need for caster bushings or drop brackets. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Additional Attributes:

GTIN: 00840103423098
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dual Rate Coil Springs: Yes
Front Spring Rate Type: Progressive Dual Rate
Maximum Lift Front: 2.5
Maximum Lift Rear: 2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ x 12.50″ tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
