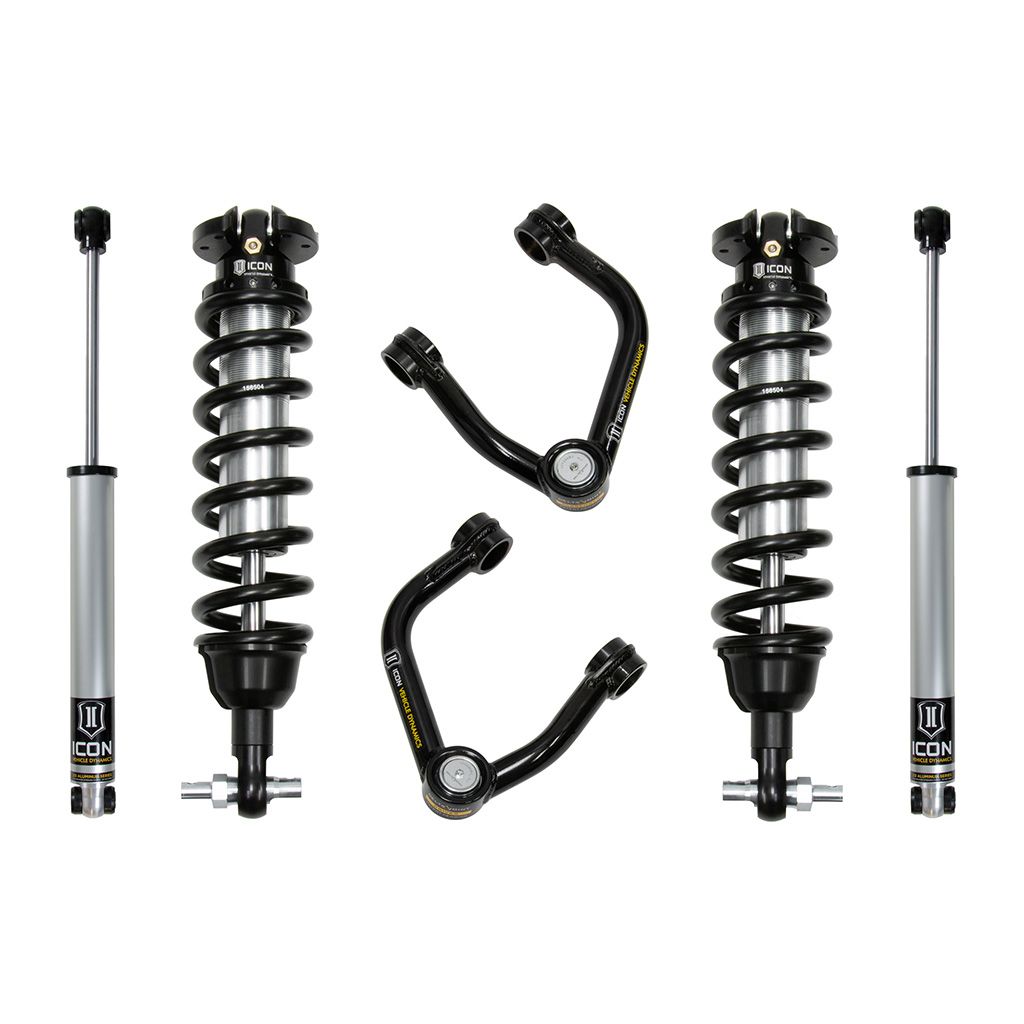

ICON 19-21 Ford Ranger, 0-3.5″ Lift, Stage 2 Susp System, Tubular UCA Al Knuckle

$4,906.81

ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Height-adjustable coilovers provide a range of 0-3.5” of front lift height
ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
Delta Joint ball joints carry ICON’s exclusive 5 year limited warranty
Direct bolt-in design makes for a simple and straightforward installation
Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect
Fits 2WD & 4WD applications
Increased lift height allows for fitment of larger and more aggressive tires
35% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
Corrosion resistant anodized shock body with 5/8″ shaft (2.0 Aluminum Series shocks)
Corrosion resistant CAD plated shock body with 7/8″ shaft (2.5 Series coilovers)
FK Rod End bearings provide extended longevity and minimal deflection
Shocks are fully rebuildable and revalvable

SKU: FRDK-K93202TA Category: Suspension Lift Kit

This system features tubular steel upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103422404
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Front Spring Rate Type: Linear
Maximum Lift Front: 3.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″x11.25″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
