ICON 19-23 GM 1500, 2.375-3.75" Lift, Stage 3 EXP Suspension System, Tubular

ICON 19-23 GM 1500, 2.375-3.75″ Lift, Stage 3 EXP Suspension System, Tubular

$5,272.16

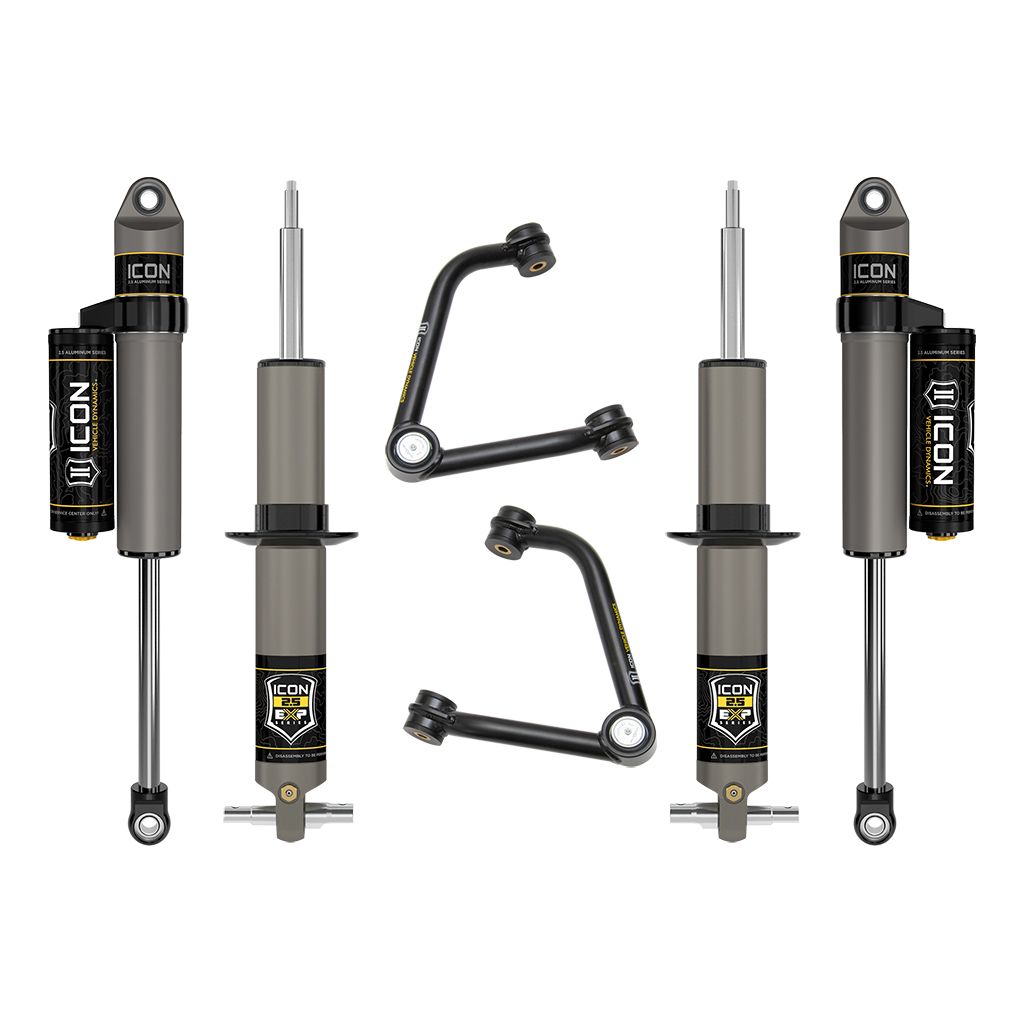

Stage 3 includes a pair of 2.5 EXP Series coilovers for 2.375-3.75” of front lift, improved performance, and 35” tire fitment. Tubular UCAs improve alignment and 2.5 Series rear shocks to balance the tuning from front to rear.

Vehicle specific design for 2019-2023 GM 1500 pickups
All ICON shock absorbers are fully rebuildable and re-tunable
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 2.375-3.75” of front lift over stock with the use of snap ring (lift heights vary slightly depending on trim/engine)
One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
7/8” diameter induction hardened, chrome plated shock shaft with inverted shaft-up design
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature ICON’s Patented Delta Joint (U.S. Patent No. 10,731,700)
2.5 Aluminum Series rear piggyback reservoir shocks provide increased performance and balanced tune with coilovers
CNC machined 6061 aluminum components with a black anodized finish

SKU: FRDK-K73073T Category: Kit de levage de suspension Brands: ICON Vehicle Dynamics

Rounding out the Stage 3 EXP suspension system are 2.5 Aluminum Series rear shocks specially tailored for the 2019-2023 GM 1500. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Piggyback reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Silverado 1500 or Sierra 1500.

Additional Attributes:

GTIN: 00840103421599
Bushings Included: Yes
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191011 – TUBULAR UCA BILLET CAP SET
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Maximum Lift Front: 3.75
Minimum Lift Front: 2.375
