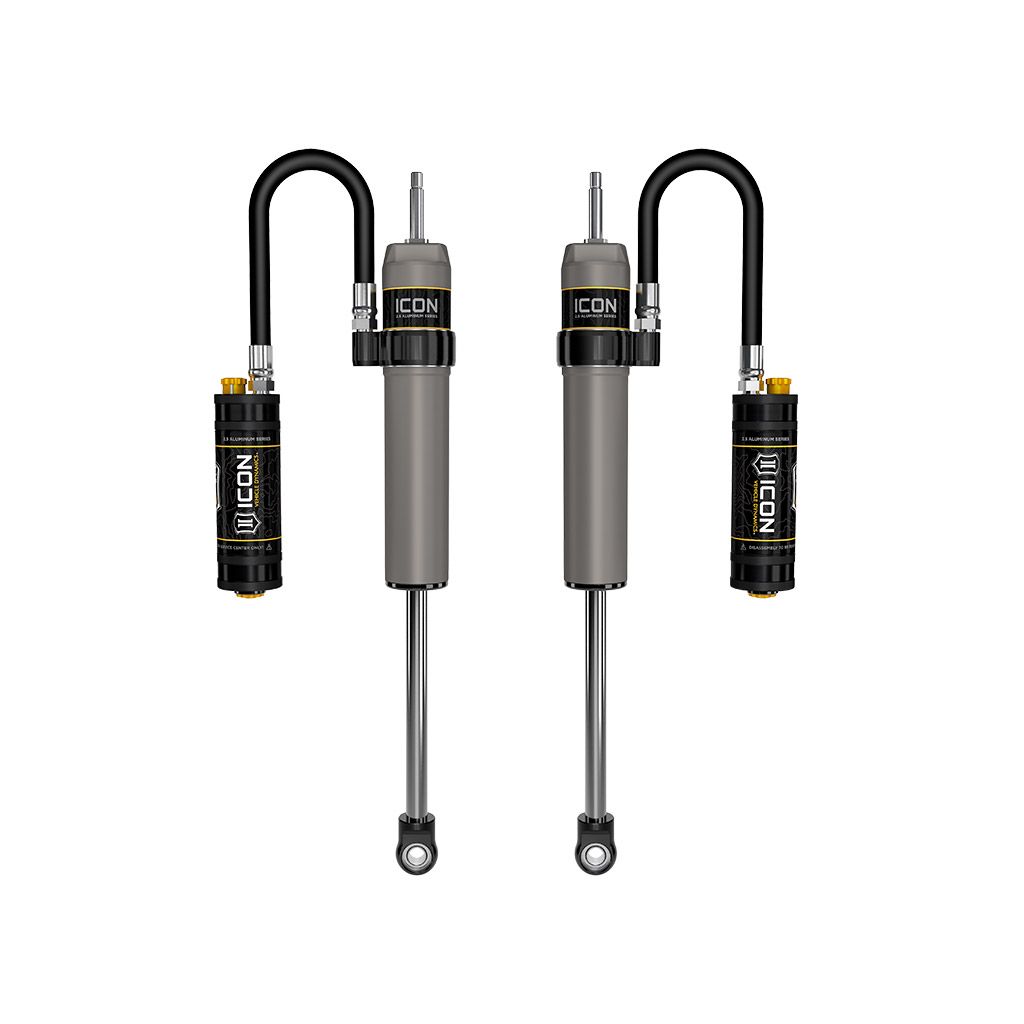

ICON 1991-2007 Toyota Land Cruiser 80/100 Series, 4-6” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir w/ CDCV, Pair

$2,501.47

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
PTFE lined spherical bearings and application specific mounting hardware
100% Rebuildable
100% Revalveable
Nitrogen charged monotube design with piggyback reservoir
6061 aircraft grade aluminum CNC machined components
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
7/8” diameter induction hardened, chrome plated shock shaft
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
ICON’s CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

SKU: FRDK-57804CP Category: Jeu d'amortisseurs de suspension

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Additional Attributes:

GTIN: 00840103403458
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: NO
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: EYELET
Upper Mount Type: Stem
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.25
Includes Bump Stop: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Adjustment Type: Manual
Damping Type: Oil
External Reservoir: Yes
Reservoir Type: Remote
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Valving Type: Digressive

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 15.0000 x 9.0000 inches
Weight: 33.0000 PG

PDF:

I57804CP_REVA

Weight	14.97 kg
Dimensions	39.0000 × 15.0000 × 9.0000 cm
