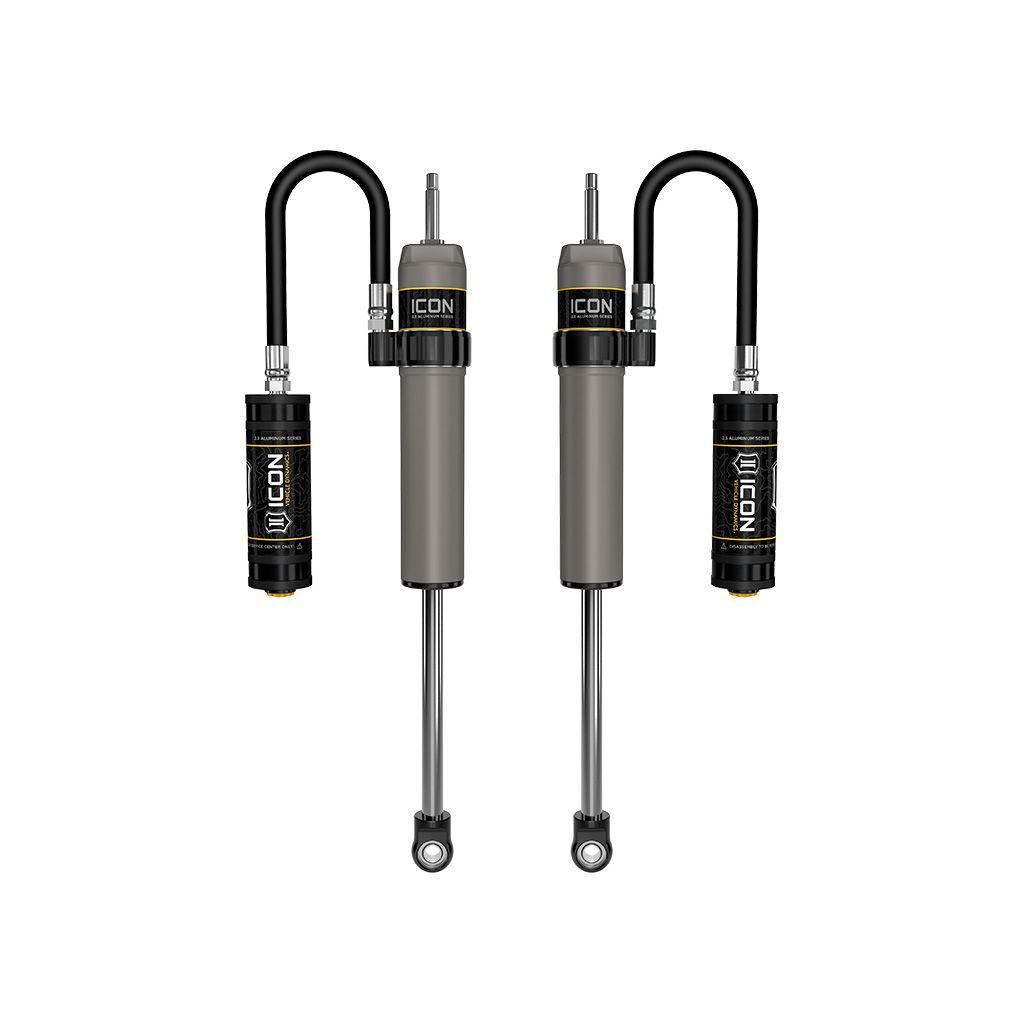

ICON 1996-2002 Toyota 4Runner, 0-2″ Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Remote Reservoir, Pair

$2,050.82

ICON VS 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. They feature remote reservoirs and are 100% rebuildable/revalveable.

ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
100% Rebuildable
100% Revalveable
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
PTFE lined spherical bearings and application specific mounting hardware
7/8” diameter induction hardened, chrome plated shock shafts
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

SKU: FRDK-57800P Category: Jeu d'amortisseurs de suspension

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Additional Attributes:

GTIN: 00840103403380
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: NO
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: EYELET
Upper Mount Type: Stem
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.25
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
External Reservoir: Yes
Reservoir Type: Remote
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Valving Type: Digressive

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 10.0000 x 9.0000 inches
Weight: 25.0000 PG

PDF:

I57800P_REVA

Weight	11.34 kg
Dimensions	39.0000 × 10.0000 × 9.0000 cm
