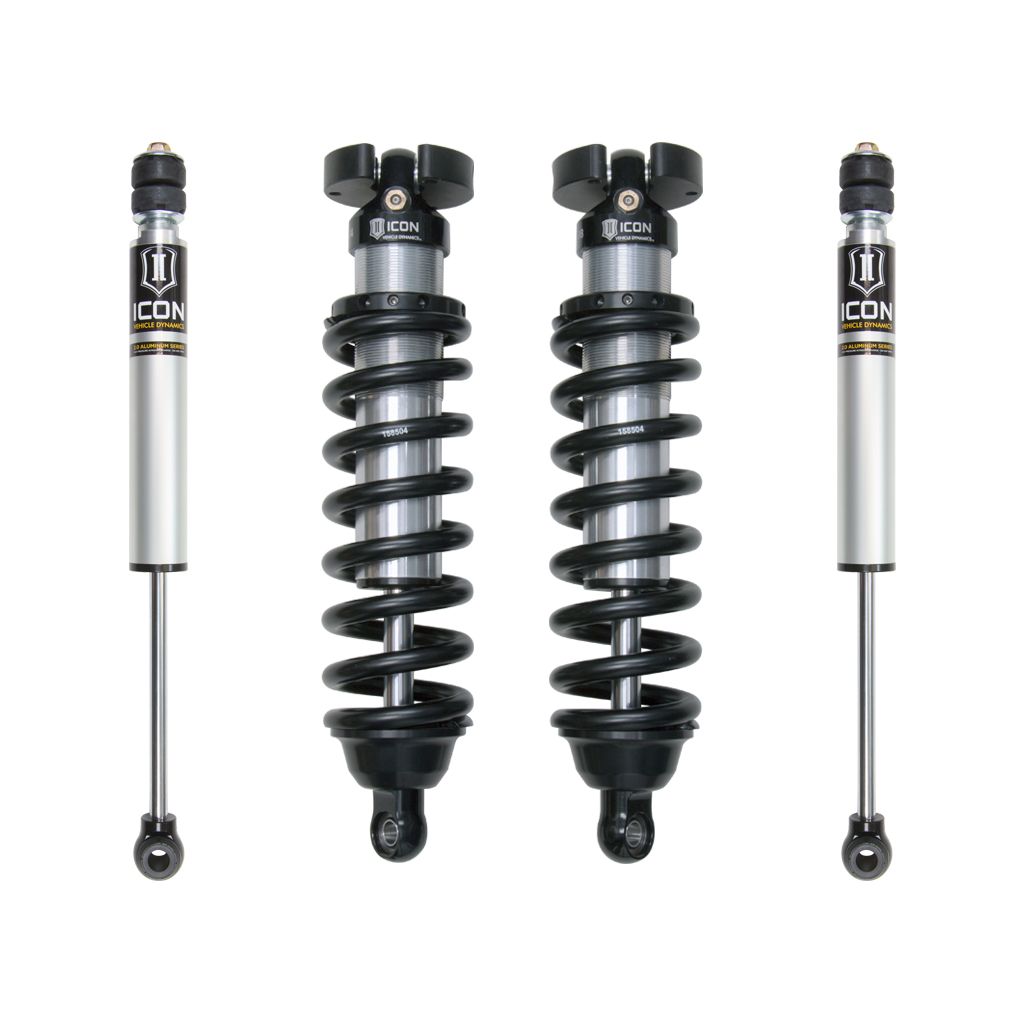

ICON 1996-2002 Toyota 4Runner, 0-3″ Lift, Stage 1 Suspension System

$3,222.53

ICON 4Runner suspension systems are designed with maximum performance and the serious driver in mind. ICON'S primary focus is increased wheel travel and damping ability, translating into outstanding control and ride quality on and off-road.

Increased wheel travel and ride quality over stock
Decreased body roll
Vehicle-specific tuned front and rear shocks provide superior damping and control
Coilovers are adjustable from 0-3″ of lift height
Shocks are fully rebuildable and revalveable
Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
FK Rod End bearings for extended longevity and minimal deflection
CNC machined 6061 aircraft-grade aluminum components
Bolt-on design makes for straightforward install

SKU: FRDK-K53131 Category: Kit de levage de suspension Brands: ICON Vehicle Dynamics

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor decades ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 1 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks. These components feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while increasing overall performance in the dirt.

Additional Attributes:

GTIN: 00840103417325
Spring Rate: 650
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 158508 – COIL SPRING 1400.0300.0700 BLACK
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Maximum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Emulsion
Rear Shock Body Diameter: 2
Recommended Aftermarket Tires: 33″ x 11.25″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
