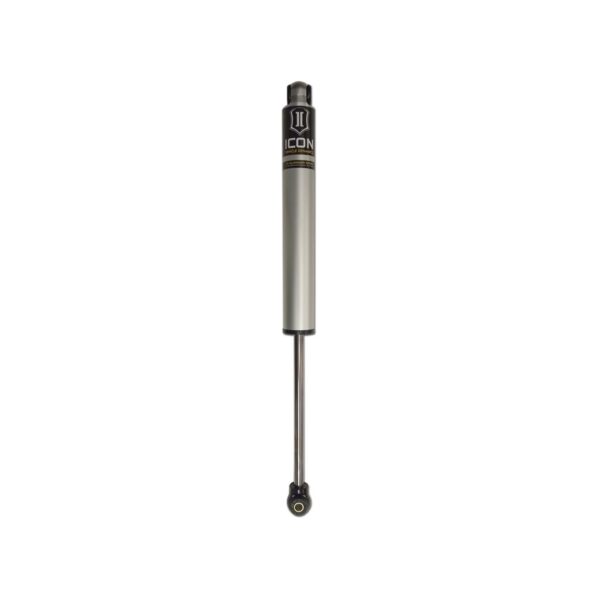

ICON 1996-2004 Toyota Tacoma, 0-1.5″ Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Non-Reservoir

$330.16

ICON VS 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Shocks are vehicle specific, 100% rebuildable, and 100% revalveable.

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% revalveable
Nitrogen charged monotube design with internal reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
100% rebuildable

SKU: FRDK-56502 Category: Amortisseur de suspension Brands: ICON Vehicle Dynamics

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable.

Additional Attributes:

GTIN: 00840103403021
Valving Type: Digressive
Adjustable Compression: No
Adjustable Ride Height: No
Self-Leveling: No
Active or Passive Suspension: Passive
Maximum Ride Height Raising Distance: 1.5
Rod Diameter: .625
Body Color: Gray
Color: Black
Finish: Anodized
Shaft Material: Chrome
Mounting Hardware Included: No
Cylinder Outside Diameter: 2
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Lower Mount Type: EYELET
Upper Mount Type: EYELET
Boot Included: NO
Gas Charged: Yes
Cylinder Color: Gray
Body Diameter: 2
Body Material: Aluminum
Adjustable Rebound: No
Dust Shield Included: No
Internal Rebound Spring: No
Coil Spring Insulator(s) Included: No
Includes Bump Stop: No
Hydraulic Lockout: No
Shock Absorber Bore Size: 1.75
Internal Rebound Bumper: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 614700 – 2.0 SHOCK BOOT KIT (EACH)
Adjustable Damping: No
Attributed Description: ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 12.975 IN; Fully Open Length: 21.80 IN; Shock Stroke: 8.82 IN; Travel Length: 8.82 IN
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: NO
Configuration: Performance
Cylinder Finish: Anodized
Cylinder Material: Aluminum
Damping Type: Oil
Dust Boot Included: No
Dust Shield: NO
External Reservoir: No
Material: Aluminum
Quantity: 1
Remote Reservoir: NO
Reservoir Type: Emulsion
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Suspension Type: Spring
