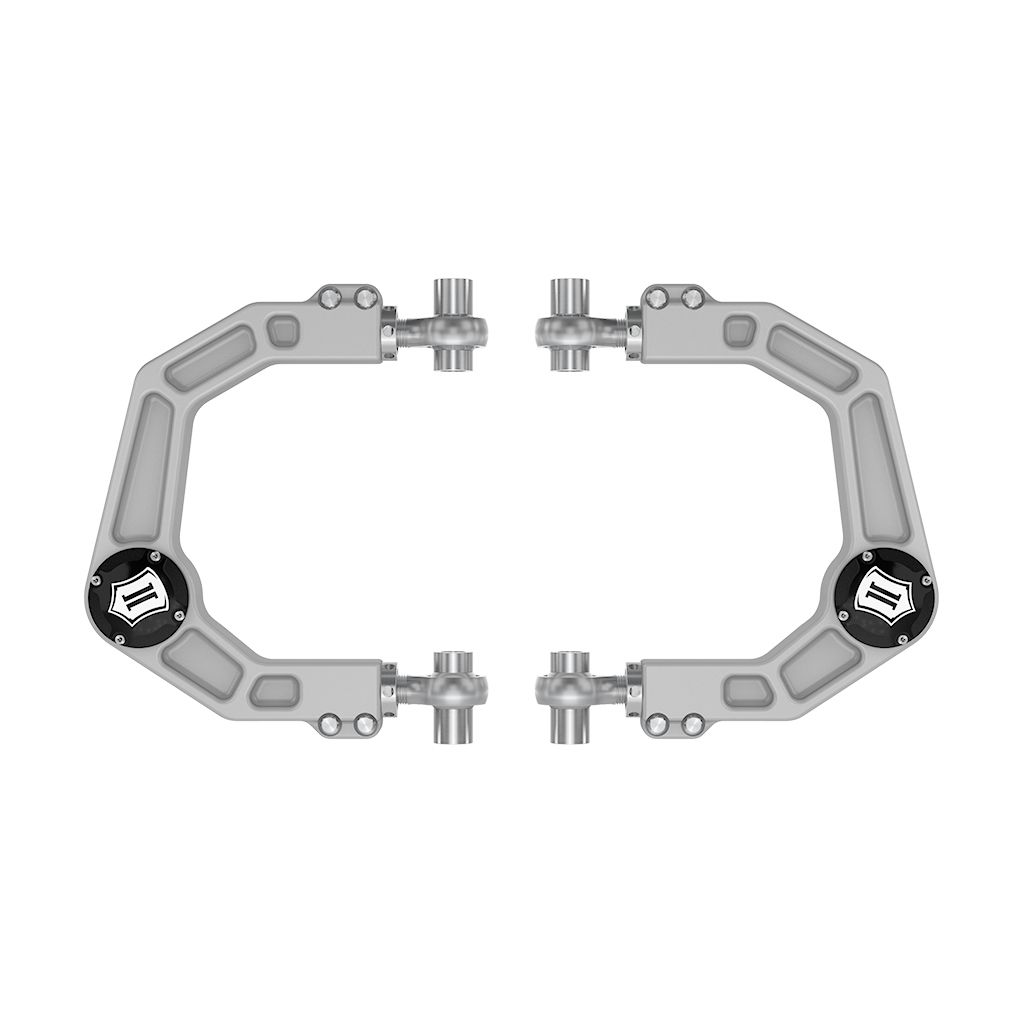

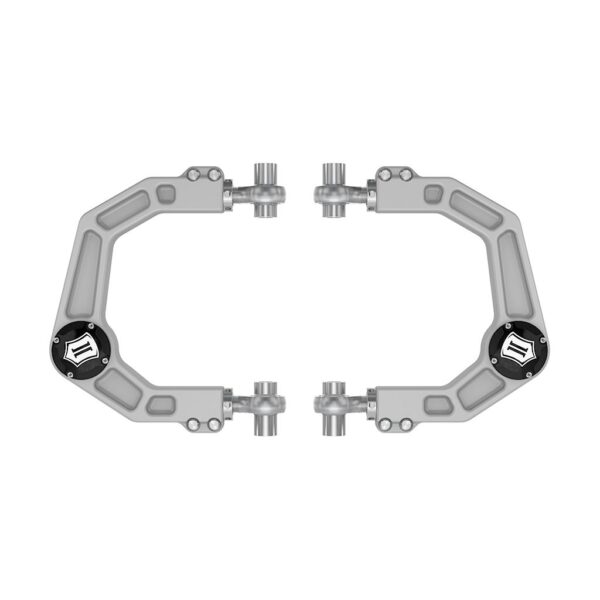

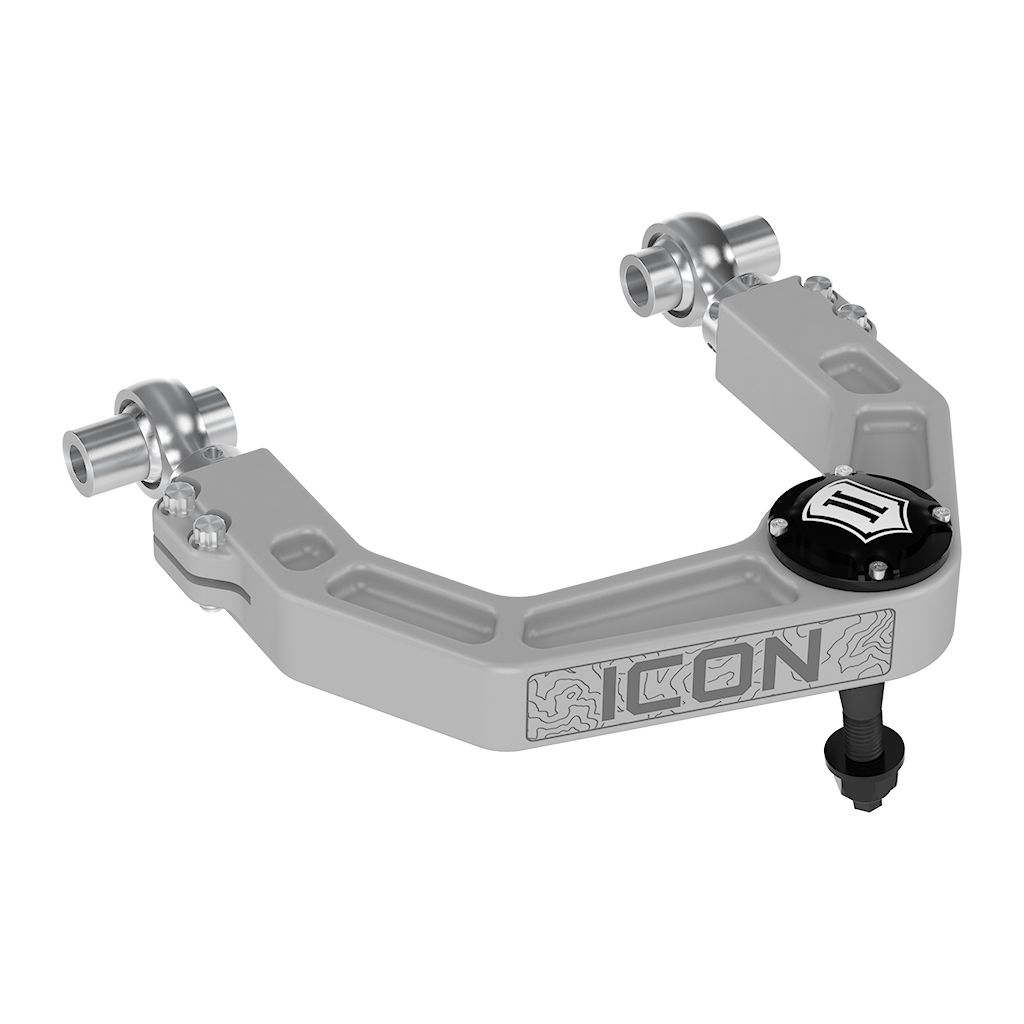

ICON 1996-2004 Toyota Tacoma/1996-2002 Toyota 4Runner, Billet Upper Control Arm w/ Delta Joint Kit

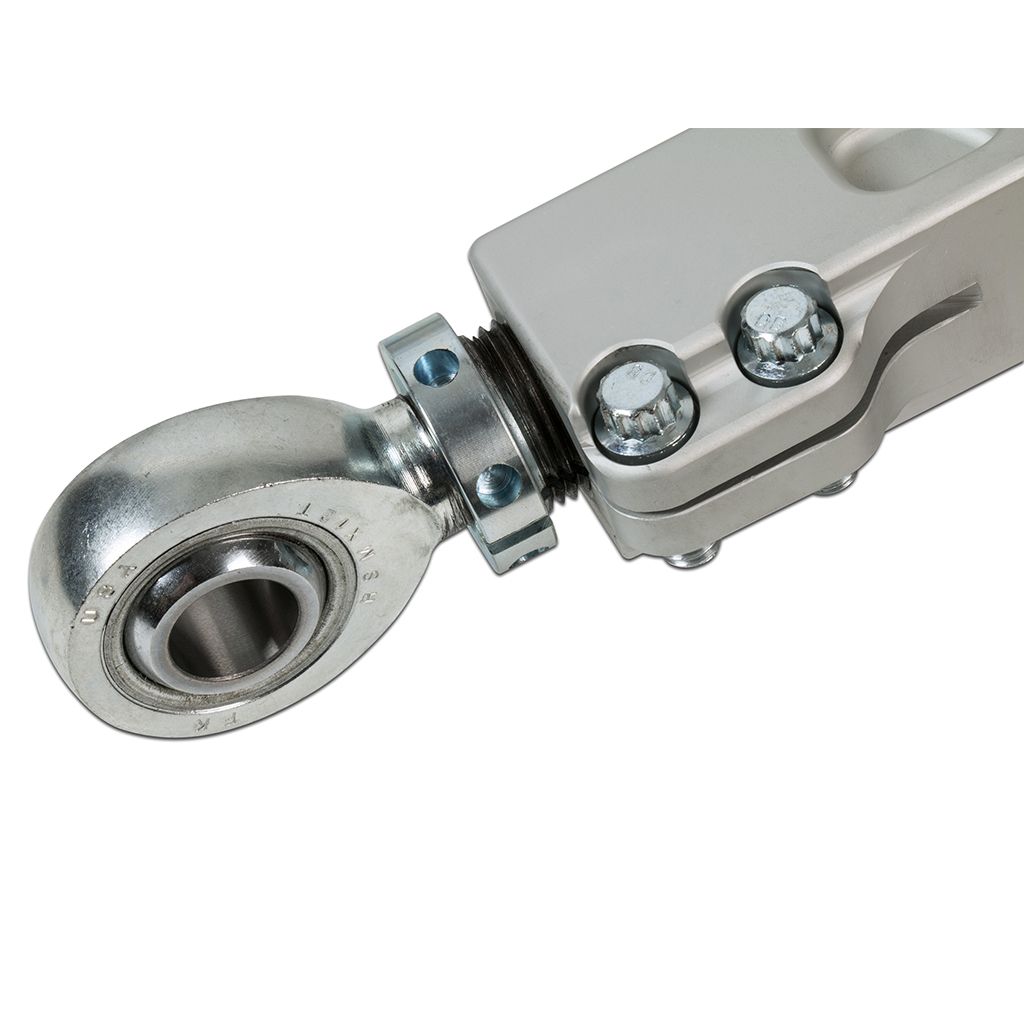

Take the performance of your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner to new levels with the ICON Vehicle Dynamics Delta Joint billet aluminum upper control arm kit. All ICON billet upper control arms are constructed from CNC machined 6061 aluminum and then finished in a matte anodization process for maximum strength and corrosion resistance. ICON billet aluminum upper control arms feature quality PTFE-lined rod ends and machined adjuster sleeves that allow for on-vehicle alignment adjustment and precision caster and camber tuning. Another major benefit of ICON upper control arms is the potential for increased wheel travel when paired with our extended travel coilovers. The additional droop travel provided by these components translates into superior performance and ride quality for your 1996-2004 Toyota Tacoma or 1996-2002 Toyota 4Runner. These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103431314
Pre-Assembled: Yes
Set: Yes
Reinforced: Yes
Pre-Greased: No
Grease Fitting Included: yes
Suspension Grade Type: Performance
Bushings Included: yes
Ball Joint Mounting Type: Press In
Ball Joint Stud Type: Threaded
Ball Joint Included: Yes
Control Arm Material: Aluminum
Attachments Included: No
Mounting Hardware Included: yes
Grade Type: Performance
Adjustable: Yes
Control Arm Color: Gray
Bushing Material: Rod End Bearing
Mounting Bracket Included: No
Suspension Type: Spring
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Control Arm: Yes
Bushing Color: Gold
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Color: Gray
Construction: Billet
Control Arm Construction: Billet
Finish: Anodized
Material: Aluminium
OEM Wheels & Tires Fitment: Yes
Quantity: Pair
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Service Parts: 614520 – DELTA JOINT INSTALL ADAPTER AND SHIM

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 16.0000 x 12.0000 x 8.0000 inches
Weight: 17.0000 PG

PDF:

I58500DJ_REVA
