ICON 1998-2007 Toyota Land Cruiser/Lexus LX470, 0-3″ Lift, Stage 2 Suspension System

$4,064.83

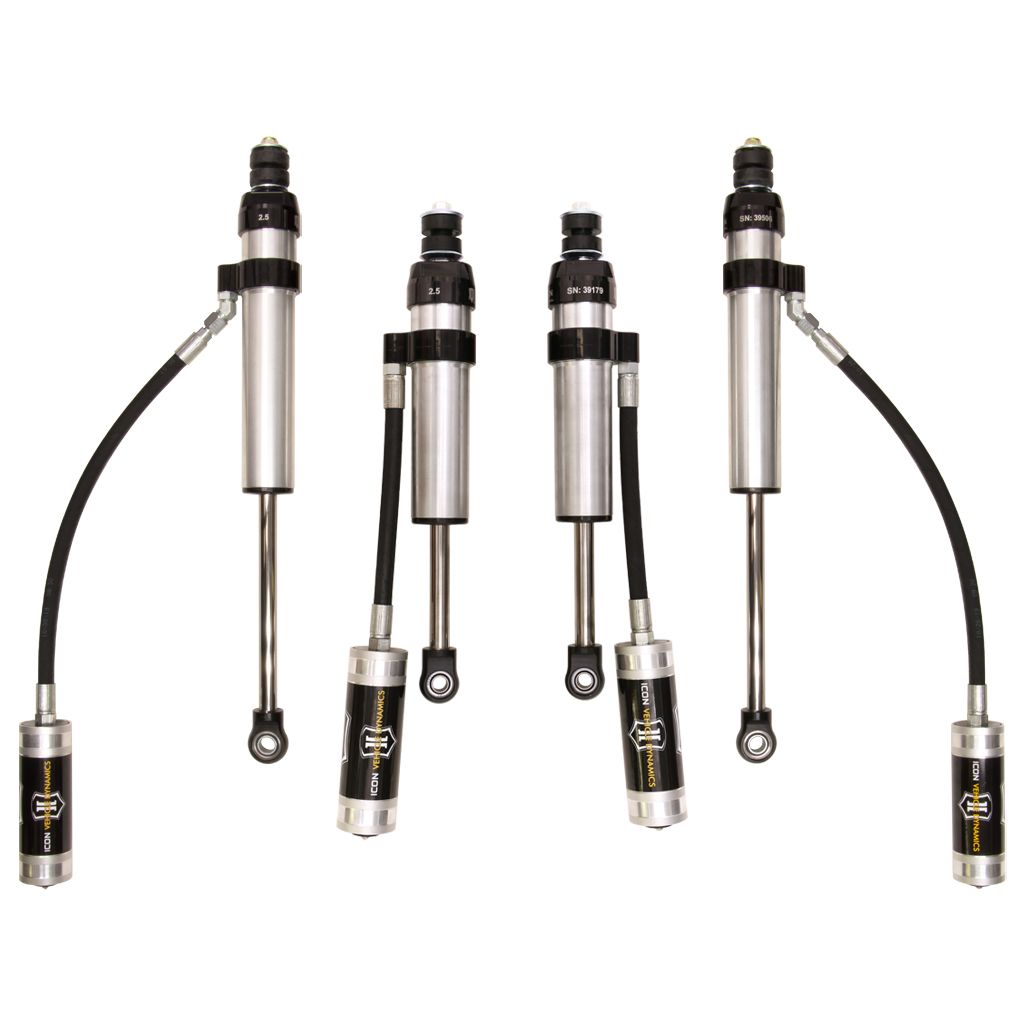

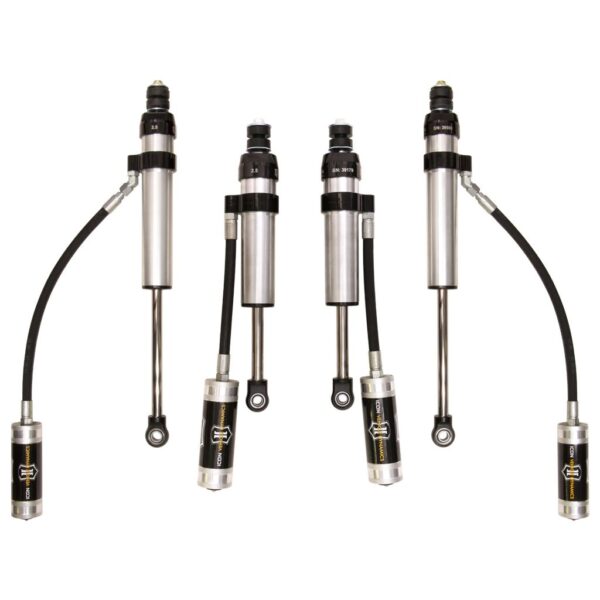

ICON 2.5” suspension systems lift your Toyota LC100 while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Vehicle specific tuned 2.5″ front and rear shocks for superior shock damping and control
Remote reservoirs provided for extended shock damping performance
6061 Aircraft grade aluminum CNC machined components
2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
FK rod end bearings for extended longevity and minimal deflection
No cutting or welding necessary for install

SKU: FRDK-K53082 Category: Suspension Shock Absorber Kit

The 1998 – 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.

Additional Attributes:

GTIN: 00840103417165
Shaft Material: Chrome
Cylinder Diameter: 2.5
Damping Type: Oil
Cylinder Material: Aluminum
Grade Type: Performance
Lower Mount Type: Eyelet
Upper Mount Type: Stem
Shaft Diameter: 0.875
Cylinder Color: Silver
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged: Yes
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: 17×8.5″ w/ 4.75” Backspace / 0mm Offset
