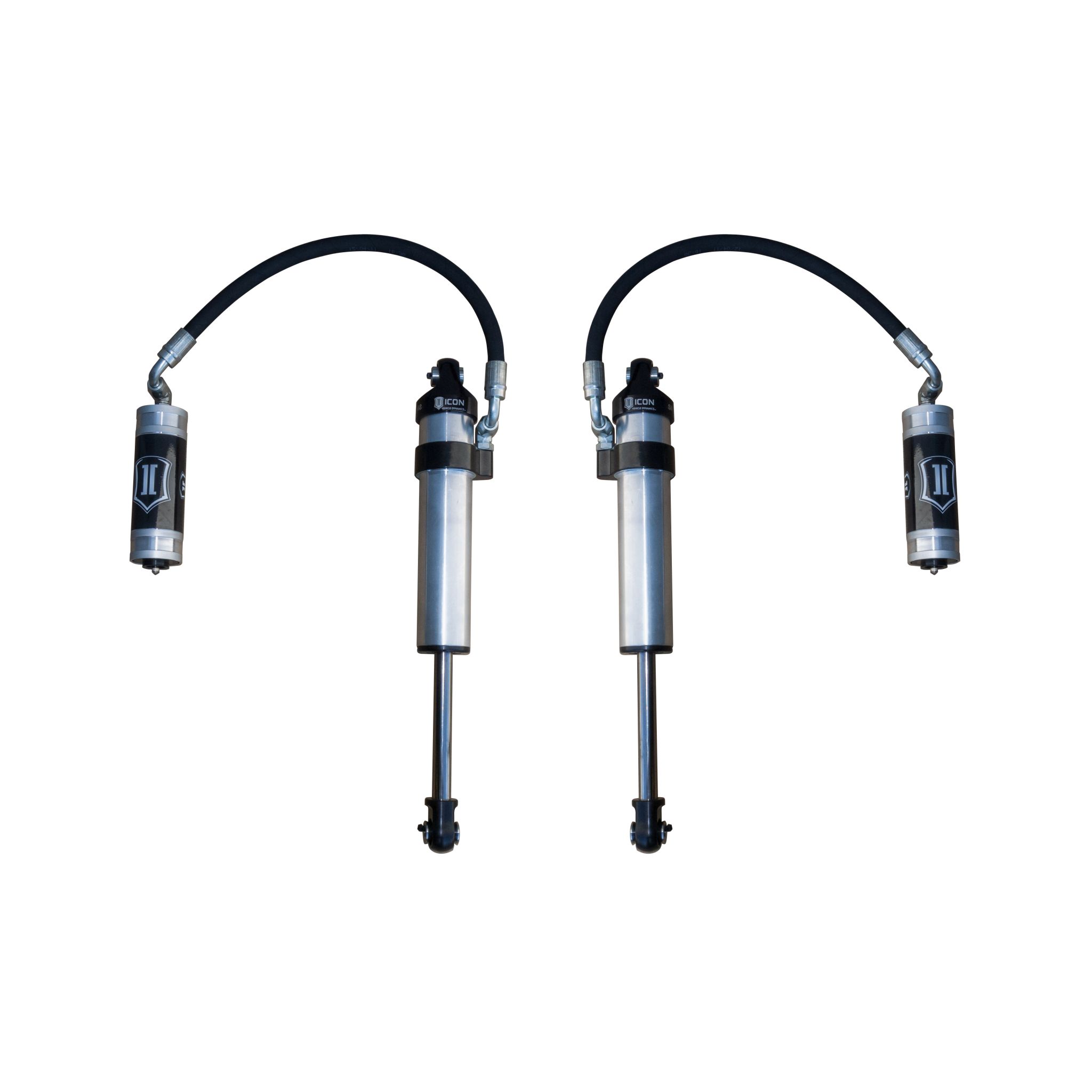

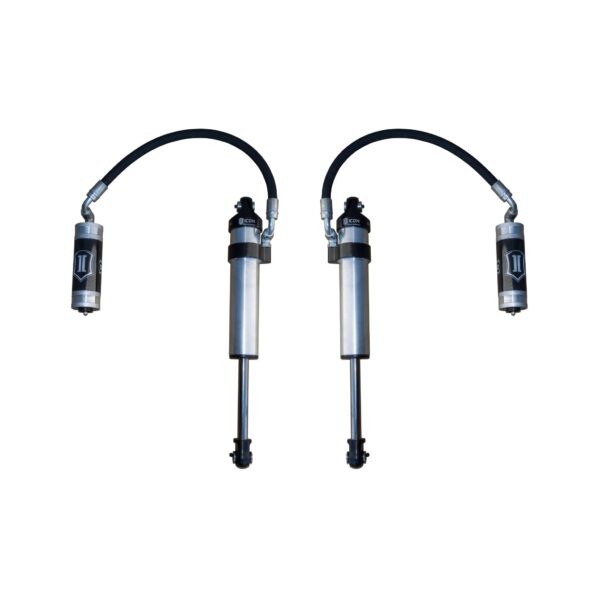

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) or the Omega Series bypass shocks.
Additional Attributes:
GTIN: 00840103404639
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: No
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Center of Eylet
Lower Mount Type: EYELET
Upper Mount Type: EYELET
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.25
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252008 – 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Adjustable Damping: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
External Reservoir: Yes
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 27.0000 x 12.0000 x 6.0000 inches
Weight: 30.0000 PG
