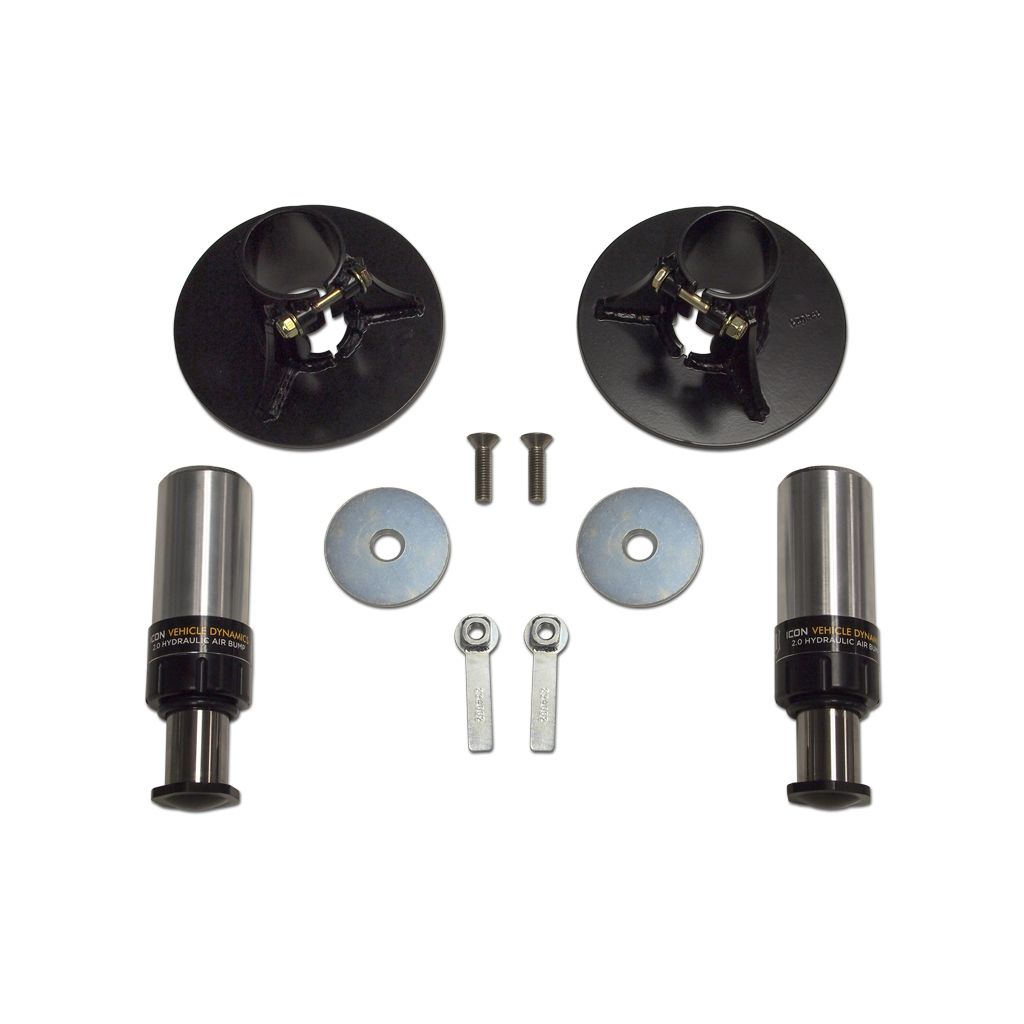

ICON 2003-2024 Toyota 4Runner/2007-2014 FJ Cruiser/2003-2023 Lexus GX, Rear Air Bump Kit

$1,820.90

Vehicles equipped with the ICON hydraulic bump stop kit will have an increased bottom-out resistance over stock, reduces rear-end “kick”,as well as an improves drivability off-road.

Hydraulic / pneumatic bumpstop increases bump energy capacity
Urethane rod seal and wiper for long service life
User serviceable
Velocity sensitive bumpstop increases the amount of energy absorbed the faster it is hit
Reduces rear end kick and improves overall performance
Increased bottom resistance over stock
No loss in travel
Easy installation inside coil
Pre-tuned for most users
Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
CAD Plated body for corrosion free service

SKU: FRDK-56104 Category: Suspension Bump Stop

ICON Vehicle Dynamics now offers a bolt-in hydraulic bump stop Kit for the 2007-2014 Toyota FJ Cruiser AND 2003-2024 4Runner. This kit reduces rear-end “kick” and helps to improve the overall off-road performance of the vehicle. The OEM rubber bumpstops have a limited energy absorption capacity that is released rather uncontrollably upon rebound, resulting in a harsh ride and ill-handling vehicle in rough terrain. The ICON hydraulic bump stops are velocity sensitive which means that the amount of energy absorbed increases the faster they are engaged, so those harsh g-outs and square edges are less likely to interrupt your off-road adventures. Vehicles equipped with the ICON hydraulic bumpstop kit will have an increased bottom-out resistance over stock, as well as an improved drivability off-road. This kit installs easily inside the coil, and the bumpstops are fully rebuildable with the ability to be tuned for a custom ride. With a simple installation, proven effectiveness, and no loss in travel there is no reason not to bolt up the ICON Vehicle Dynamics hydraulic bumpstop kit to your ride and experience the difference.

Additional Attributes:

GTIN: 00840103402963
Material: Aluminium
Color: Black
Mounting Hardware Required: No
Outside Diameter: 2
Grade: Performance
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Attachment Type: Bolt On
Bumper Material: Hydraulic
Bumper Type: Hydraulic
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Diameter: 2
Grade Type: Performance
Length: 1.75
Mounting Hardware Included: yes
Service Parts: 202004 – 2.0 AIR BUMP REBUILD KIT
Travel Length: 1.75
