ICON 2005-2023 Ford F-250/F-350 Super Duty 4WD, Front Lower Links
ICON 2005-2023 Ford F-250/F-350 Super Duty 4WD, Front Lower Links
ICON 2005-2023 Ford F-250/F-350 Super Duty 4WD, Front Lower Links
ICON 2005-2023 Ford F-250/F-350 Super Duty 4WD, Front Lower Links

ICON 2005-2023 Ford F-250/F-350 Super Duty 4WD, Front Lower Links

$1,931.26

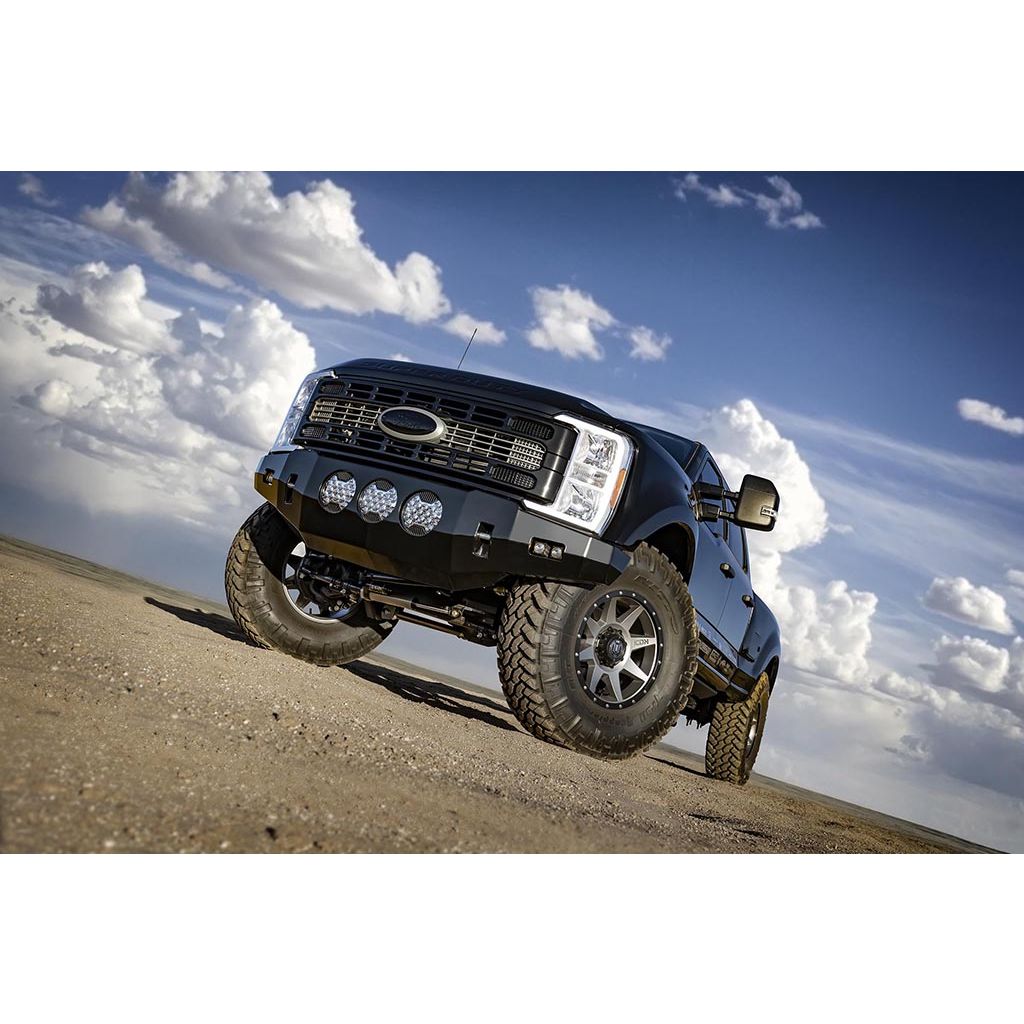

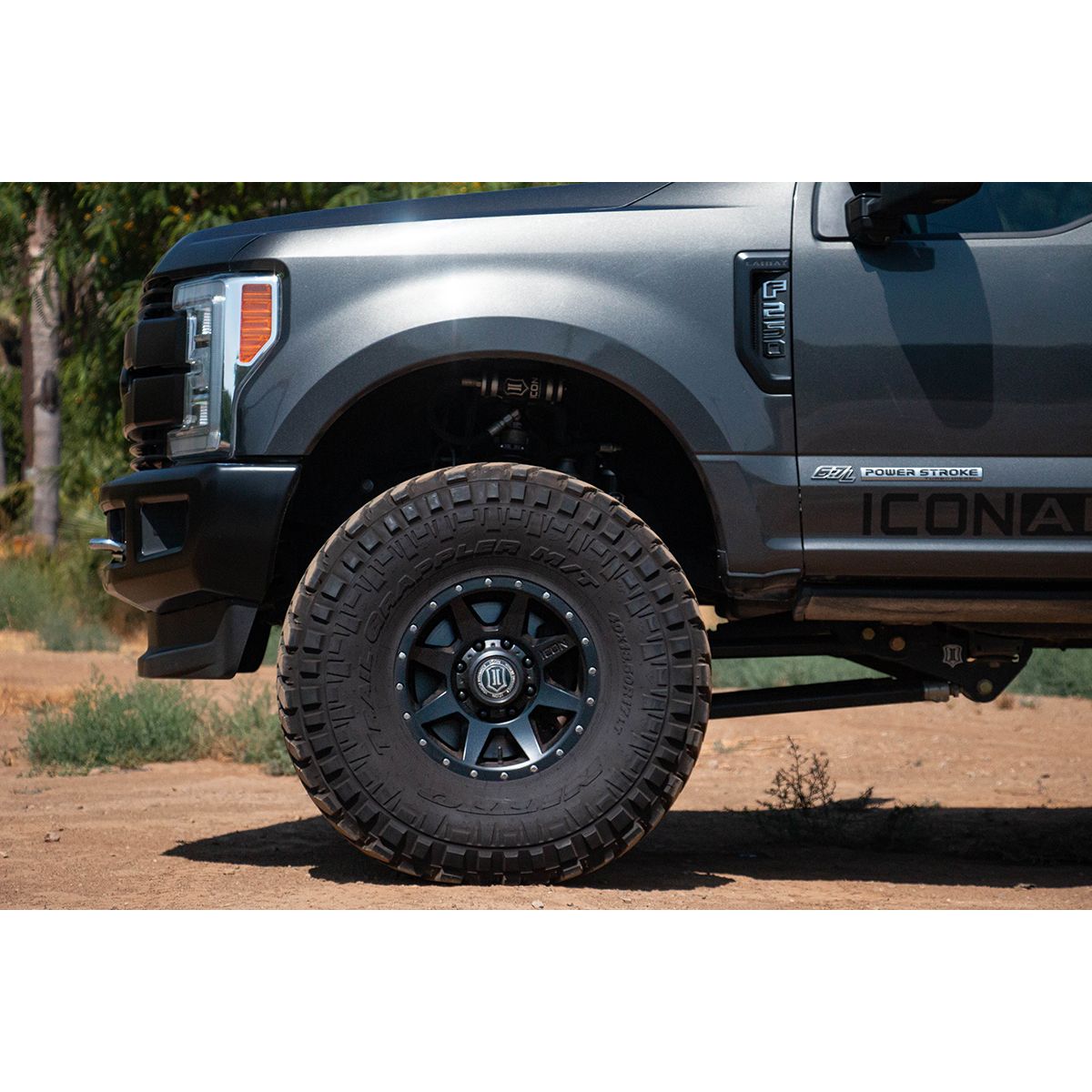

The ICON 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation and improves handling of the truck by maintaining consistent caster angles and eliminating bushing bind in the stock radius arms.

  • 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
  • Improves front end articulation and overall drivability
  • Allow on-vehicle caster adjustment via ICON double adjusters in lower links

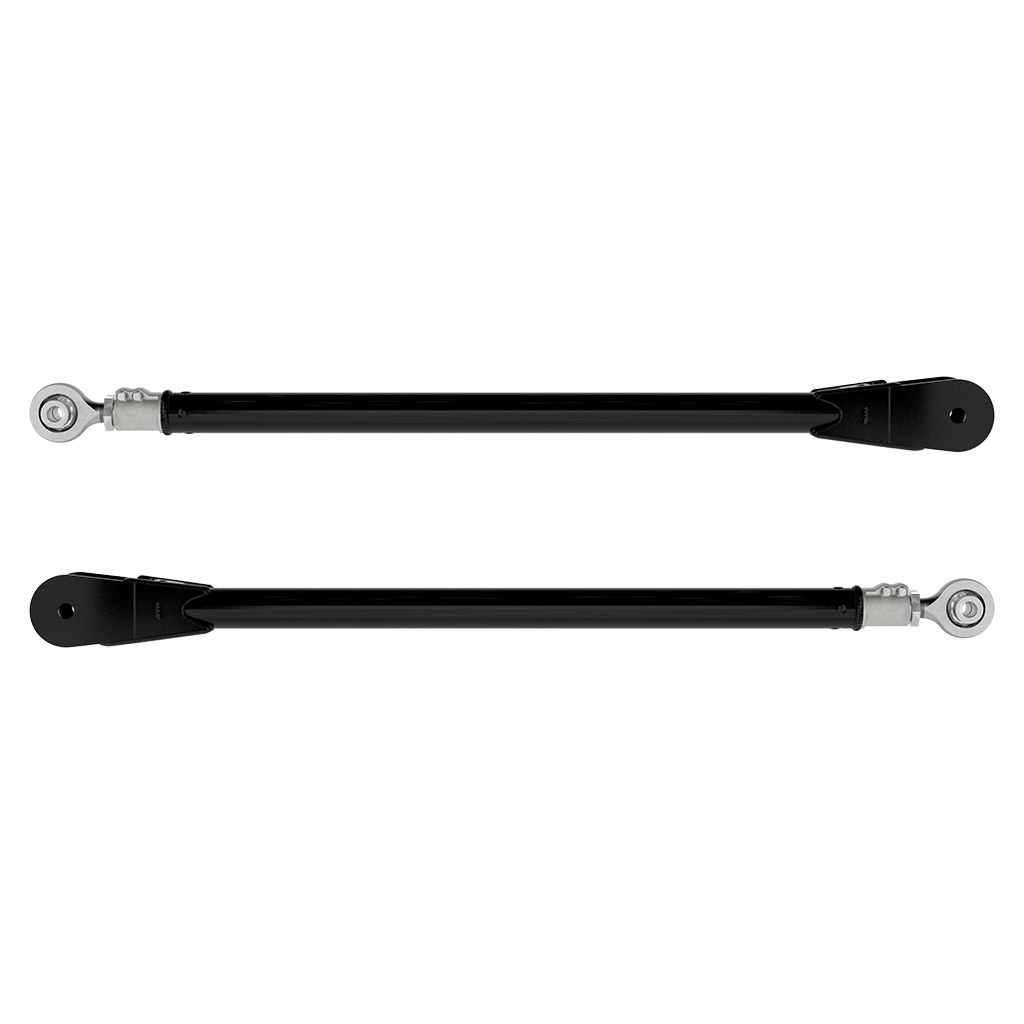

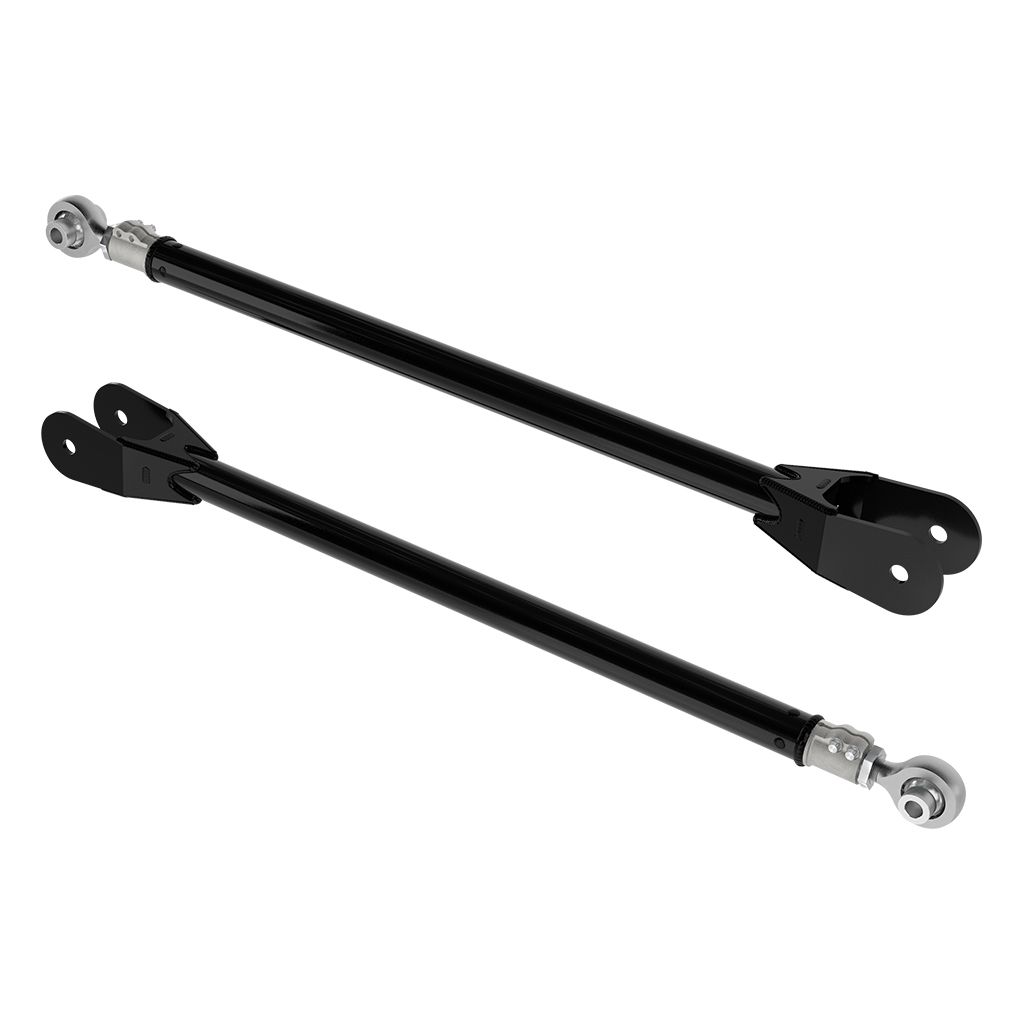

  • Lower links are constructed from CNC machined 2” x .188” wall DOM steel tubing
  • PTFE lined FK spherical bearings eliminate deflection
  • Corrosion resistant semi-gloss black powder coat finish
  • Fabricated components covered under ICON’s Limited Lifetime Warranty
SKU: FRDK-164502 Category:

The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.

Additional Attributes:

GTIN: 00840103408804
Material: DOM Steel
Color: Black
End 2 Type: Rod End Bearing
Grade Type: Performance
Adjustable: Yes
Bushing Material: Rod End Bearing
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 164500 – 05-10 FSD 4 LINK FRAME BRACKET KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Tubing Color: Black
Tubing Material: Steel

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 47.0000 x 8.0000 x 4.0000 inches
Weight: 45.0000 PG

Weight 20.41 kg
Dimensions 47.0000 × 8.0000 × 4.0000 cm
