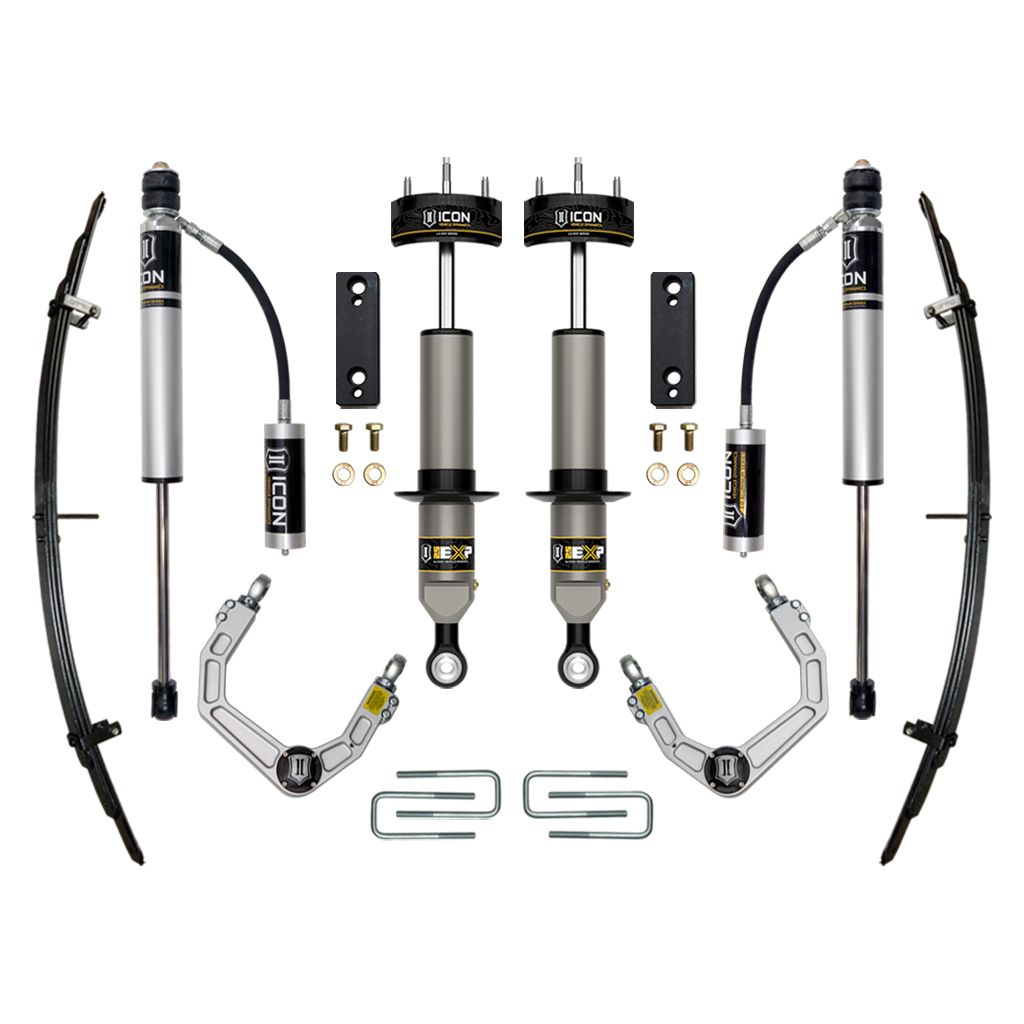

ICON 2005-2023 Toyota Tacoma, 0-2″ Lift, Stage 3 EXP Suspension System, Billet UCA

$5,753.46

The ICON EXP suspension system for the Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift for a proper stance and fitment of up to 33" tires.

Vehicle specific design for 2005-2023 Toyota Tacoma
All ICON shock absorbers are fully rebuildable and re-tunable
2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
Allows for full wheel travel without overstressing OE components
Billet aluminum UCAs for added strength durability and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10731700) Delta Joint for extended longevity
Rear Add-a-Leaf softens spring rate for improved ride quality while providing 1.5” of rear lift
2.0 Aluminum Series remote reservoir rear shocks provide balanced tune with coilovers and increased performance

SKU: FRDK-K53222 Category: Suspension Lift Kit

Rounding out the Stage 3 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks with remote reservoirs specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.

Additional Attributes:

GTIN: 00840103421100
Bushings Included: Yes
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Damping: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Maximum Lift Front: 2
Maximum Lift Rear: 1.5
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Linear
Recommended Aftermarket Tires: 33″ x 11.50″ (Minor fender trimming may be required)
Recommended Aftermarket Wheels: 20×9 with 5.00” Backspace / 0mm Offset
