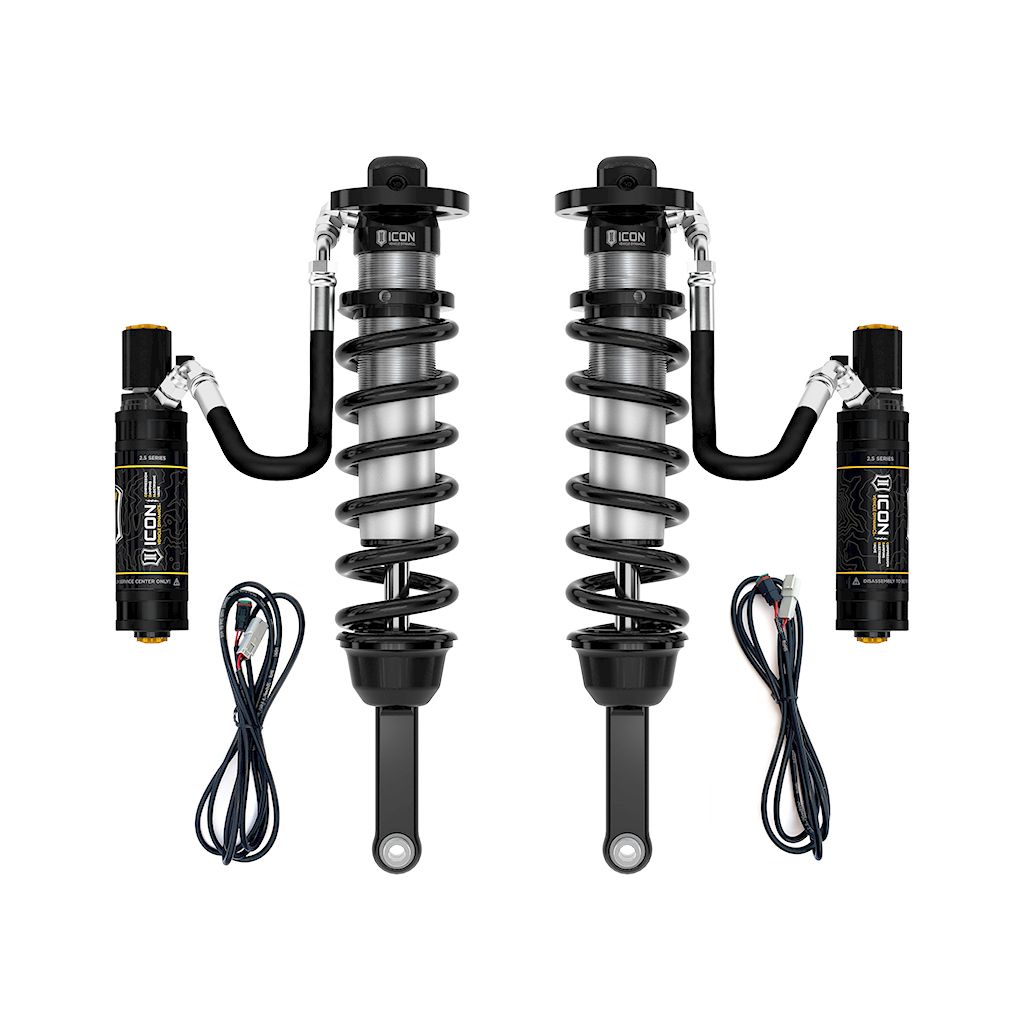

ICON 2005-2023 Toyota Tacoma, 2.5 VS Extended Travel, Remote Reservoir w/ CDEV Coilover Kit, 700 lbs/in Coils

ICON 2005-2023 Toyota Tacoma, 2.5 VS Extended Travel, Remote Reservoir w/ CDEV Coilover Kit, 700 lbs/in Coils

$4,927.96

2005-UP TOYOTA TACOMA EXTENDED TRAVEL 2.5 VS REMOTE RESERVOIR CDEV COILOVER KIT

ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Bolt-on kit – no cutting or welding necessary for installation
100% Rebuildable
100% Revalveable
Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable for 0-3.5″ (2005-2015 models) or 0-2.75″ (2016-2023 models) of lift height over stock
ICON engineered coil springs with 700 lbs/in spring rate
External reservoirs to attain cooler operating temperatures during extended off-road use
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
FK rod end bearings for extended longevity and minimal deflection

SKU: FRDK-58735E-700 Category: Coilover Spring and Shock Assembly

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Additional Attributes:

GTIN: 00840103423852
Dust Shield: No
Material: Aluminum
Maximum Lift: 3.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
Spring Rate: 700
Spring Material: Steel
Adjustable Height: yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Body Diameter: 2.5
Adjustable Damping: Yes
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Adjustment Type: Electronic
Damping Type: Oil
