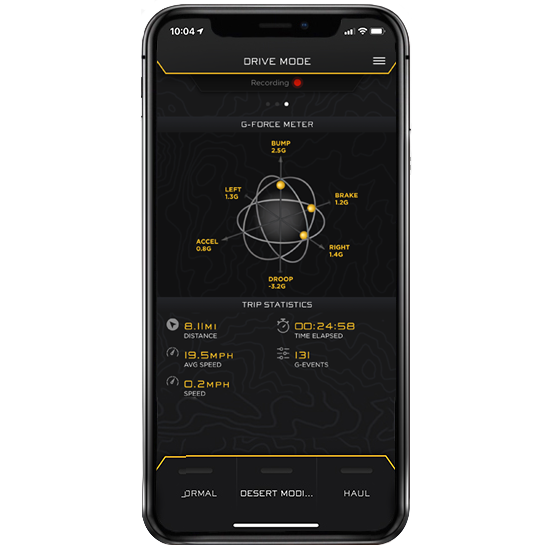

Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
Additional Attributes:
GTIN: 00840103421193
Spring Rate: 600
Spring Material: Steel
Adjustable Height: yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Body Diameter: 2.5
Adjustable Damping: Yes
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 3.5
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 37.0000 x 12.0000 x 8.0000 inches
Weight: 62.0000 PG
