ICON 2005-2023 Toyota Tacoma, Stage 1 RXT Suspension System

Suspension Lift Kit

ICON 2005-2023 Toyota Tacoma, Stage 1 RXT Suspension System

$5,613.23

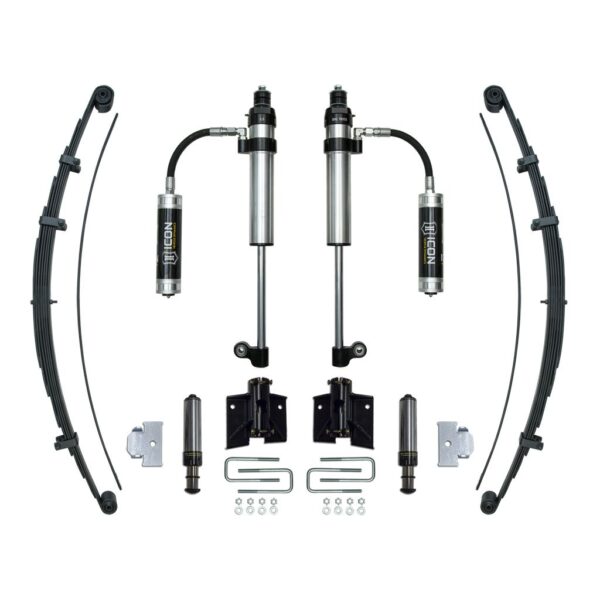

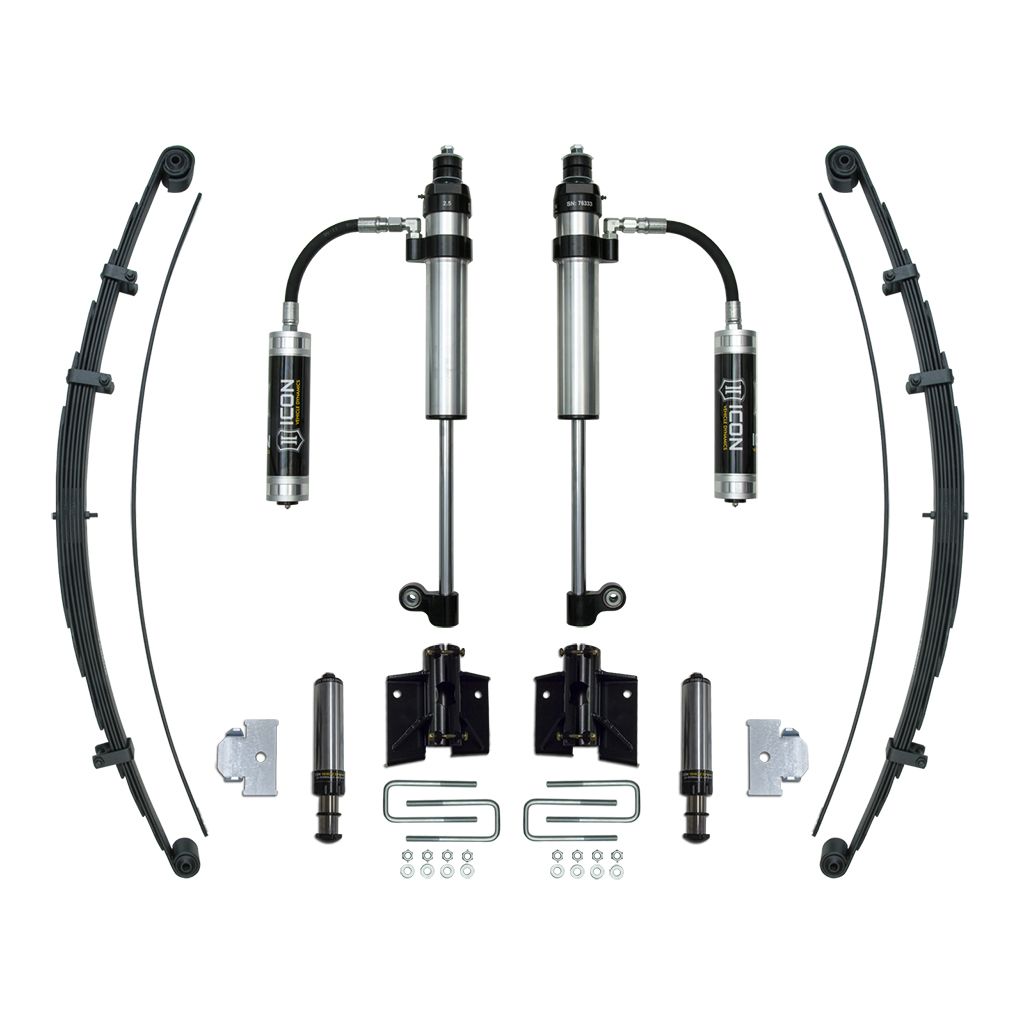

The RXT Suspension System includes 2.5 Aluminum Series rear shocks and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit for a 20% increase in wheel travel and the ability to adjust the leaf spring rate.

ICON RXT Multi-Rate Leaf Spring: 3 user-adjustable spring rates for unique vehicle configurations
ICON Hydraulic Rear Bump Stop Kit: Heavy duty 1 ¼” CNC machined nitro steel shaft
ICON Hydraulic Rear Bump Stop Kit: Multi-stage CAD plated body for maximum corrosion resistance
ICON Hydraulic Rear Bump Stop Kit: Double sealed high pressure Schrader valve Operating range of 50 – 250 PSI
ICON RXT Multi-Rate Leaf Spring: Military wrap front eyelet for increased durability
ICON Hydraulic Rear Bump Stop Kit: Replaceable noise reducing striker pad
ICON Hydraulic Rear Bump Stop Kit: Fully serviceable
ICON Hydraulic Rear Bump Stop Kit: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON RXT Multi-Rate Leaf Spring: Galvanized leaf separators reduce friction and aid in corrosion resistance
ICON RXT Multi-Rate Leaf Spring: Leaf tip inserts reduce noise and increase ride comfort
ICON RXT Multi-Rate Leaf Spring: Potential for increased wheel travel when used with RXT shock (up to 20%) without sacrificing up-travel
ICON RXT Rear Shock: 10” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
ICON RXT Multi-Rate Leaf Spring: “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
ICON RXT Multi-Rate Leaf Spring: Direct bolt-in to OEM spring location makes for an easy install

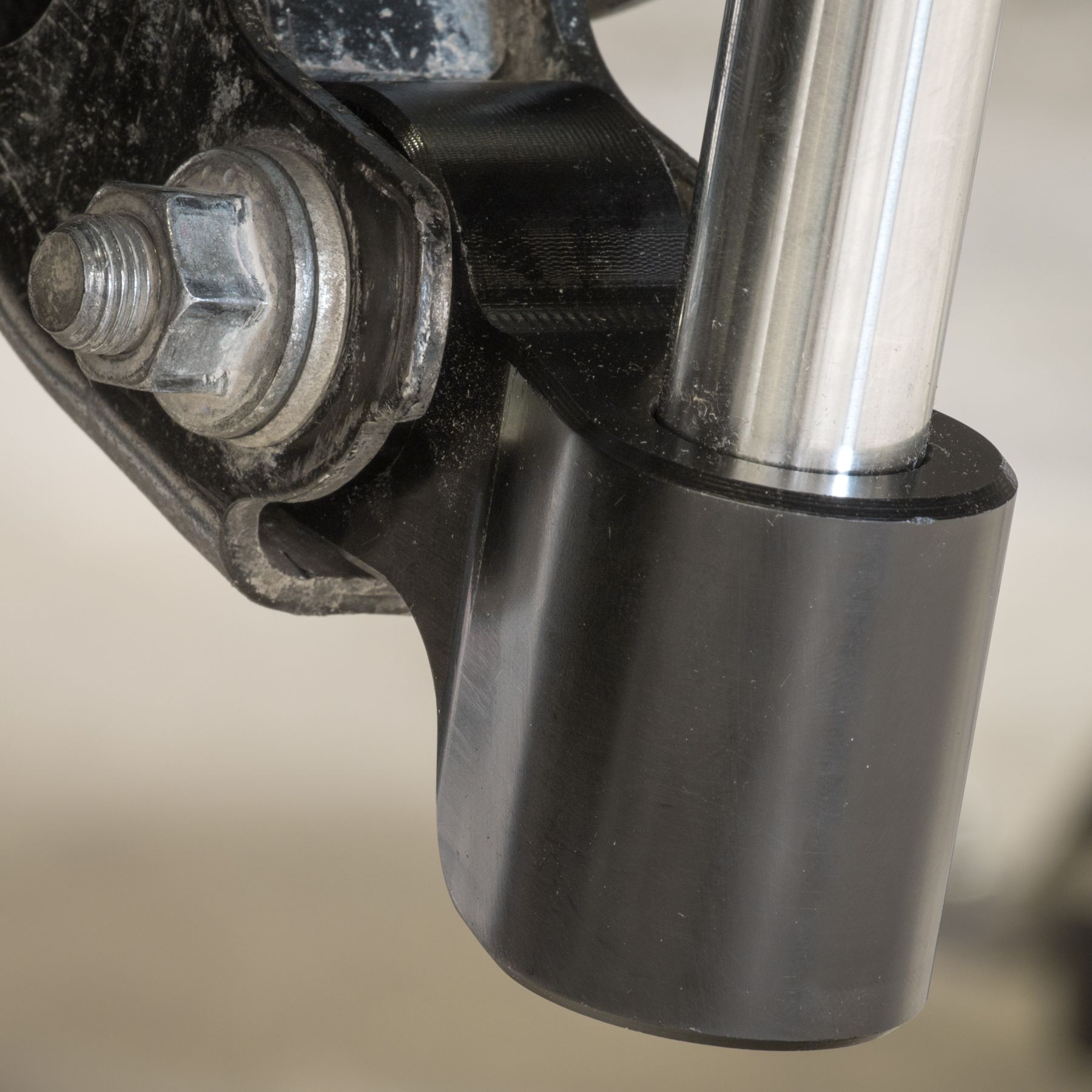

ICON RXT Rear Shock: Unique side-mounted lower eyelet allows for increased travel while utilizing factory mounting location
ICON RXT Rear Shock: Vehicle-specific tuned shocks provide increased damping and oil volume
ICON RXT Rear Shock: Corrosion resistant anodized aluminum shock bodies with 7/8″ shafts
ICON RXT Rear Shock: Shocks are fully rebuildable and revalveable
ICON RXT Rear Shock: Simple and straightforward installation
ICON Hydraulic Rear Bump Stop Kit: 2.5” travel bump stop reduces rear end ‘kick’ and improves overall performance
ICON Hydraulic Rear Bump Stop Kit: Position sensitive technology exponentially increases bottom-out resistance
ICON Hydraulic Rear Bump Stop Kit: Vehicle specific bump stop tune to provide smooth engagement and best ride quality
ICON Hydraulic Rear Bump Stop Kit: Direct bolt-in to OEM bump stop location makes for an easy and straightforward install

SKU: FRDK-K53161 Category: Suspension Lift Kit

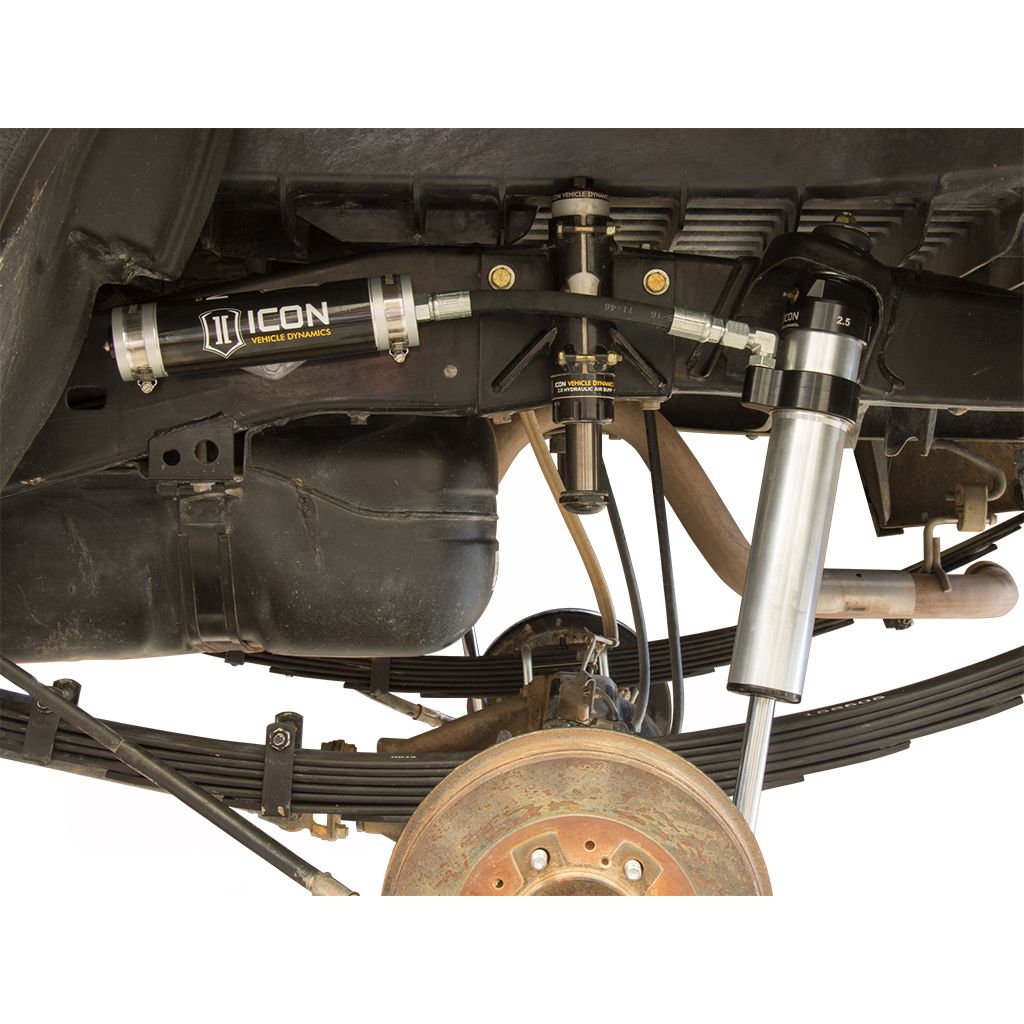

Through thousands of miles of accelerated testing in our R&D program, ICON has spent over a year identifying limiting factors in OE components and seeking to further extrapolate performance out of this vehicle. In a push to provide unparalleled performance for everything from high-speed desert running to off the grid expedition, the RXT Rear Suspension System was born. The RXT Rear Suspension System includes three all-new 2.5 Aluminum Series rear shock options and a multi-rate leaf spring that work in conjunction with the ICON rear bump stop kit. Installation of this system replaces the aforementioned “limiting factors” and completely redefines the potential of the 2005-2023 Toyota Tacoma with a 20% increase in wheel travel and the ability to adjust the leaf spring rate to compensate for varying vehicle setups.

Additional Attributes:

GTIN: 00840103417592
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Leaf Spring Leaf Quantity: 7
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable Damping: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Maximum Lift Rear: 2.625
Minimum Lift Rear: 1.875
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Variable
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
