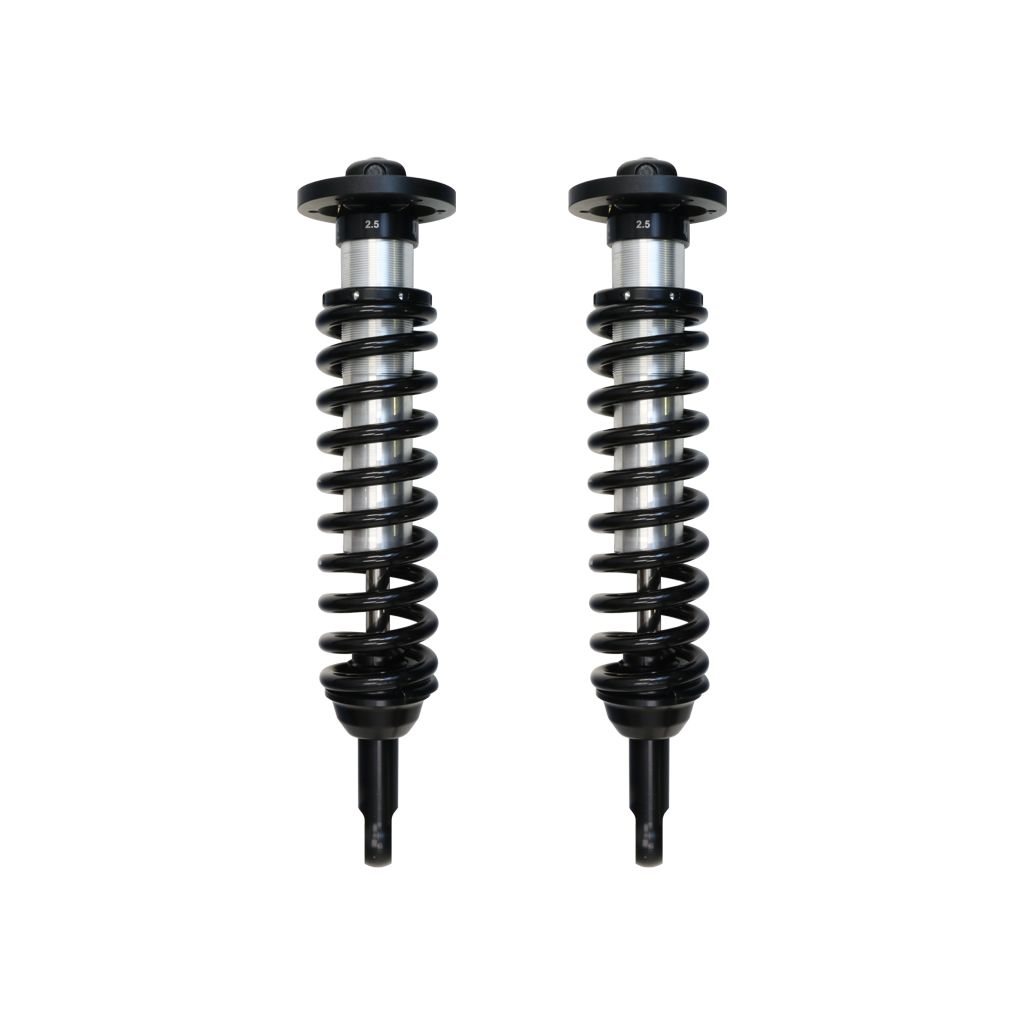

ICON 2009-2013 Ford F-150 2WD, 0-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir

$2,983.42

ICON 2.5 Series internal reservoir coilovers are an incredible upgrade for the Ford F150. Vehicle-specific valving provides a sport tuned feel while offering 0-2.63” of lift height for use of larger, more aggressive wheel and tire combos.

Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable 0-2.63″ lift height
ICON engineered Eibach Springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8 polished nitro steel shaft
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on – no drilling,cutting or welding necessary for installation

SKU: FRDK-91600 Category: Coilover Spring and Shock Assembly

ICON Vehicle Dynamics V.S. Series 2.5" coil-over shocks are an incredible upgrade for the front end of 2009-2013 Ford F-150 2WD trucks. ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while 0-2.63" lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

Additional Attributes:

GTIN: 00840103406909
Valving Type: Digressive
Adjustable Compression: No
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Rebound: No
Dust Shield Included: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 2.63
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
