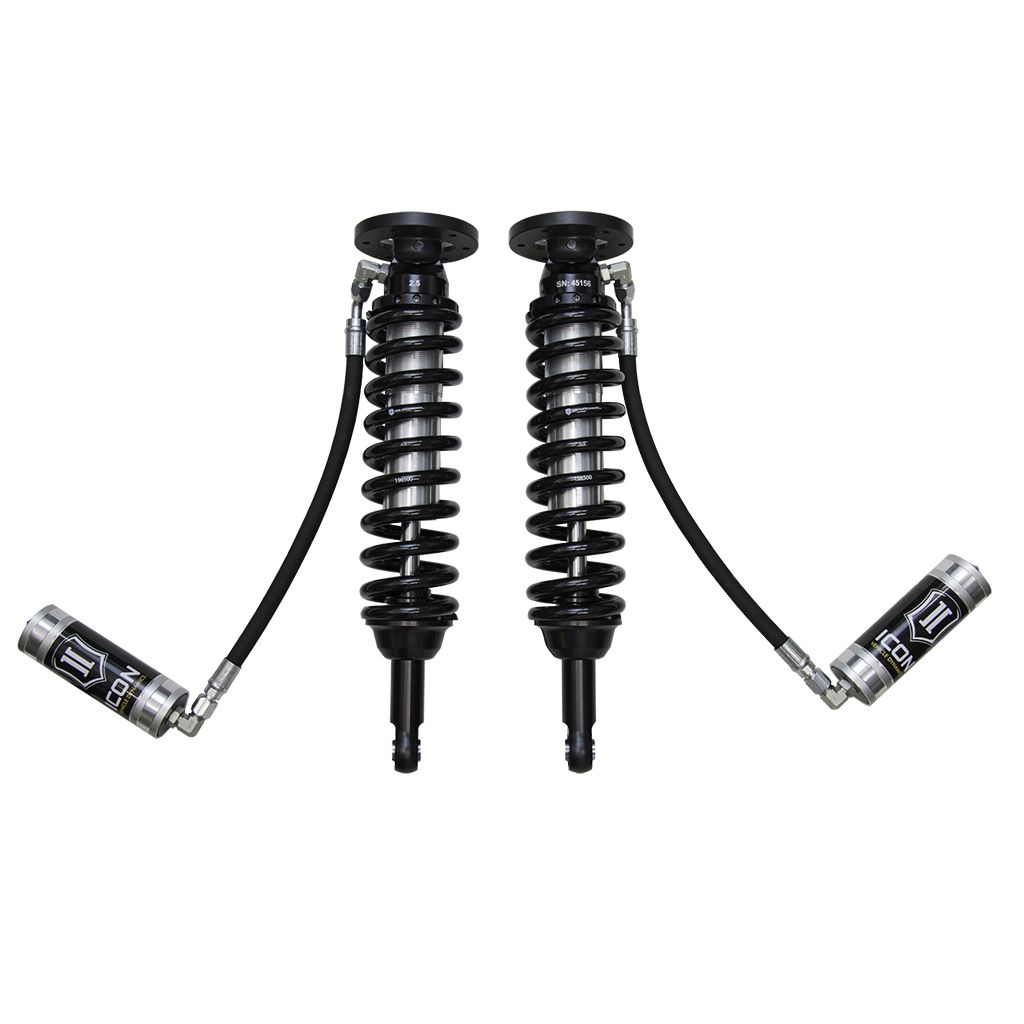

ICON 2009-2013 Ford F-150 2WD, 1.75-2.63” Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir

$3,255.44

ICON 2.5 Series remote reservoir coilovers are an incredible upgrade for the Ford F150. Vehicle-specific valving provides a sport tuned feel while offering 1.75-2.63” of lift height for use of larger, more aggressive wheel and tire combos.

Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
External reservoirs to attain cooler operating temperatures during extended offroad use
Adjustable 1.75-3″ lift height
ICON engineered Eibach Springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on – cutting or welding necessary for installation

SKU: FRDK-91805 Category: Coilover Spring and Shock Assembly

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2009-2013 Ford F150 2WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Ford F150 2WD.

Additional Attributes:

GTIN: 00840103406992
Valving Type: Digressive
Adjustable Compression: No
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: MOUNT PLATE
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable: No
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Type: Oil
Dust Shield: No
Material: Steel
Maximum Lift: 2.63
Minimum Lift: 1.75
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
Reservoir Style: Remote
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
