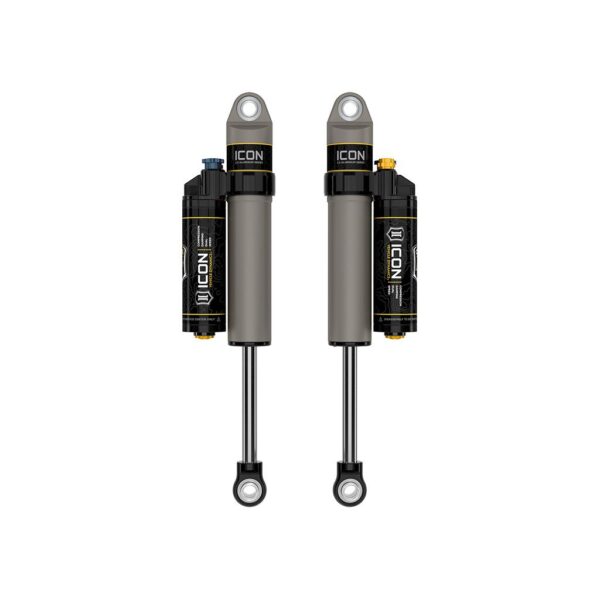

ICON 2009-2024 Ford F-150/2004-2008 Ford F-150 4WD, 0-1″ Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDXS, Pair

$2,722.19

ICON 2.5 Series shocks are configured specifically for each application. These hardcore units are fitted with piggyback reservoirs to stay cooler during intense wheeling and ICON’s CDCV which offers 10 adjustment points.

ICON CDXS equipped for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
6061 aircraft grade aluminum CNC machined components
100% Rebuildable
100% Revalveable
One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range

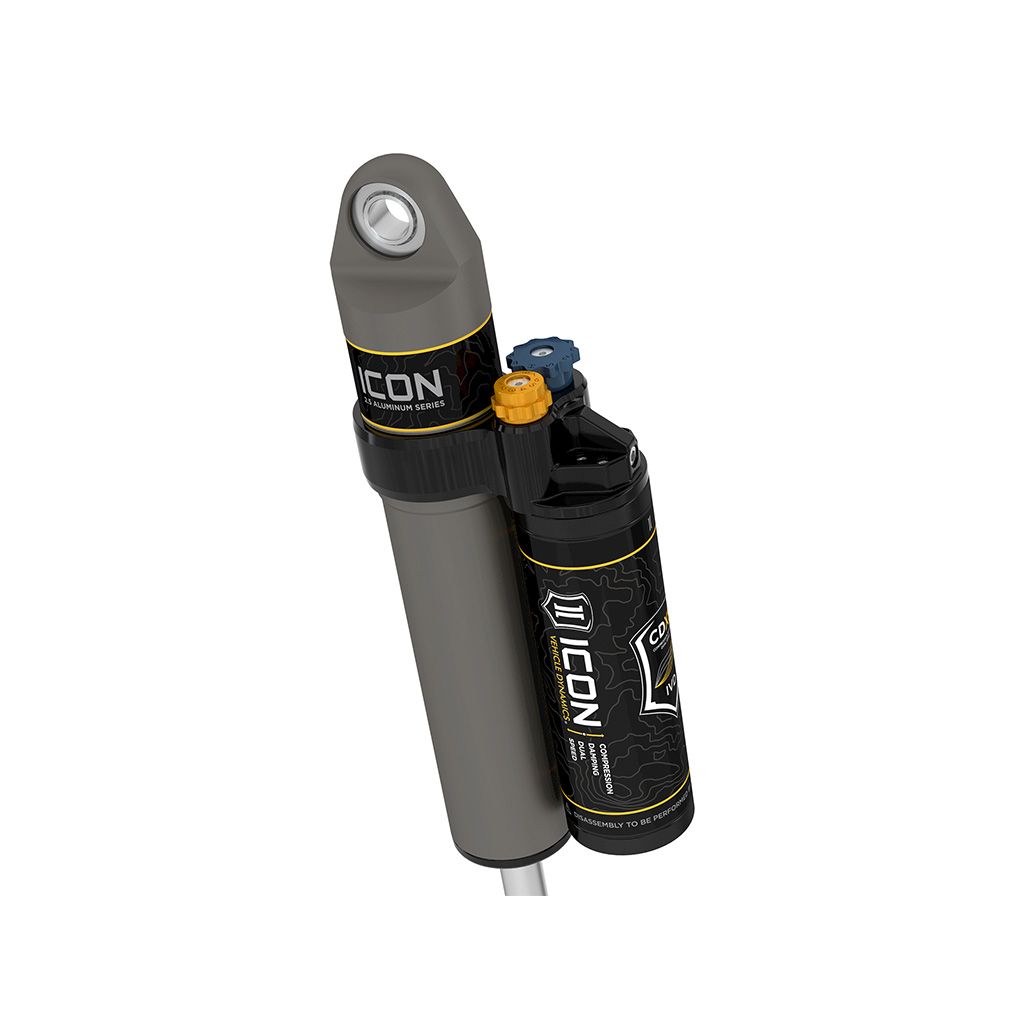

Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware

SKU: FRDK-97720XP Category: Jeu d'amortisseurs de suspension

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness.

Additional Attributes:

GTIN: 00840103431970
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: Yes
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Center of Eylet
Lower Mount Type: EYELET
Upper Mount Type: EYELET
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.25
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Grey
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Adjustment Type: Dual Speed/Manual
Damping Type: Oil
External Reservoir: Yes
Reservoir Type: Piggyback
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Valving Type: Digressive

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 15.0000 x 9.0000 inches
Weight: 22.0000 PG

PDF:

I97720XP_REVA

Weight	9.98 kg
Dimensions	39.0000 × 15.0000 × 9.0000 cm
