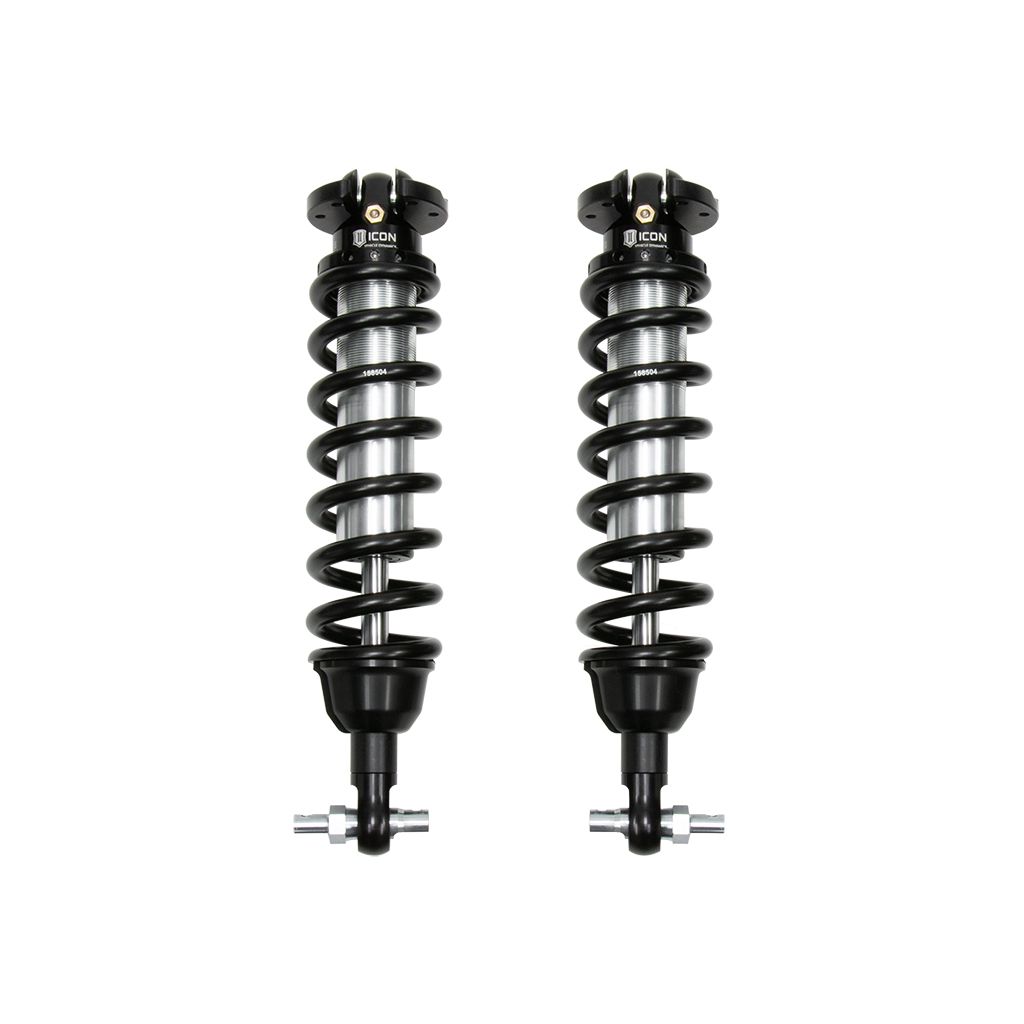

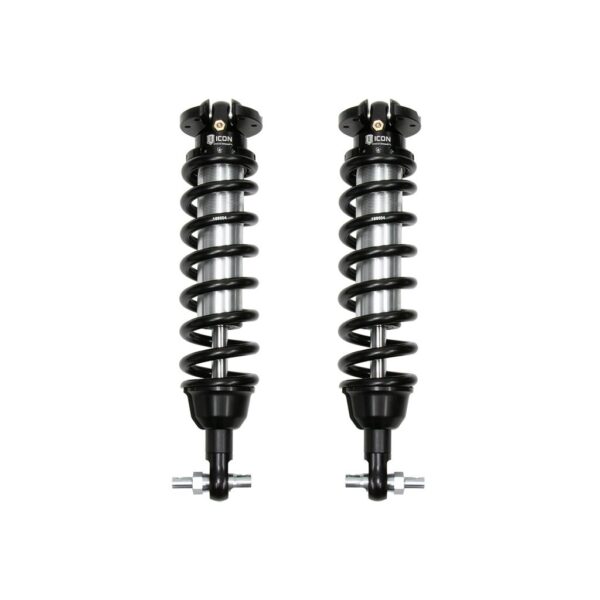

ICON 2019-2023 Ford Ranger, 0-3.5” Lift, 2.5 VS Coilover Kit

$2,801.77

ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.

Adjustable coilovers yield 0-3.5” of front lift height
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location

SKU: FRDK-91250 Category: Coilover Spring and Shock Assembly

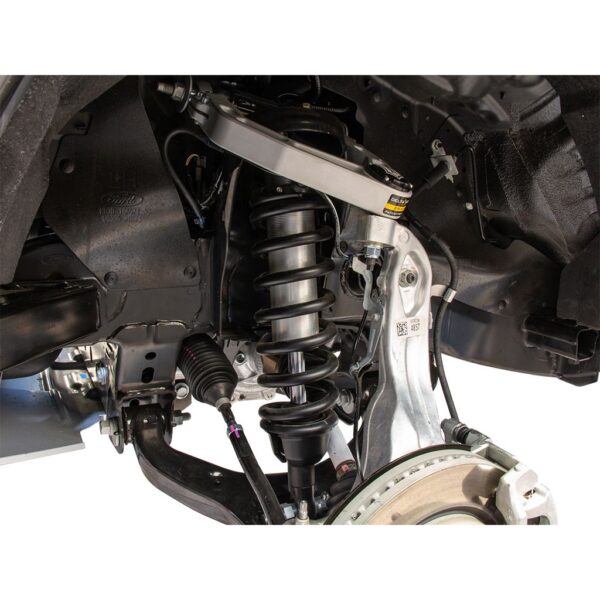

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2019-2023 Ford Ranger. These adjustable coilovers allow up to 0-3.5” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible with OE front upper control arms along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Ranger.

Additional Attributes:

GTIN: 00840103406862
Spring Material: Steel
Adjustable Height: Yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Body Diameter: 2.5
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Type: Oil
Dust Shield: No
Maximum Lift: 3.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″x11.25″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5 w/ 5.75″ Backspace / 25mm Offset
Remote Reservoir: NO
Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
