ICON 2019-2023 Ford Ranger, 0-3.5″ Lift, Stage 1 Suspension System

$3,472.52

ICON complete suspension systems lift your Ford Ranger while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Height-adjustable coilovers provide a range of 0-3.5” of front lift height
Direct bolt-in design makes for a simple and straightforward installation
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Fits 2WD & 4WD applications
Increased lift height allows for fitment of larger and more aggressive tires
Up to 25% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
Corrosion resistant anodized shock body with 5/8? shaft (2.0 Aluminum Series shocks)
Corrosion resistant CAD plated shock body with 7/8? shaft (2.5 Series shocks)
FK Rod End bearings provide extended longevity and minimal deflection
Shocks are fully rebuildable and revalvable

SKU: FRDK-K93201 Category: Suspension Lift Kit

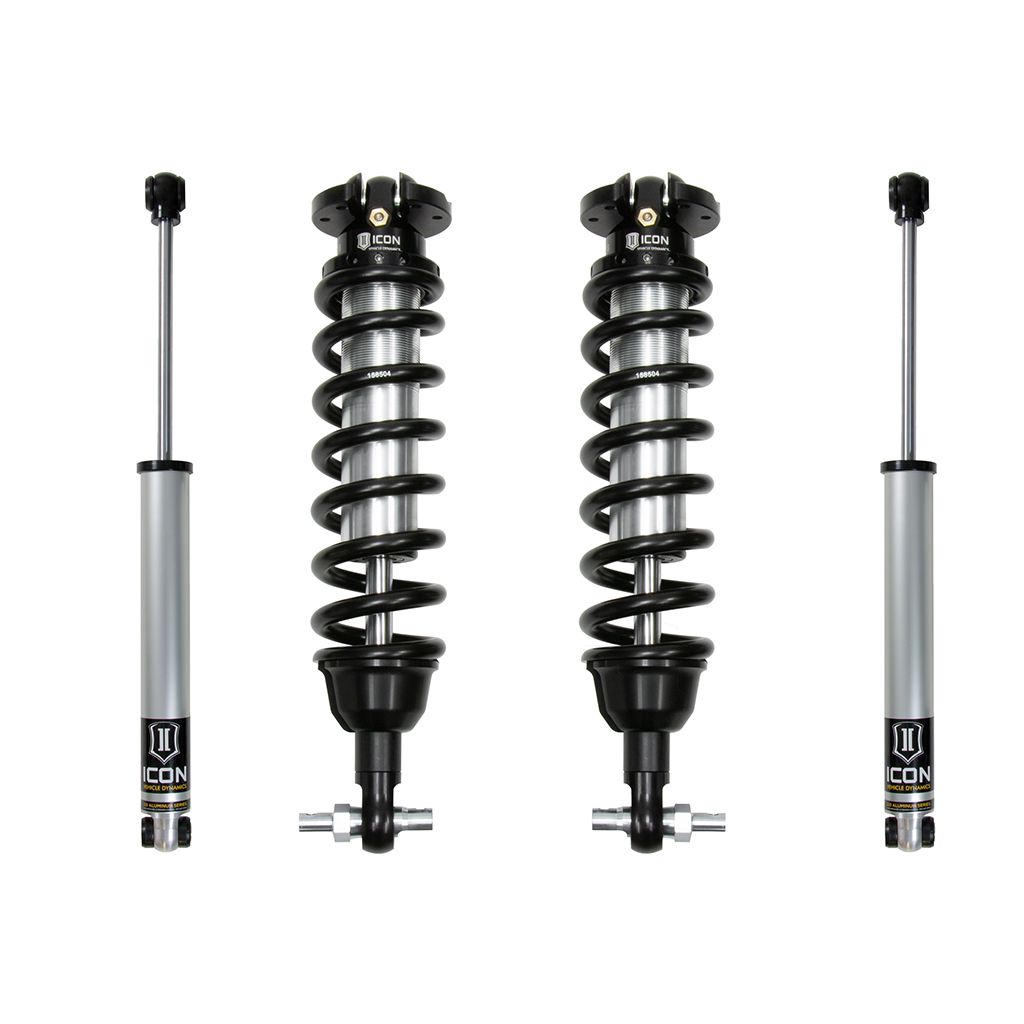

ICON Vehicle Dynamics 2019-2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Additional Attributes:

GTIN: 00840103420448
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.5
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dual Rate Coil Springs: NO
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″x11.25″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.75” Backspace / 25mm Offset
