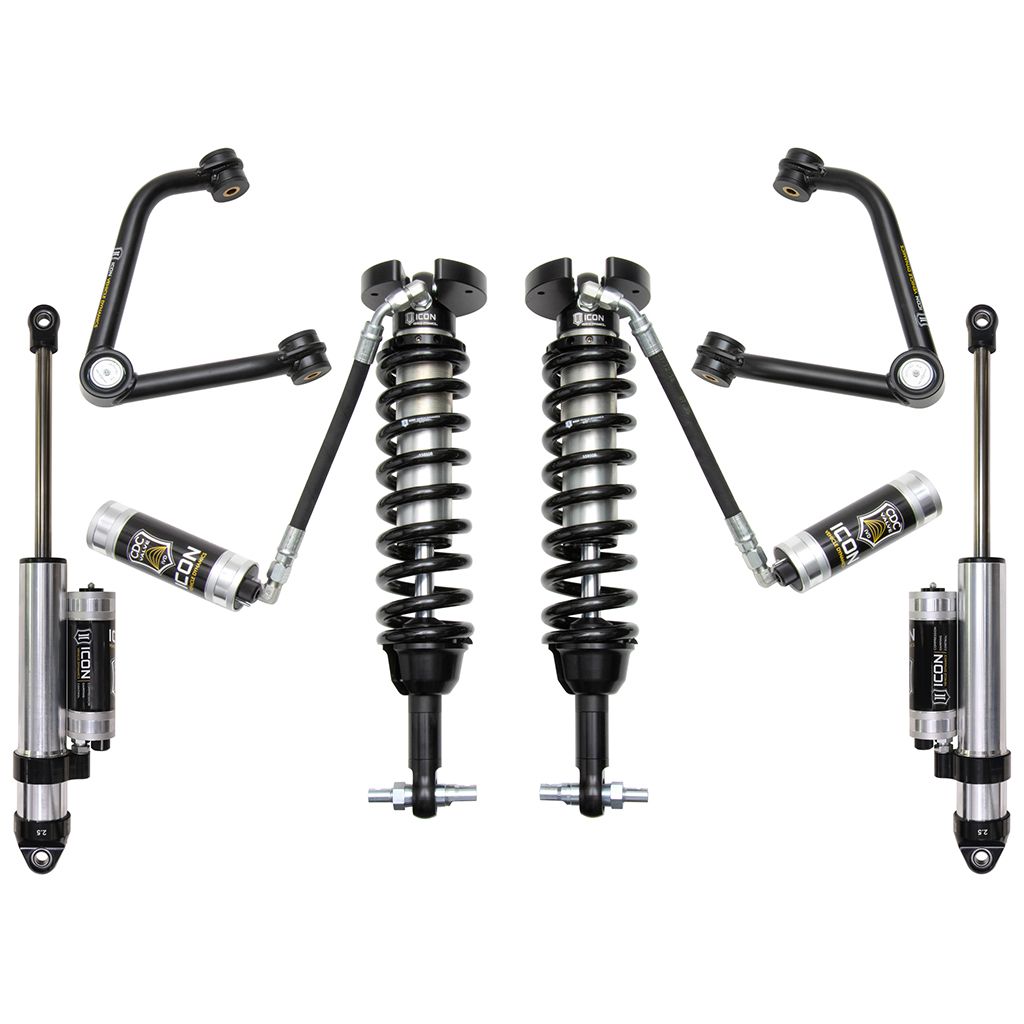

ICON 2019-2023 GM 1500, 1.5-3.5″ Lift, Stage 4 Suspension System, Tubular UCA

$8,429.81

ICON 19-23 GM Silverado/Sierra 1500 suspension systems are designed to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

Adjustable coilovers provide 1.5-3.5” of front lift height
FK Rod End bearings provide extended longevity and minimal deflection
Shocks are fully rebuildable and revalvable
ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
Direct bolt-in makes for a simple and straightforward installation
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Increased lift height allows for fitment of larger and more aggressive tires
Fits 2WD/4WD applications
Up to 35% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
2.5 Series coilover shocks feature corrosion resistant CAD plated shock body with 7/8″ shaft
2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
7.5” aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
Easy-to-adjust CDC Valve (Compression Damping Control) allows for end-user compression changes to suit all types of terrain and vehicle cargo configurations

SKU: FRDK-K73064T Category: Suspension Lift Kit

This system features tubular steel upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application – exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Additional Attributes:

GTIN: 00840103419299
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.5
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (Sierra): 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
