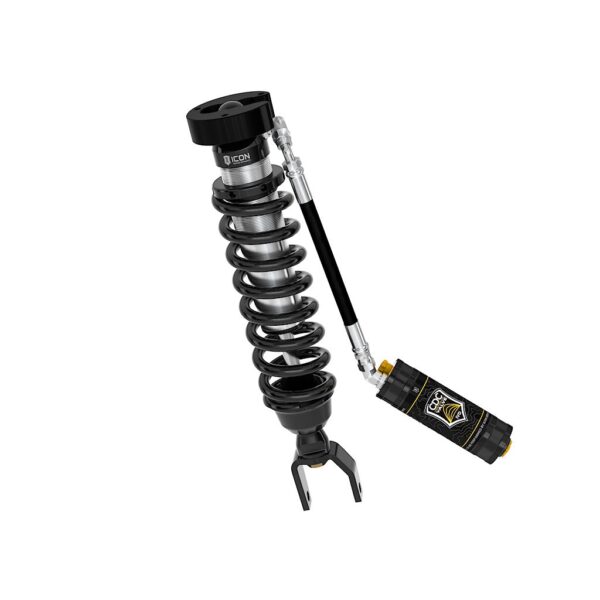

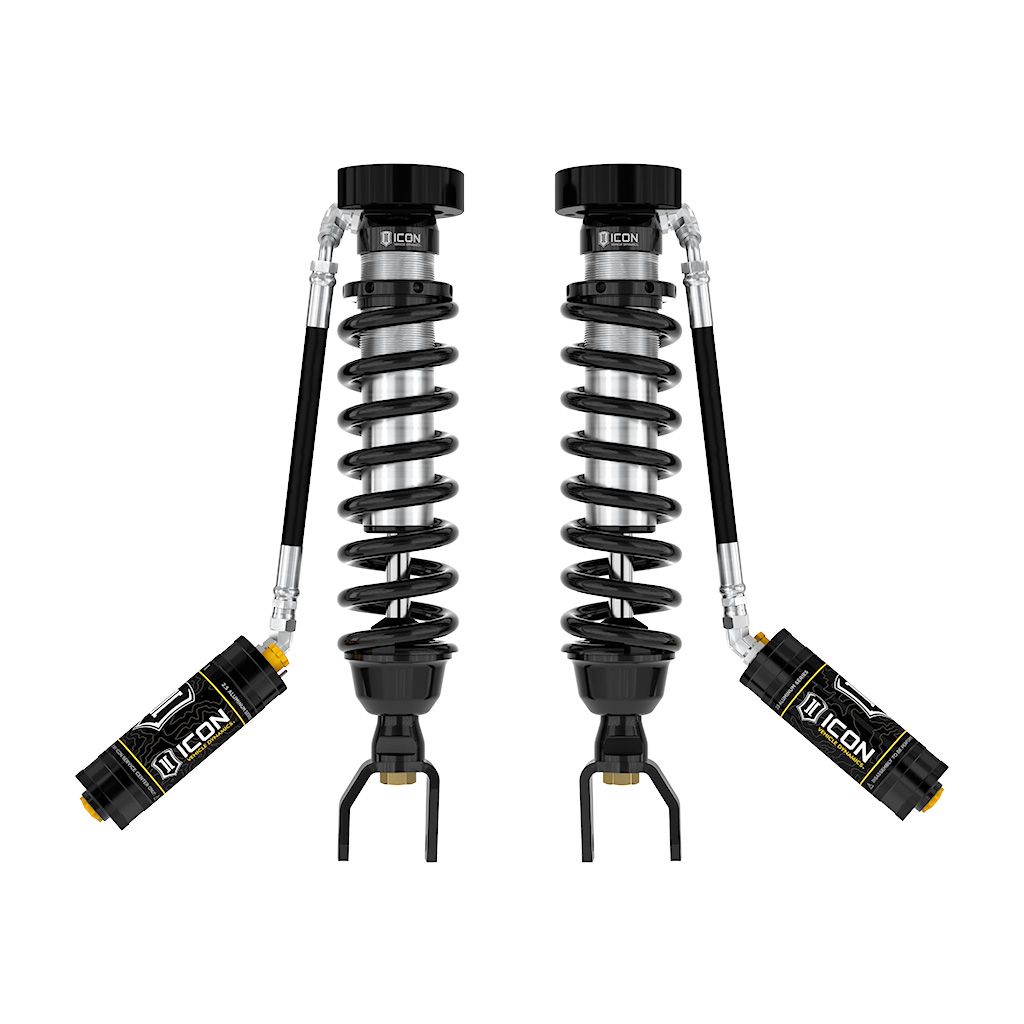

ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

ICON 2019-2023 Ram 1500, 2-3” Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV

$3,755.62

ICON 2.5 Series coilovers are an incredible upgrade for the front of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel while 2-3” of lift allows the use of larger, more aggressive wheel and tire combos.

Increased wheel travel and ride quality over stock
Adjustable from 2-3″ of front lift height over stock
Remote reservoirs maintain cooler operating temperatures and consistent operation during extended off-road use
ICON CDCV equipped for external tuneability of your shocks
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8″ diameter shaft
High strength alloy CNC machined lower mounting clevis
FK rod end bearings for extended longevity and minimal deflection
100% Bolt-on – no drilling, cutting or welding necessary for installation
Unique valving developed for the lighter weight and chassis dynamics of the 2019-2023 Ram 1500
Vehicle specific tuned for superior shock damping and control

SKU: FRDK-211015C Category: Coilover Spring and Shock Assembly

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Additional Attributes:

GTIN: 00840103411804
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Clevis Holes
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Clevis
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 3
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 35″ x 12.50″ (fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5” Backspace / 0mm Offset
Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
