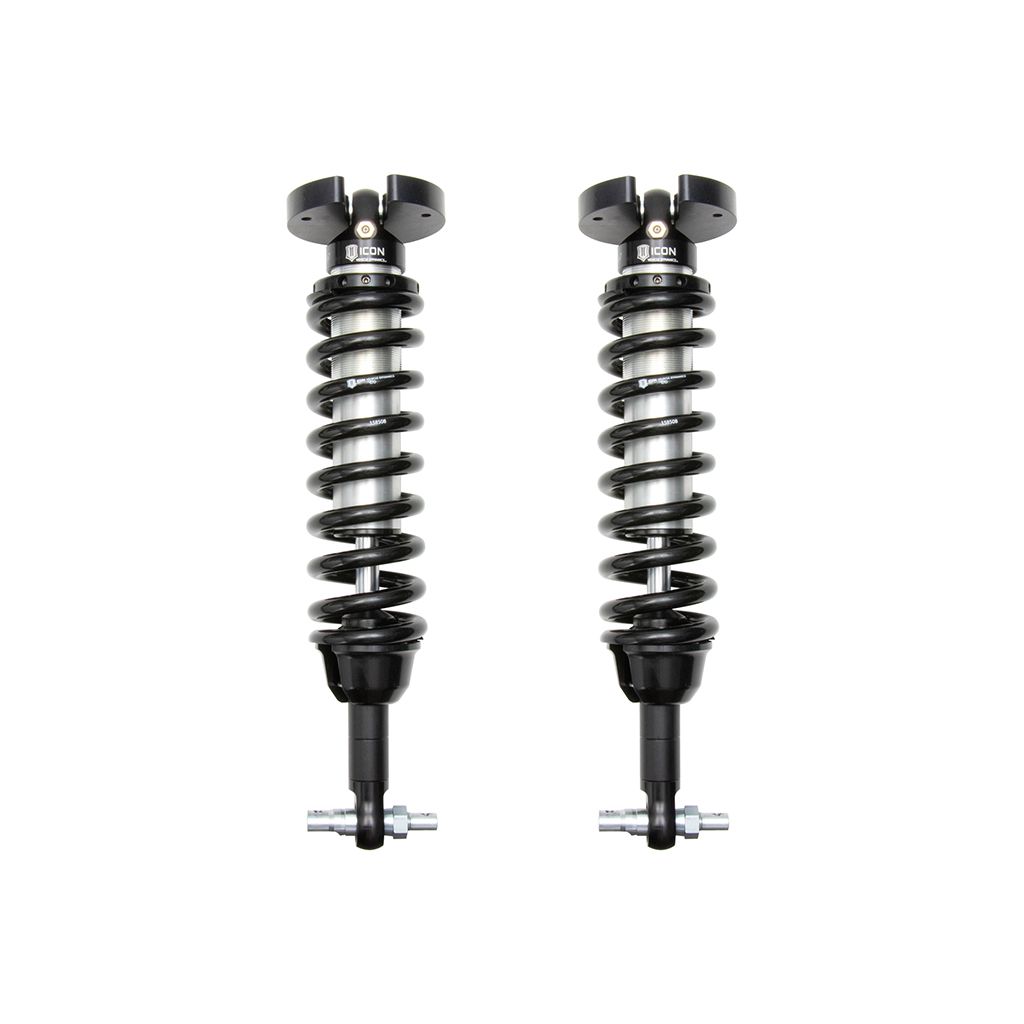

ICON 2019-2024 GM 1500/2021-2023 GM SUV, 1.5-3.5” Lift, Front, V.S. 2.5 Series Coilover Kit, Internal Reservoir

$3,246.67

ICON's 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune.

Increased front wheel travel and improved ride quality over stock
High strength alloy CNC machined lower bar pin and application specific mounting hardware
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
Adjustable coilovers yield 1.5-3.5” or 2.5-3.25″ of front lift height over stock, depending on vehicle
Internal nitrogen reservoir ensures consistent performance under hard use
ICON engineered coil springs
Corrosion resistant CAD plated 2.5” diameter shock bodies
7/8″ diameter hardened chrome plated shafts
6061 Aircraft grade aluminum CNC machined components
PTFE lined spherical bearings for extended longevity and minimal deflection

SKU: FRDK-71605 Category: Coilover Spring and Shock Assembly

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2019-2024 Chevrolet Silverado 1500/GMC Sierra 1500 trucks and 2021-2023 Chevrolet Tahoe & Suburban/GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel (a 20% increase over stock) while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3.5” of lift height adjustability on pickup trucks or 2.5-3.25” of lift height adjustability on SUVs, allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM pickup truck or SUV.

Additional Attributes:

GTIN: 00840103406015
Valving Type: Digressive
Adjustable Compression: No
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Rebound: No
Dust Shield Included: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable: No
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 3.5
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Remote Reservoir: NO
Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
