ICON 2021-2023 Chevrolet Tahoe & Suburban/2021-2023 GMC Yukon & Yukon XL, 2.5-3.25″ Lift, Stage 1 Suspension System

$7,449.71

ICON 21-23 GM SUV suspension systems are designed to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

Adjustable front coilovers provide 2.5-3.25” of front lift height
Shocks are fully rebuildable and re-tunable
Adjustable rear coilovers provide 3-4” of rear lift height
Increased lift height allows for fitment of larger and more aggressive tires
Up to 20% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
2.5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8″ shafts
Internal nitrogen reservoirs ensure consistent performance under hard use
Fabricated rear toe links allow for proper rear end alignment with taller ride height
FK Rod End bearings provide extended longevity and minimal deflection

SKU: FRDK-K73101 Category: Kit de levage de suspension

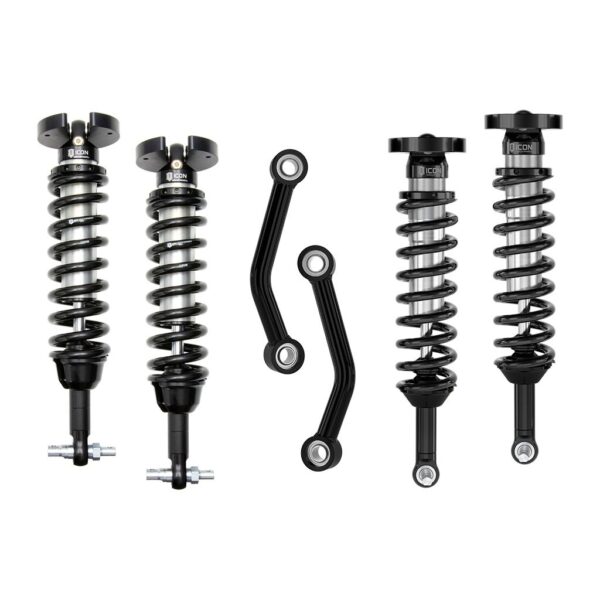

ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the vehicle platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned front and rear 2.5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 2.5-3.25” of front lift and 3-4” of rear lift over stock for an aggressive stance and allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series coilover shocks feature a vehicle-specific valving that balances the performance of the truck from front to rear. The system also includes fabricated rear toe links for proper rear-end alignment at the new, taller ride heights, ensuring optimal handling. Additionally, ICON offers the necessary components to make this system compatible with all submodels and configurations that these vehicles are offered from the manufacturer, including those equipped with Magnetic Ride control and/or Adaptive Air Ride suspension. Features like these make the ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL Stage 1 suspension system an excellent choice for those drivers looking to enhance the capabilities of their SUV on the road as well as in the dirt.

Additional Attributes:

GTIN: 00840103429991
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.25
Coils Quantity Front: 2
Coils Quantity Rear: 2
Active or Passive Suspension: Passive
Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Damping: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Front Spring Rate Type: Linear
Maximum Lift Front: 3.25
Maximum Lift Rear: 4
Minimum Lift Front: 2
Minimum Lift Rear: 2.5
OEM Wheels & Tires Fitment: Yes
Rear Spring Rate Type: Linear
Recommended Aftermarket Tires: 33″x12.50″ (Larger tires may fit but fender trimming and modifications may be required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
Reservoir Style: Internal
