ICON 2021-2023 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Heavy Rate Spring

ICON 2021-2023 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDEV, Heavy Rate Spring

$5,264.92

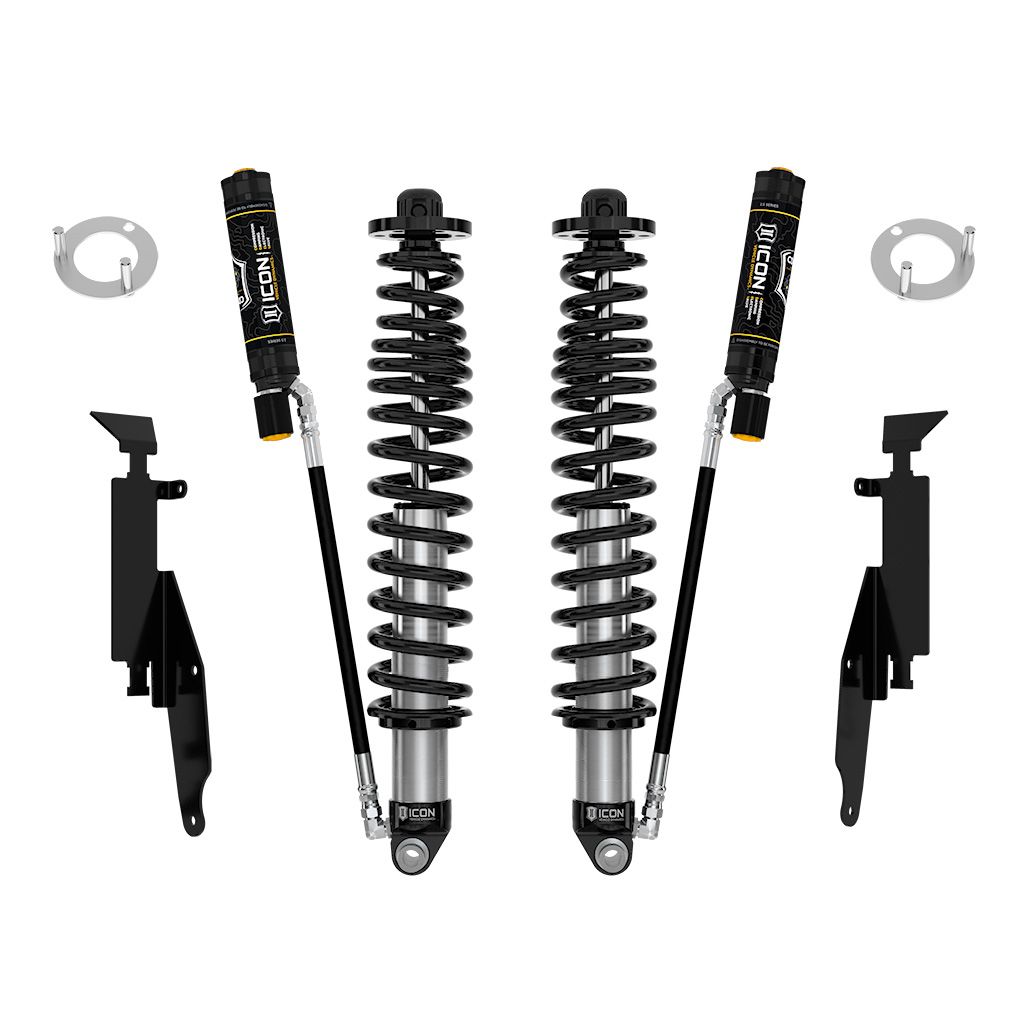

These ICON coilovers feature 2.5 Series shocks with remote reservoirs and coil springs optimized per application. The shock’s bigger 2.5” body and larger piston area improves damping ability and ride quality across varying types of terrain.

Increased wheel travel (up to 14”) and ride quality over stock
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on – no drilling, cutting or welding necessary for installation
Vehicle specific tuned for superior shock damping and control
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

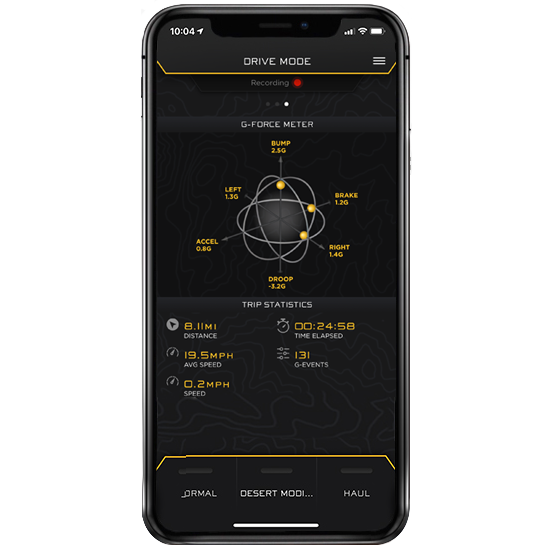

ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Adjustable up to 2-3″ of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8″ diameter shaft

SKU: FRDK-48711E Category: Coilover Spring and Shock Assembly

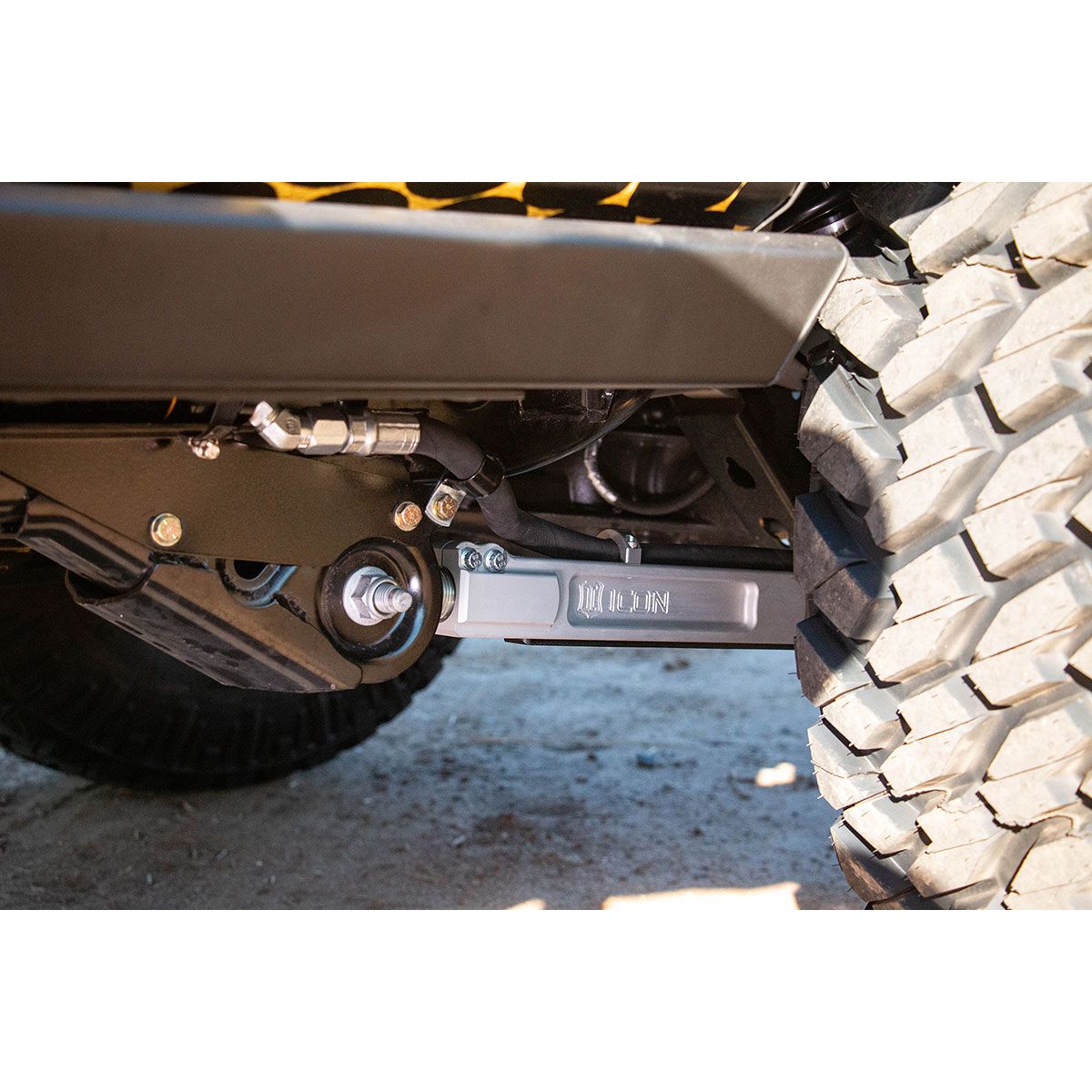

These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. Their shaft up orientation requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design.

Additional Attributes:

GTIN: 00840103424224
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Active
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Top of Mounting Plate
Shock Absorber Body End Measuring Point: Center of Eylet
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 3
Minimum Lift: 1.25
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: (With Sasquatch Package): 35″ x 12.50″ (37″ tires require coilover bump stop spacers)
Recommended Aftermarket Wheels: (With Sasquatch Package): ICON Alloys – 17×8.5″ w/ 4.75″ Backspace / 0mm Offset
Reservoir Style: Remote
Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Progressive Dual Rate
