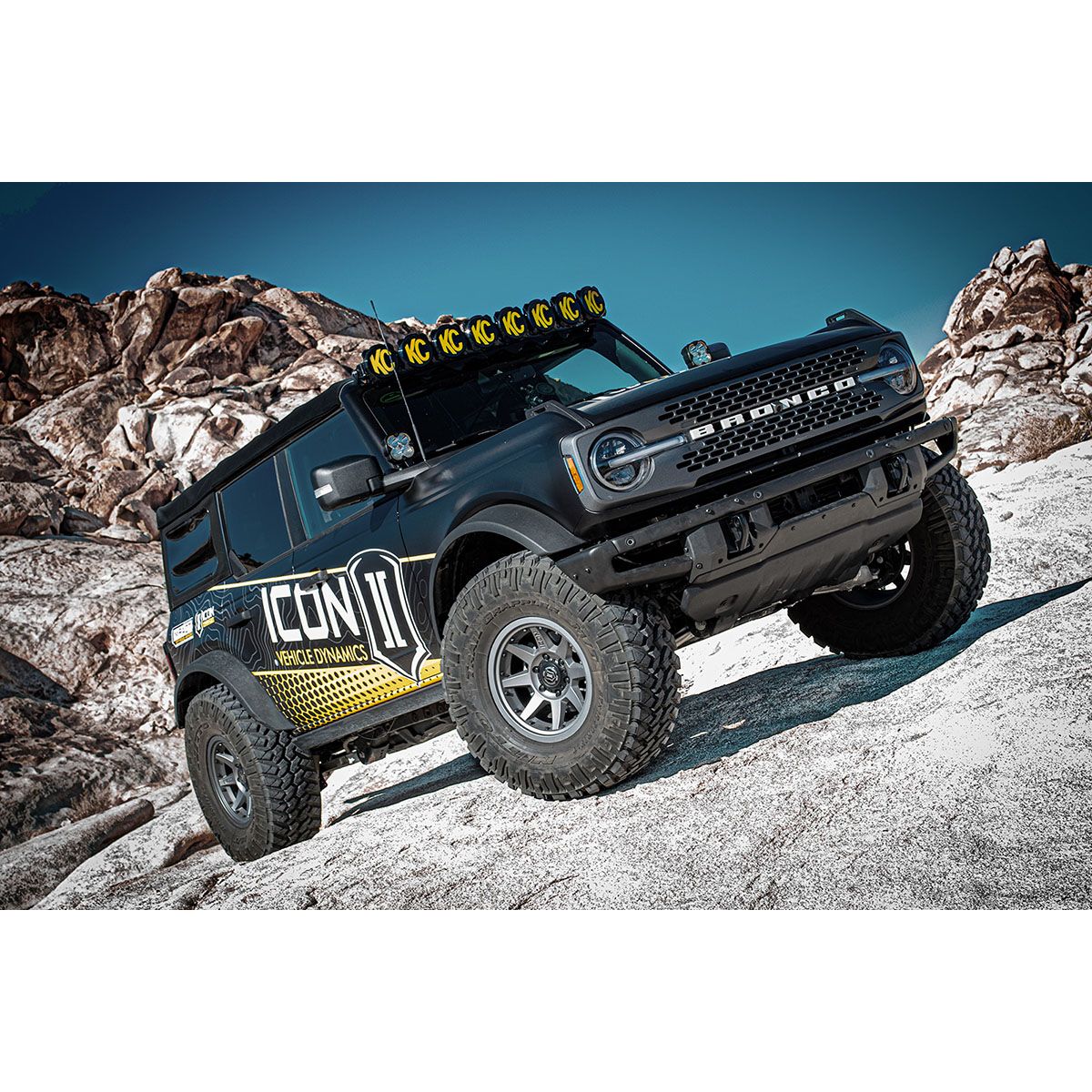

ICON 2021-2023 Ford Bronco, Sasquatch, 2-3″ Lift, Stage 7 Suspension System, CDXS, Billet

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

• Improved suspension performance and ride quality over stock
• High strength alloy CNC machined lower bar pins
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.

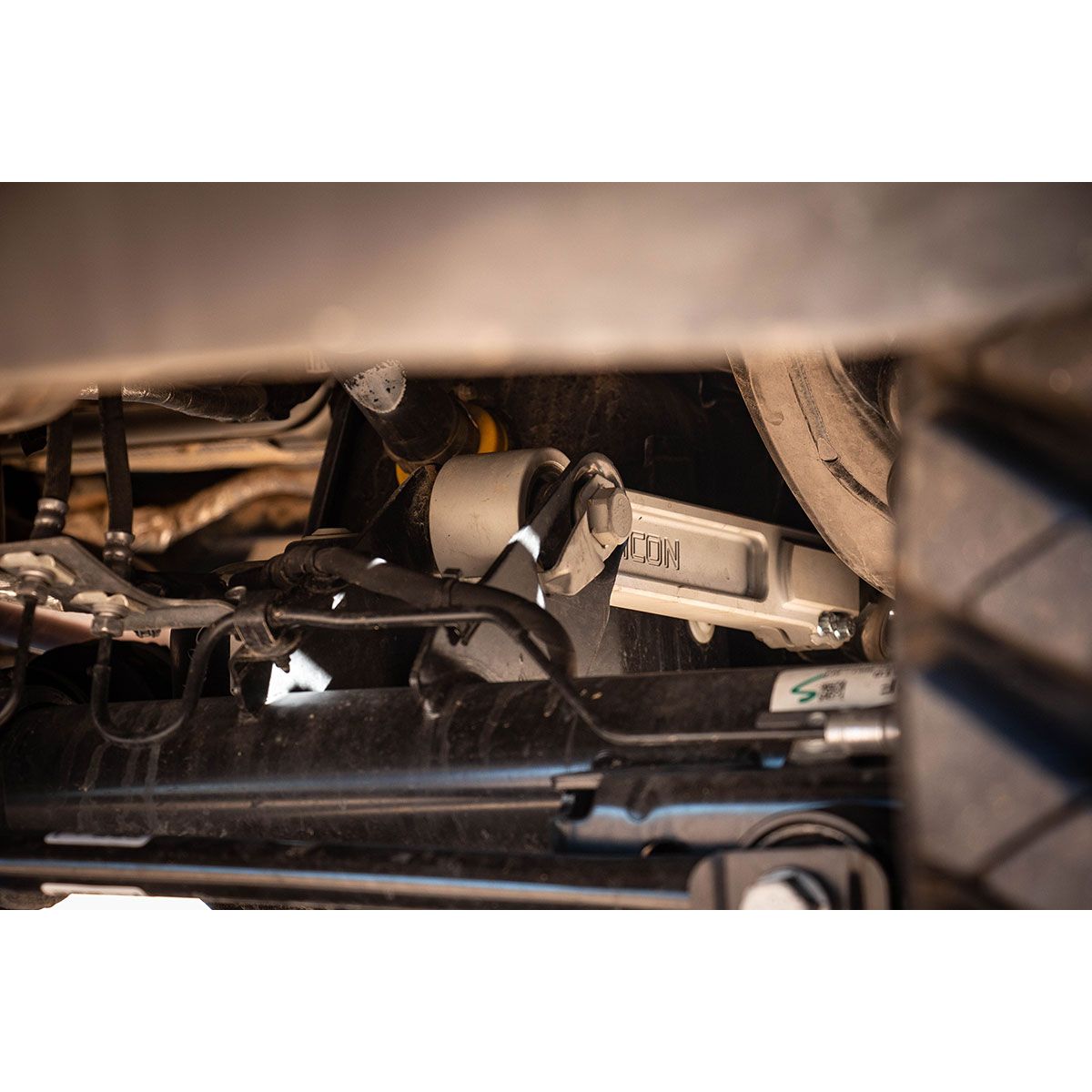

• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
• 100% Bolt-on system – no drilling, cutting, or welding necessary for install
• Up to 11.5″ front / 14” rear wheel travel with 35” tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• Coilovers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
• Adjustable coilovers yield up to 2-3″ of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
