ICON 2021-2023 Ford Bronco, Sasquatch, 2-3" Lift, Stage 8 Suspension System, Billet, Heavy Rate Rear Spring

ICON 2021-2023 Ford Bronco, Sasquatch, 2-3″ Lift, Stage 8 Suspension System, Billet, Heavy Rate Rear Spring

$19,093.78

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Improved suspension performance and ride quality over stock
ICON engineered coil springs featuring a unique dual rate rear coil design with increased spring rates for heavier equipped Broncos
High strength alloy CNC machined lower bar pins
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation

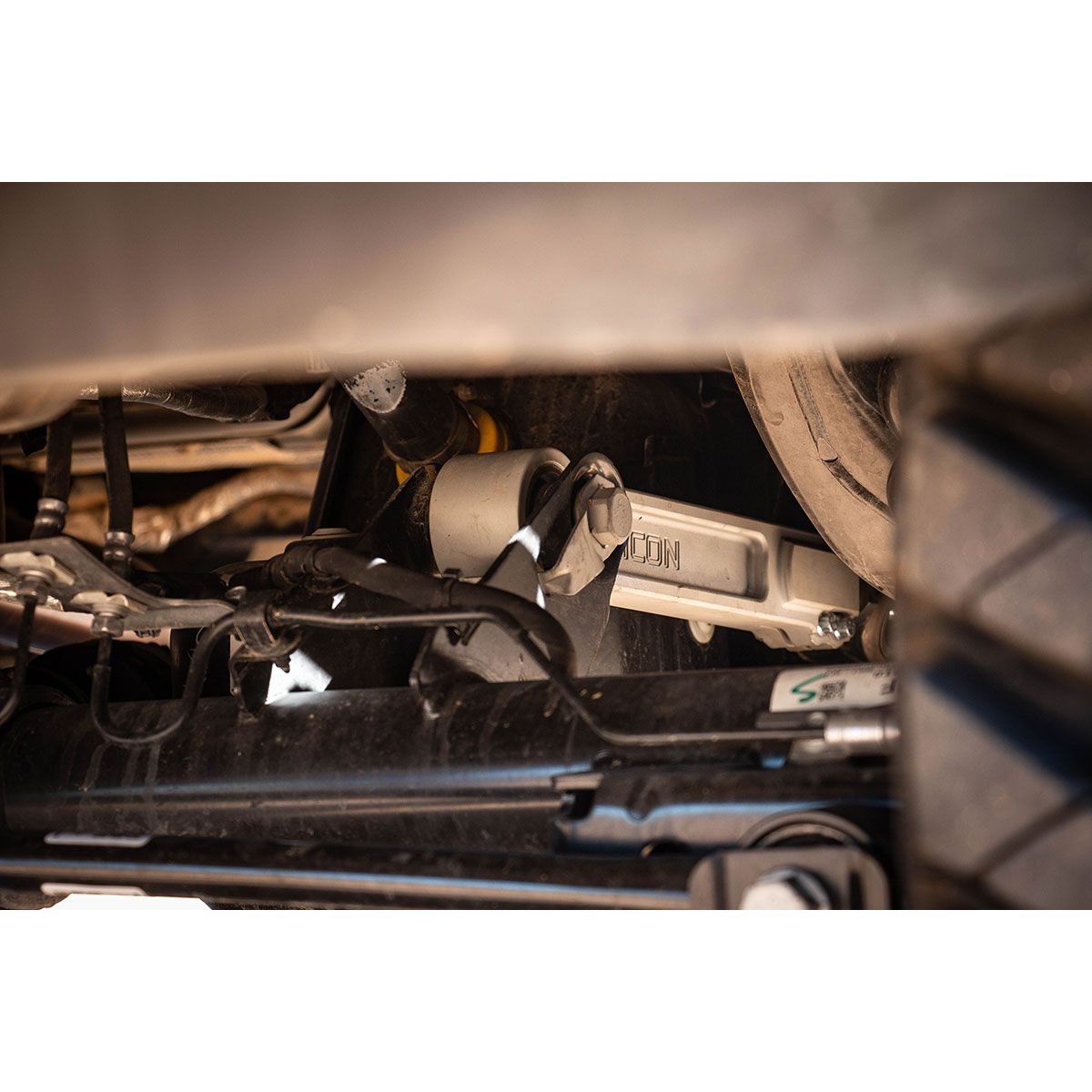

Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
100% Bolt-on system – no drilling, cutting, or welding necessary for install
Up to 11.5″ front / 14” rear wheel travel with 35” tire fitment
Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

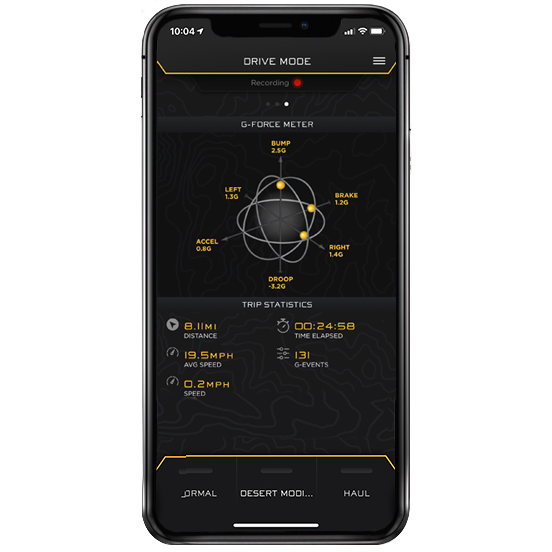

ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Adjustable coilovers yield up to 2-3″ of front lift height and 1.25-2.25” of rear lift height over stock 4-door Broncos with the Sasquatch package
PTFE lined spherical bearings and application specific mounting hardware
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8” diameter shafts

SKU: FRDK-K40018X Category: Suspension Lift Kit

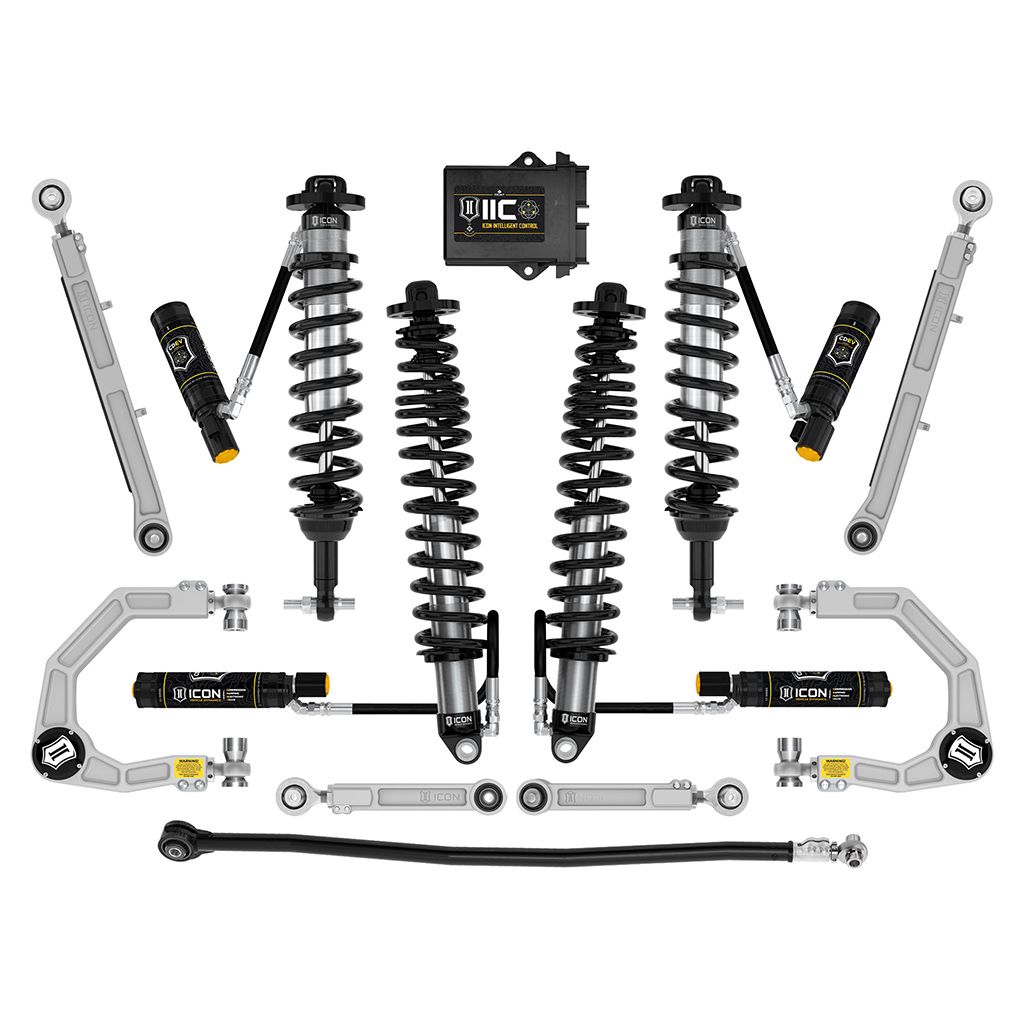

This Stage 8 kit comes with Billet Aluminum Upper Control Arms which provide on-vehicle caster and camber adjustability and feature our patented Delta Joint PRO, which allows for up to 90-degrees freedom of movement. The billet rear links have been designed to free up suspension bind, offer on-vehicle pinion angle adjustment, and optimize clearance from the fuel tank during maximum articulation and feature greaseless bushings and massive FK rod ends. The Adjustable Track Bar also features our dual-durometer greaseless bushing and an FK Rod End, as well as on-vehicle adjustability for perfectly aligning the Bronco's rear axle for any lift height. The rear CDEV coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This suspension system is designed to provide up to 11.5" of front suspension travel and 14" of rear suspension travel when used with 35X12.50 tires. It may be safely used with 37" and larger tires if using the optional up-travel limiters (sold separately).

Additional Attributes:

GTIN: 00840103424170
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3
Coil Spring End 1 Type: Square
Coil Spring End 2 Type: Square
Coils Quantity Front: 2
Coils Quantity Rear: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Damping Adjustment Type: Electronic
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Maximum Lift Front: 3
Maximum Lift Rear: 2.25
Minimum Lift Front: 2
Minimum Lift Rear: 1.25
OEM Wheels & Tires Fitment: No
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Progressive Dual Rate
Recommended Aftermarket Tires: 35″ x 12.50″ (37″ tires require coilover bump stop spacers along with minor trimming)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” BS / 0mm Offset
Reservoir Style: Remote
