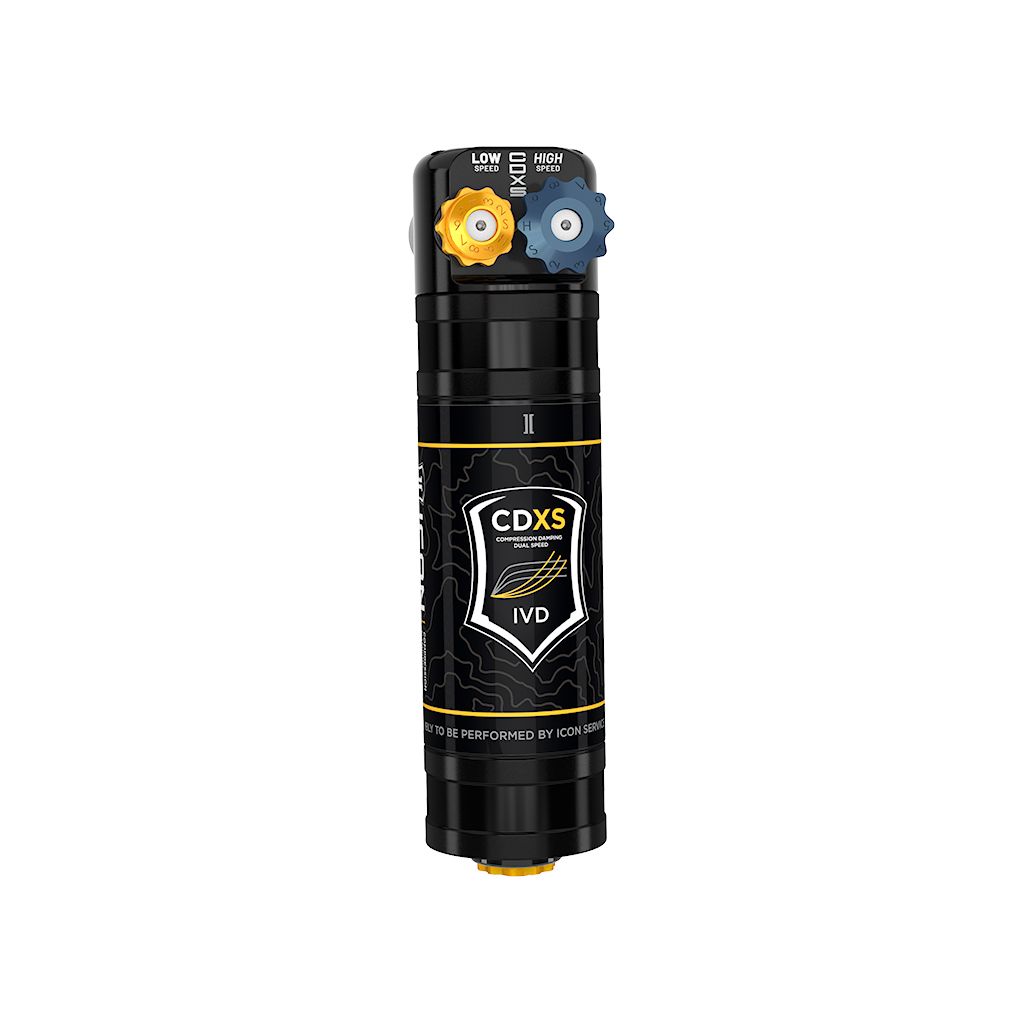

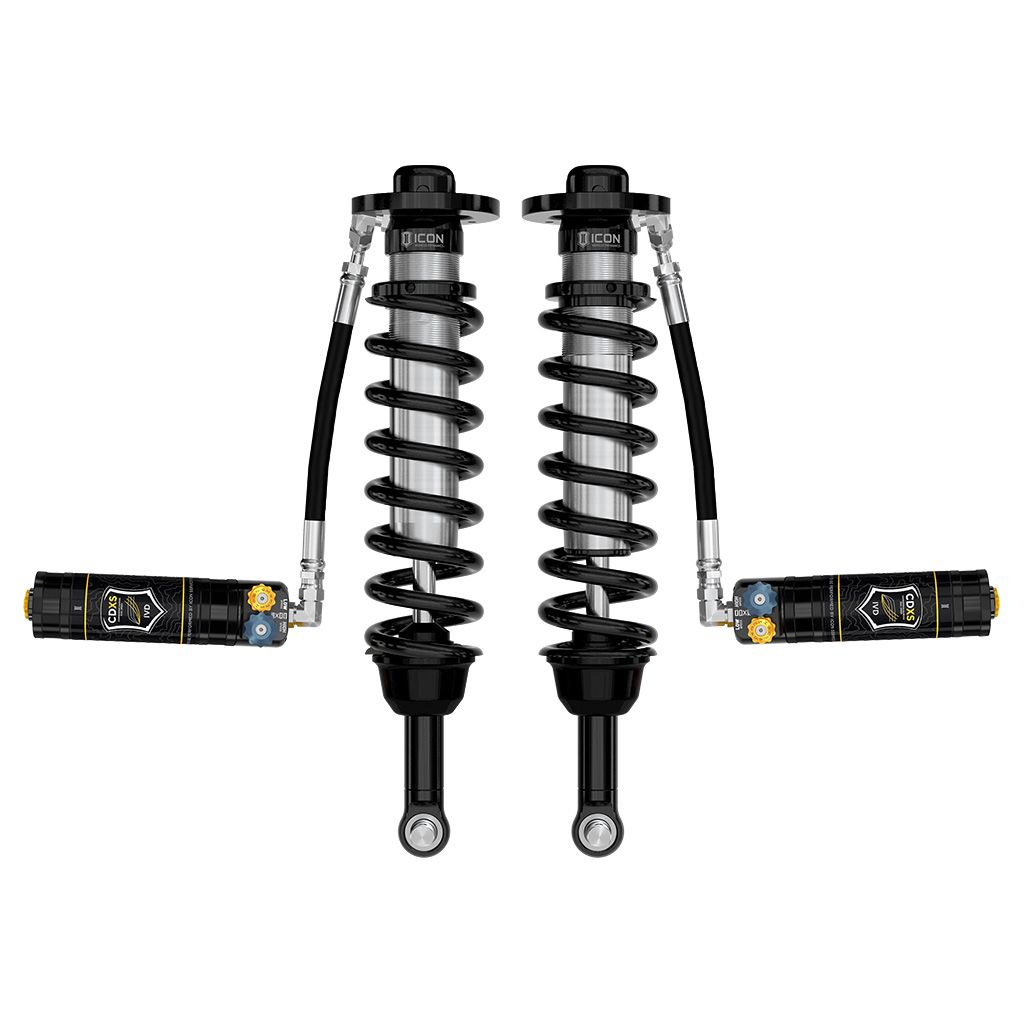

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDXS are an incredible upgrade for the front end of the 2021-2024 Ford F-150 4WD truck. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Dual Speed (CDXS) valves are included for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, with independent adjustability of high speed and low speed compression force. 10 discreet detented settings for both low and high-speed adjustment knobs allow separate adjustments for handling response and overall aggressiveness. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 2021-2024 F-150 4WD.
Additional Attributes:
GTIN: 00840103431949
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Dual Speed/Manual
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 2.75
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
Reservoir Style: Remote
Service Parts: 191016 – 7.5″ FINNED RESI UPGRADE KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 31.0000 x 13.0000 x 7.0000 inches
Weight: 64.0000 PG
I91823X_REVA
