ICON 2021-2024 Ford F-150 4WD, 0-2.75″ Lift, Stage 4 Suspension System, CDCV

$6,435.94

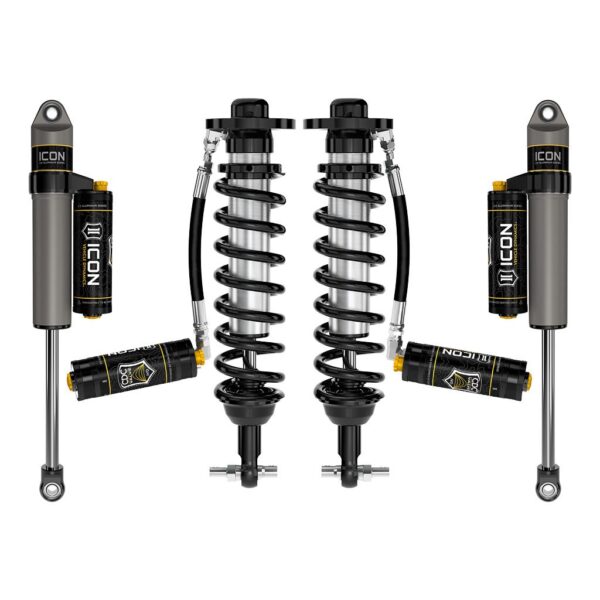

Stage 4 includes 2.5” coilovers with remote reservoirs with height adjustability from 0-2.75” of lift. ICON 2.5 Series piggyback rear rshocks balance the performance of the truck from front to rear. All shocks also include CDC Valves.

Increased wheel travel and ride quality over stock with no change in towing capacity
2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
100% Bolt-on system – no cutting or welding necessary for install
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Adjustable coilovers from 0-2.75″ of lift height
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
6061 Aircraft grade aluminum CNC machined components
High strength alloy CNC machined lower bar pins
FK rod end bearings for extended longevity and minimal deflection
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts

SKU: FRDK-K93114 Category: Suspension Lift Kit

ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.75” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Additional Attributes:

GTIN: 00840103431208
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 2.75
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Maximum Lift Front: 2.75
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 33″ x 11.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
