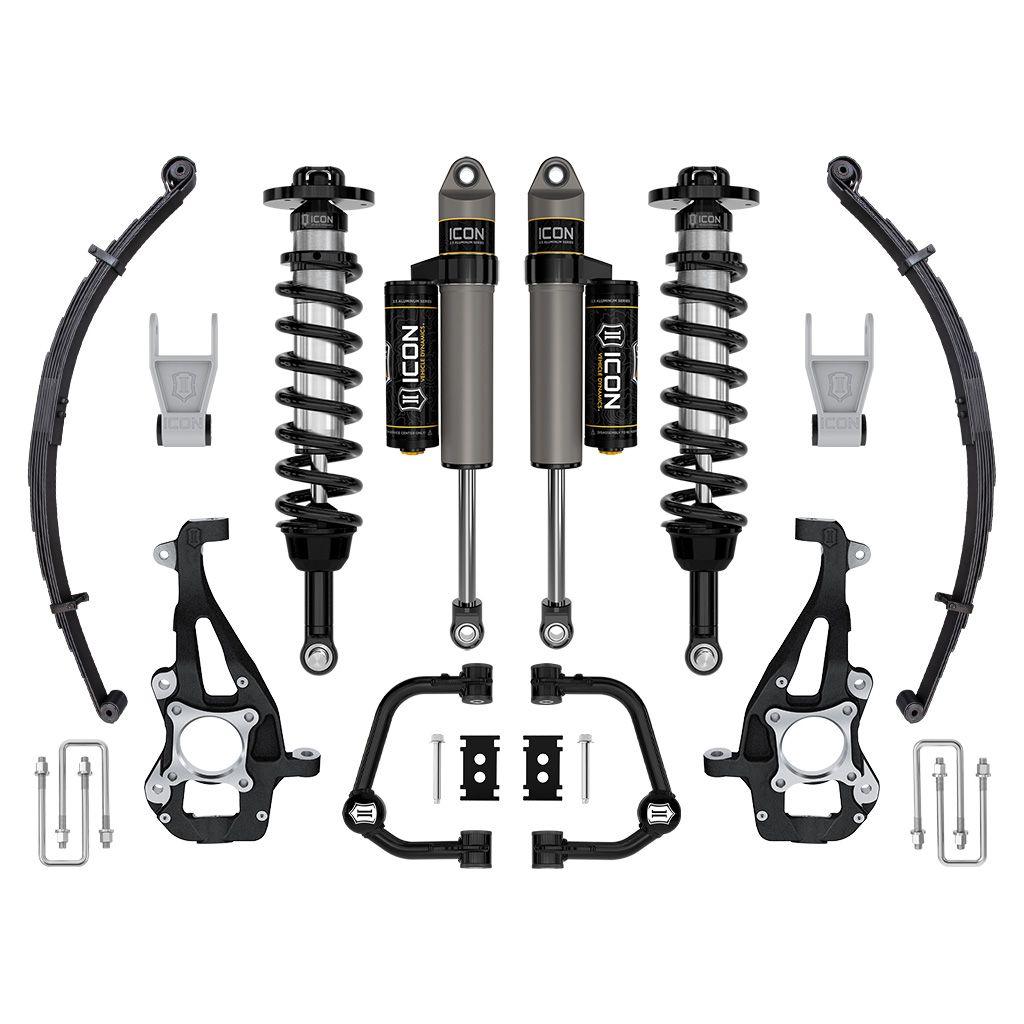

ICON 2021-2024 Ford F-150 4WD, 3.5-4.5″ Lift, Stage 2 Suspension System, Tubular, w/ Leaf Packs

$10,952.01

ICON suspension systems lift your Ford F-150 4WD while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
6061 Aircraft grade aluminum CNC machined components
3 user-adjustable rear spring rates for unique vehicle setups
Reduced rear axle wrap and improved ride quality compared to stock leaf springs
Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
100% Bolt-on system – no drilling, cutting, or welding necessary for install
Adjustable coilovers offer 3.5-4.5″ of front lift height over stock
Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range
20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8″ hardened chromed steel shafts

SKU: FRDK-K93142TL Category: Suspension Lift Kit

+1.50" rear lift height over stock w/ 400lb constant load

Additional Attributes:

GTIN: 00840103427362
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Front Reservoir Style: Internal
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Maximum Lift Front: 4.5
Maximum Lift Rear: 3.5
Minimum Lift Front: 3.5
Minimum Lift Rear: 1.5
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Rear Reservoir Style: Piggyback
Rear Shock Body Diameter: 2.5
Rear Spring Rate Type: Variable
Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 4.5
Leaf Spring Leaf Quantity: 8
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression: No
