ICON 2021-2024 Ford F-150 4WD/Tremor, 3.5-4.5"/2.5-3" Lift, Front, V.S. 2.5 Series Coilovers, Internal Reservoir, Pair

ICON 2021-2024 Ford F-150 4WD/Tremor, 3.5-4.5″/2.5-3″ Lift, Front, V.S. 2.5 Series Coilovers, Internal Reservoir, Pair

$3,071.17

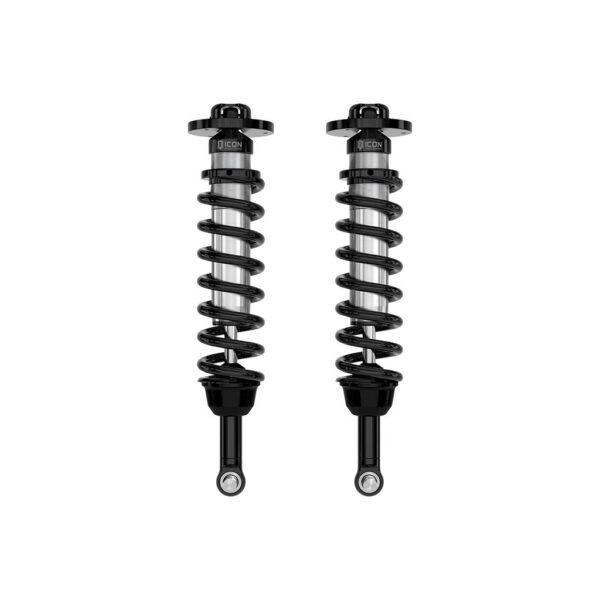

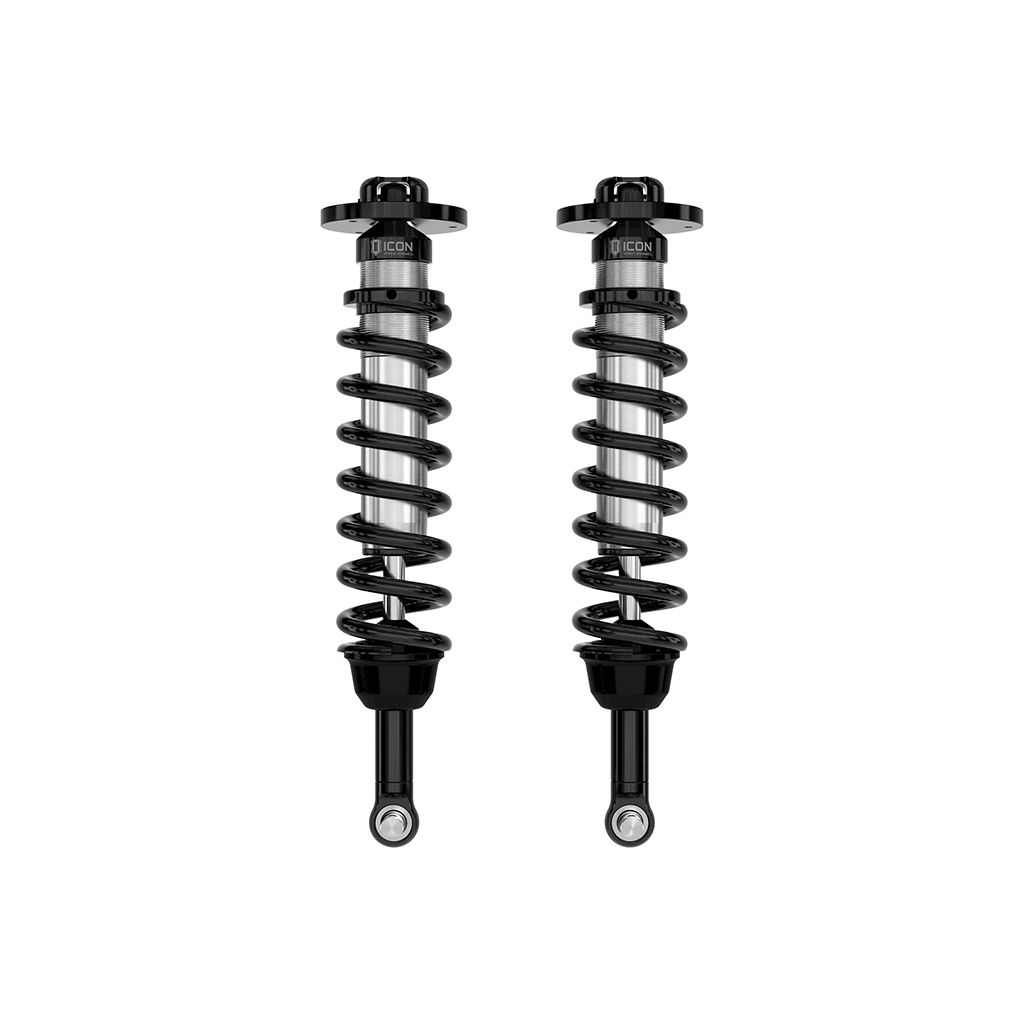

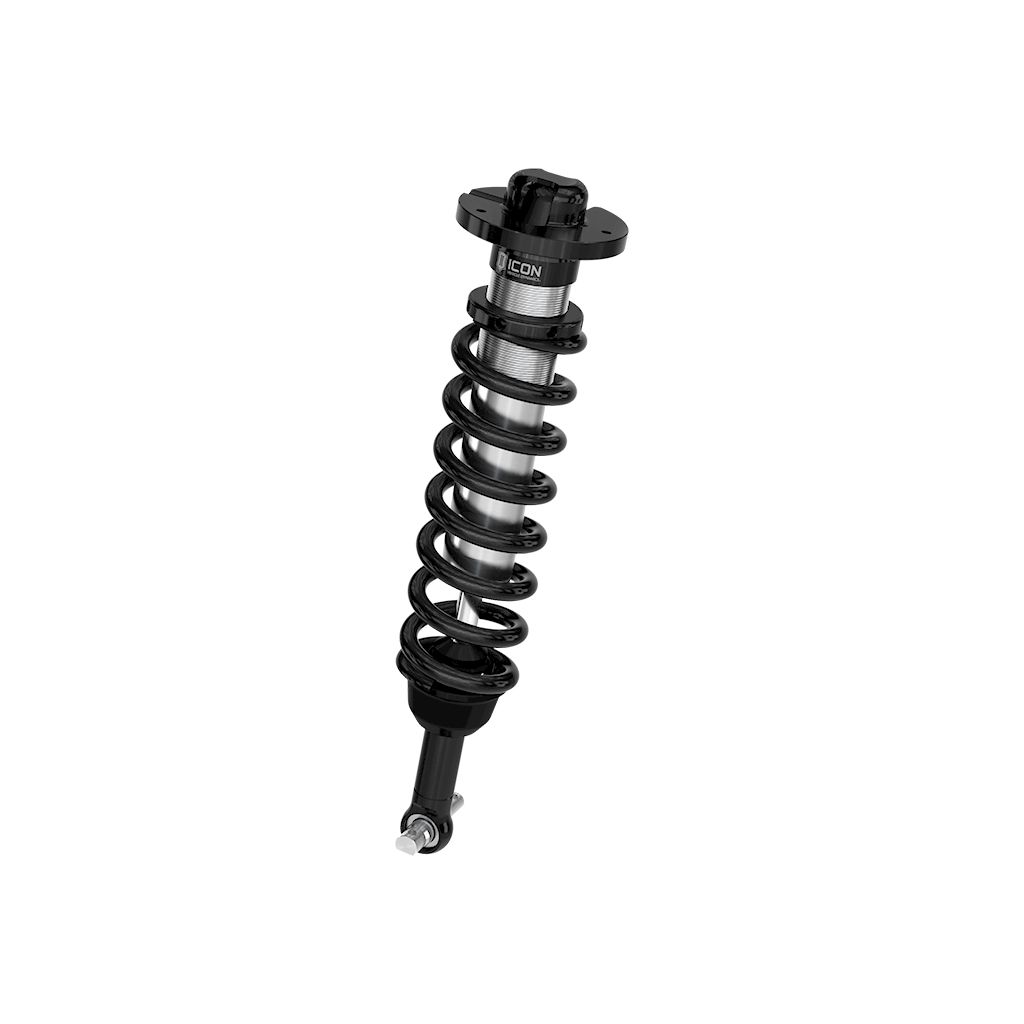

These ICON coilovers feature 2.5 Series shocks and coil springs optimized for this application. The shock’s larger 2.5” body and increased piston area improves damping ability and ride characteristics across varying types of terrain.

Application specific length for F-150 Tremor or other F-150 sub-models with ICON Front Knuckle Kit
High strength alloy CNC machined lower bar pin
100% Bolt-on – no drilling, cutting, or welding necessary for installation
Increased wheel travel and ride quality over stock
Vehicle specific tuned for superior shock damping and control
Adjustable for 2.5-3″ of lift height over stock on F-150 Tremor or 3.5-4.5″ over stock on other F-150 sub-models with ICON Front Knuckle Kit
Internal nitrogen reservoir ensures consistent performance under hard use
ICON engineered coil Springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock body with 7/8″ shaft
FK rod end bearings for extended longevity and minimal deflection

SKU: FRDK-91723 Category: Coilover Spring and Shock Assembly

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2024 Ford F-150 Tremor and F-150 4WD trucks equipped with ICON's Front Knuckle Kit. These coilovers feature an application specific length for F-150 Tremor or other F-150 sub-models equipped with ICON’s Front Knuckle Kit, allowing the most wheel travel possible as well as a taller lift height range than other ICON coilover options. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.5-3” of lift height adjustability on F-150 Tremor or 3.5-4.5” of lift height adjustability on other F-150 sub-models allow the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150.

Additional Attributes:

GTIN: 00840103425658
Valving Type: Digressive
Adjustable Compression: No
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Rebound: No
Dust Shield Included: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Damping: NO
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 4.5
Minimum Lift: 3.5
OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Tires: 34″ x 12.50″ (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
Remote Reservoir: NO
Reservoir Style: Internal
Service Parts: 252001 – 2.5 FIXED SPANNER WRENCH
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
