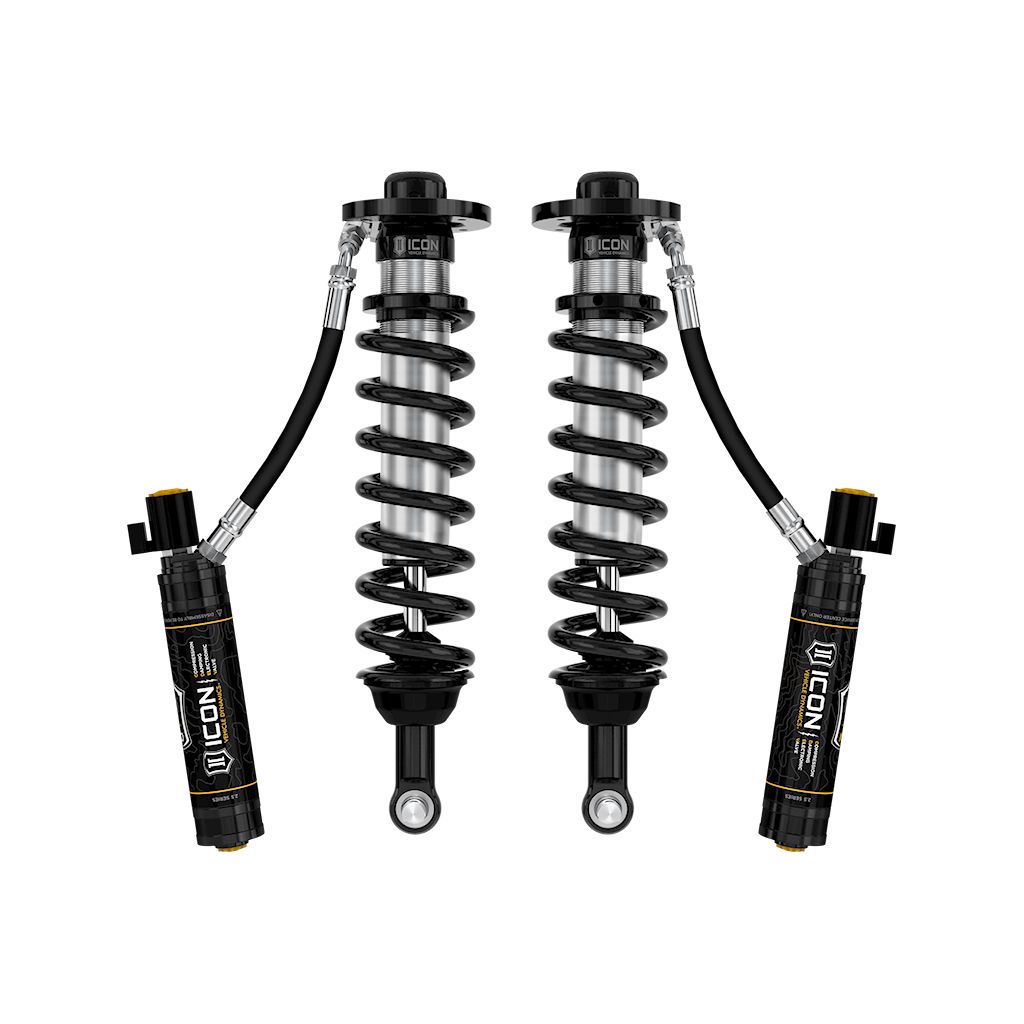

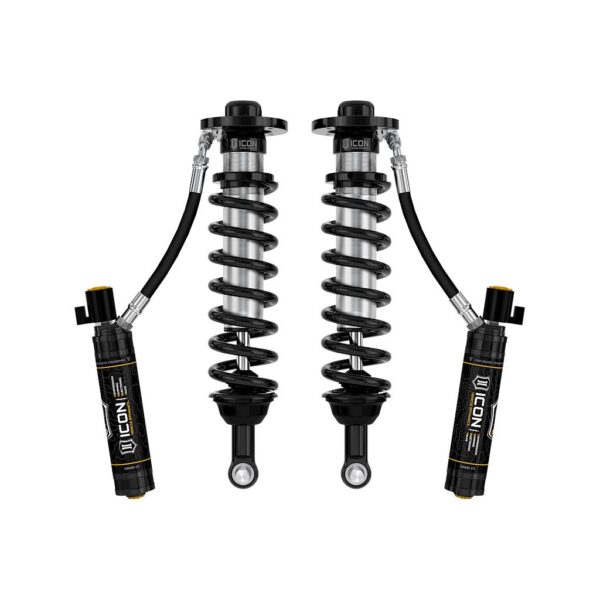

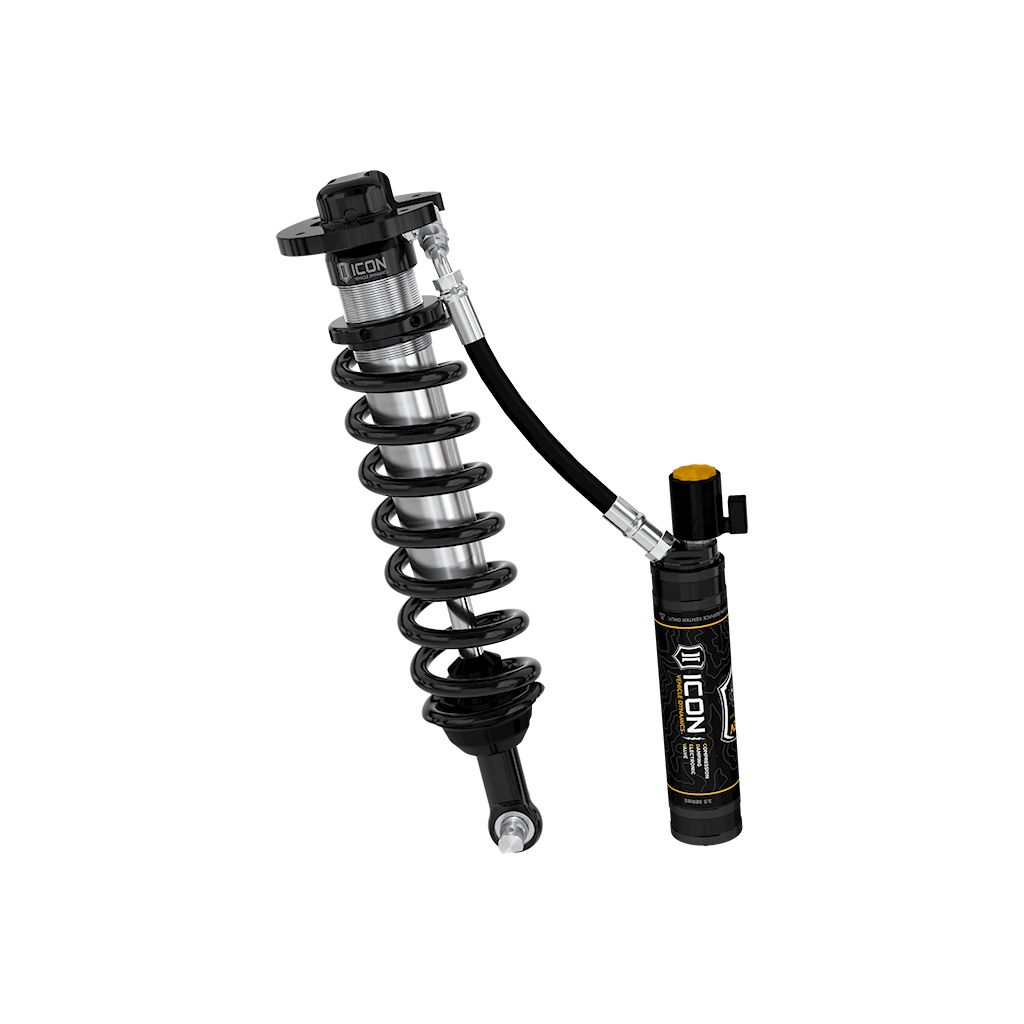

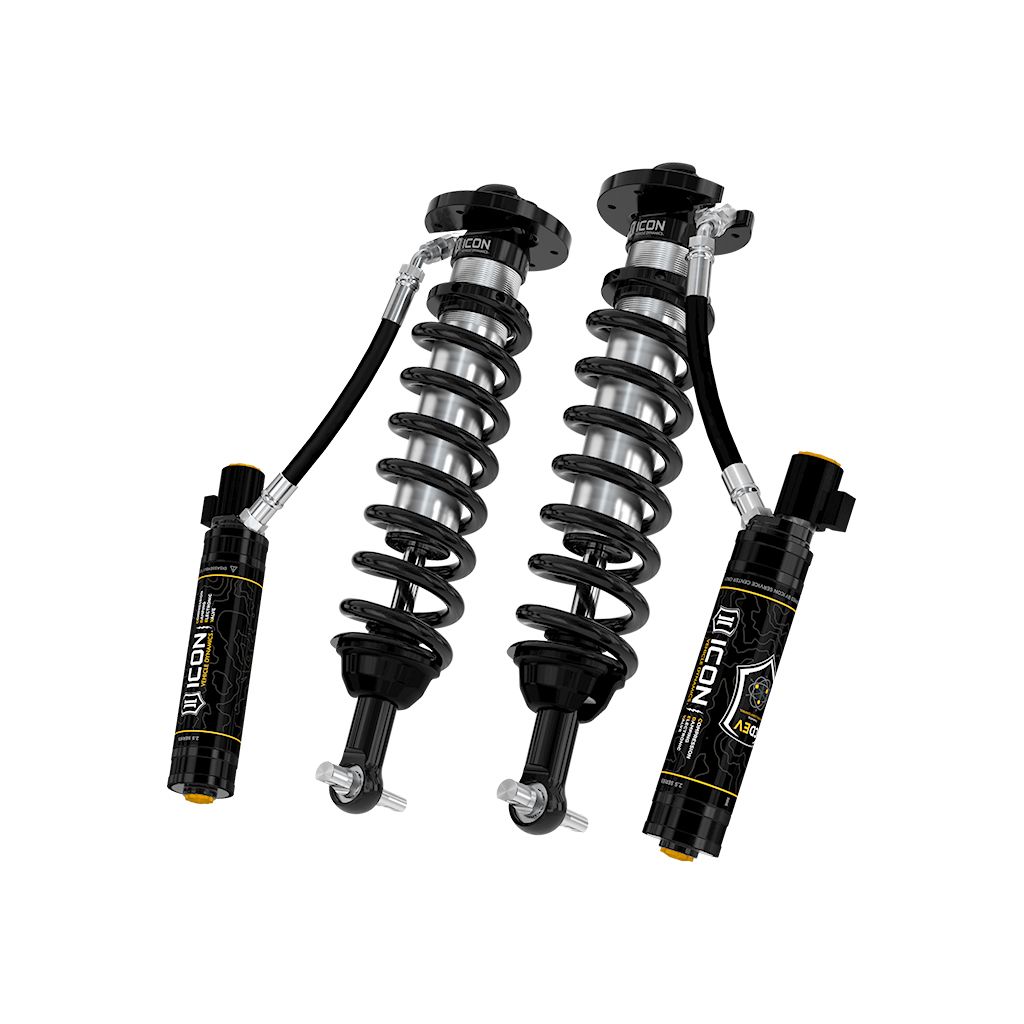

ICON 2022-2023 Ford F-150 Lightning, Lowered 0-2", 2.5 VS Remote Reservoir CDEV Coilover Kit, Front

Assemblage ressort et amortisseur coilover

ICON 2022-2023 Ford F-150 Lightning, Lowered 0-2″, 2.5 VS Remote Reservoir CDEV Coilover Kit, Front

$4,913.92

ICON’s vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance with a lowered stance.

Height-adjustable coilovers offer 0-2″ of lowered height adjustment
FK Rod End bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
100% Bolt-on – no cutting or welding necessary for installation
Vehicle specific tuned front shocks for superior shock damping and vehicle control
ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Remote reservoir to maintain cooler operating temperatures and house CDE Valves
Increased compression travel compared to stock
ICON engineered coil springs with opmized spring rates for improved ride quality
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8″ induction hardened, chrome plated shafts
High strength alloy CNC machined lower bar pins

SKU: FRDK-91831E Category: Assemblage ressort et amortisseur coilover

Take control of your suspension like never before with the power of ICON Intelligent Control and the proprietary ICON mobile app. This innovative system leverages information from the onboard G-force sensor and gyroscope, utilizing cutting-edge algorithms and user-defined settings to predict terrain and actively adjust shock damping settings via CDEV accordingly. When combined with ICON 2.5 Series CDEV rear coilovers, your vehicle's control will be balanced front to rear, providing you with the ultimate driving experience for your F-150 Lightning.

Additional Attributes:

GTIN: 00840103423616
Spring Material: Steel
Adjustable Height: Yes
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Flat on Bar Pin
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: BAR PIN
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Body Diameter: 2.5
Adjustable Damping: Yes
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191009 – ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Drop: 2
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 33″ x 12.00″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: 20×9″ with 6” Backspace / 25mm Offset
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
