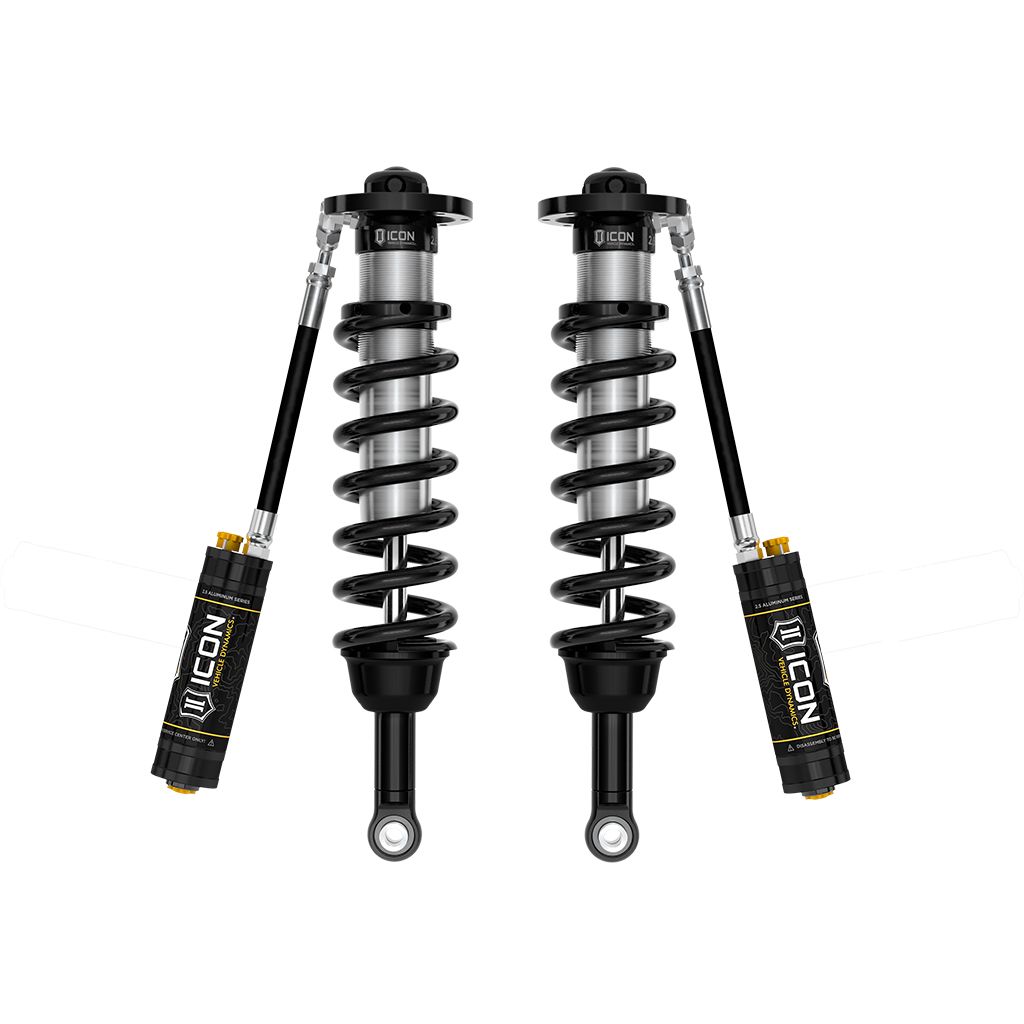

ICON 2022-2024 Toyota Tundra, 5-6″ Lift, Front, V.S. 2.5 Series Coilover Kit, Remote Reservoir w/ CDCV, Pair

$3,958.66

ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.

Increased wheel travel and improved ride quality over stock
FK rod end bearings for extended longevity and minimal deflection
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
Specific length designed for use with ICON 6″ Lift Performance Suspension System
Adjustable ride height offers 5-6″ of front lift over stock
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON CDCV equipped for 10 settings of external compression damping adjustment
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8″ diameter shafts

SKU: FRDK-58771C Category: Coilover Spring and Shock Assembly

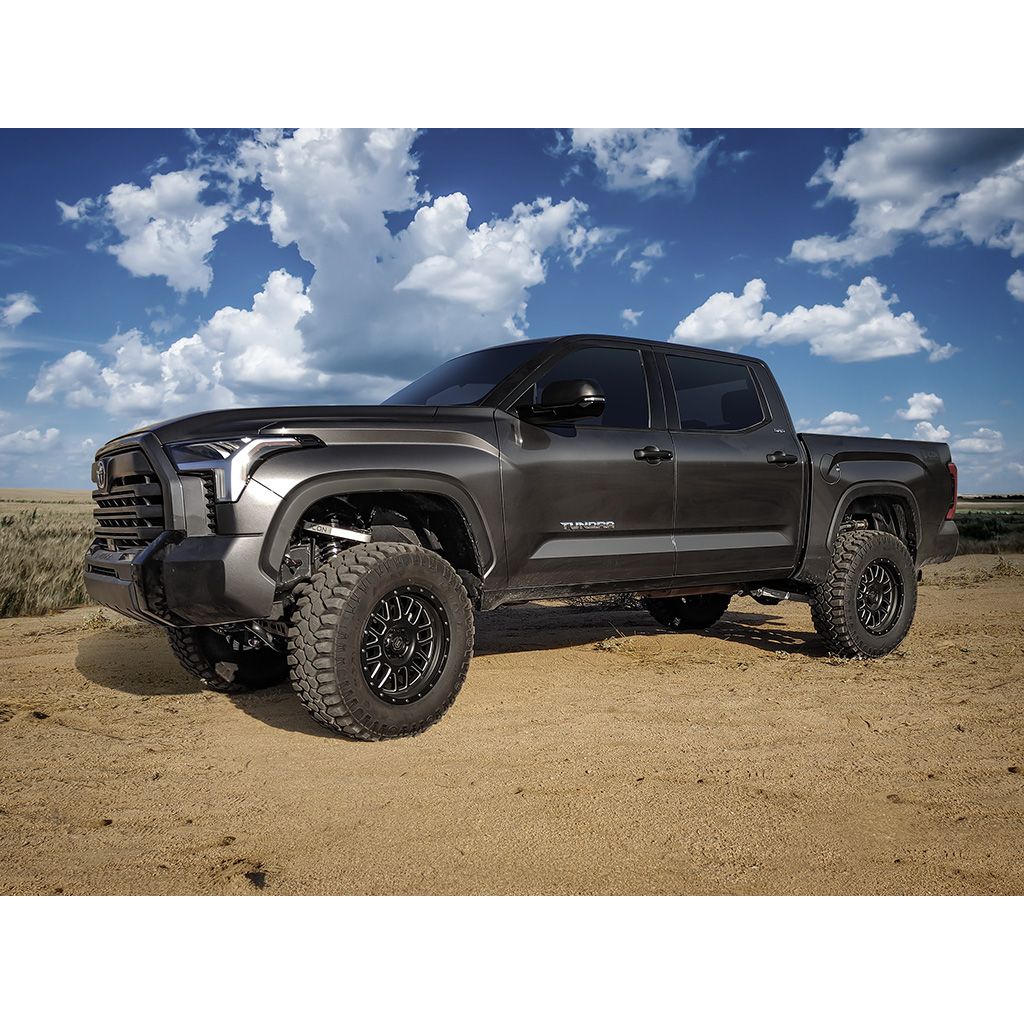

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2024 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.

Additional Attributes:

GTIN: 00840103425634
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Passive
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Cylinder Color: Silver
Body Diameter: 2.5
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 198000 – 2 PIN COILOVER SPANNER WRENCH KIT
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Finish: Cadmium Plated
Damping Adjustment Type: Manual
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 6
Minimum Lift: 5
OEM Wheels & Tires Fitment: No
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: 20×9″ w/ 5.625” Backspace / 16mm Offset
Reservoir Style: Remote
Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear
