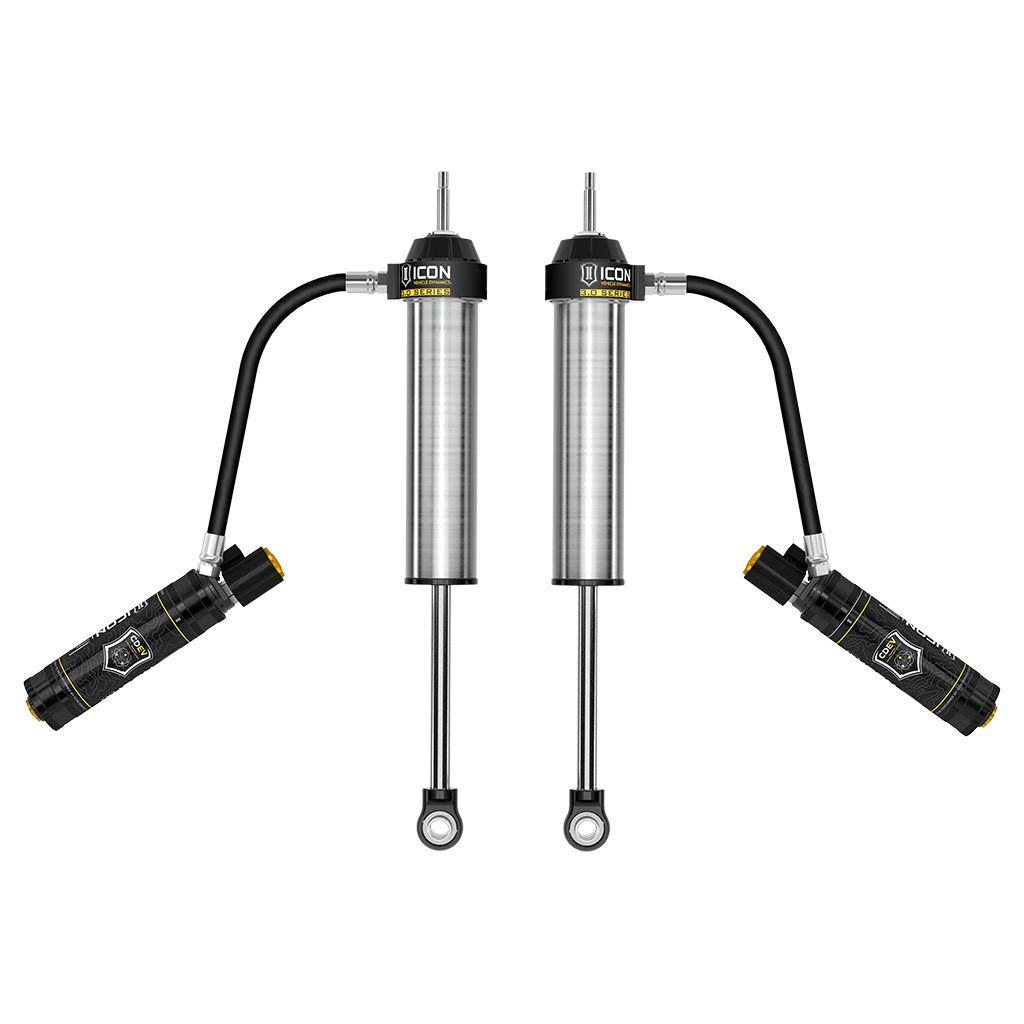

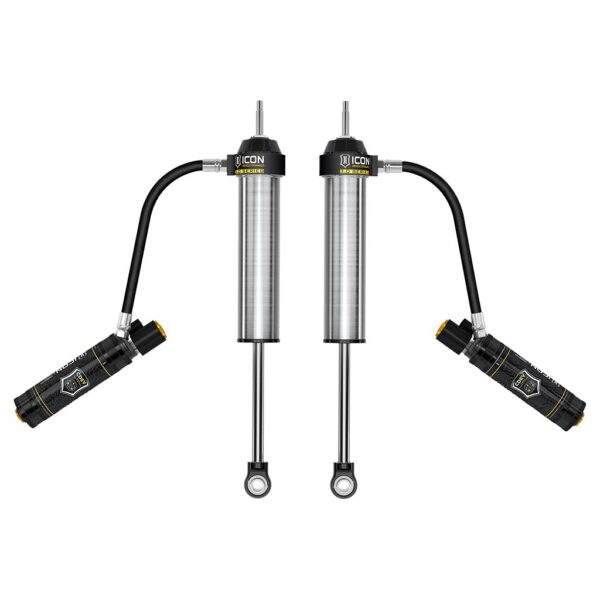

These 3.0 Series Shocks are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Compatible with rear lift heights from 0-1.5” over stock on Tundra or up to 3" of rear lift on Sequoia, allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
Additional Attributes:
GTIN: 00840103421308
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 3
Adjustable: Yes
Shock Absorber Rod End Measuring Point: Center of Eyelet
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: Eyelet
Upper Mount Type: Stem
Boot Included: NO
Gas Charged: Yes
Bore Diameter: 2.75
Includes Bump Stop: No
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Active
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Grey
Cylinder Diameter: 3
Cylinder Material: Steel
Damping Adjustment Type: Electronic
Damping Type: Oil
External Reservoir: Yes
Reservoir Type: Remote
Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Shaft Material: Chrome
Valving Type: Linear/Digressive
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 31.0000 x 13.0000 x 7.0000 inches
Weight: 43.0000 PG
I57845EP_REVA
