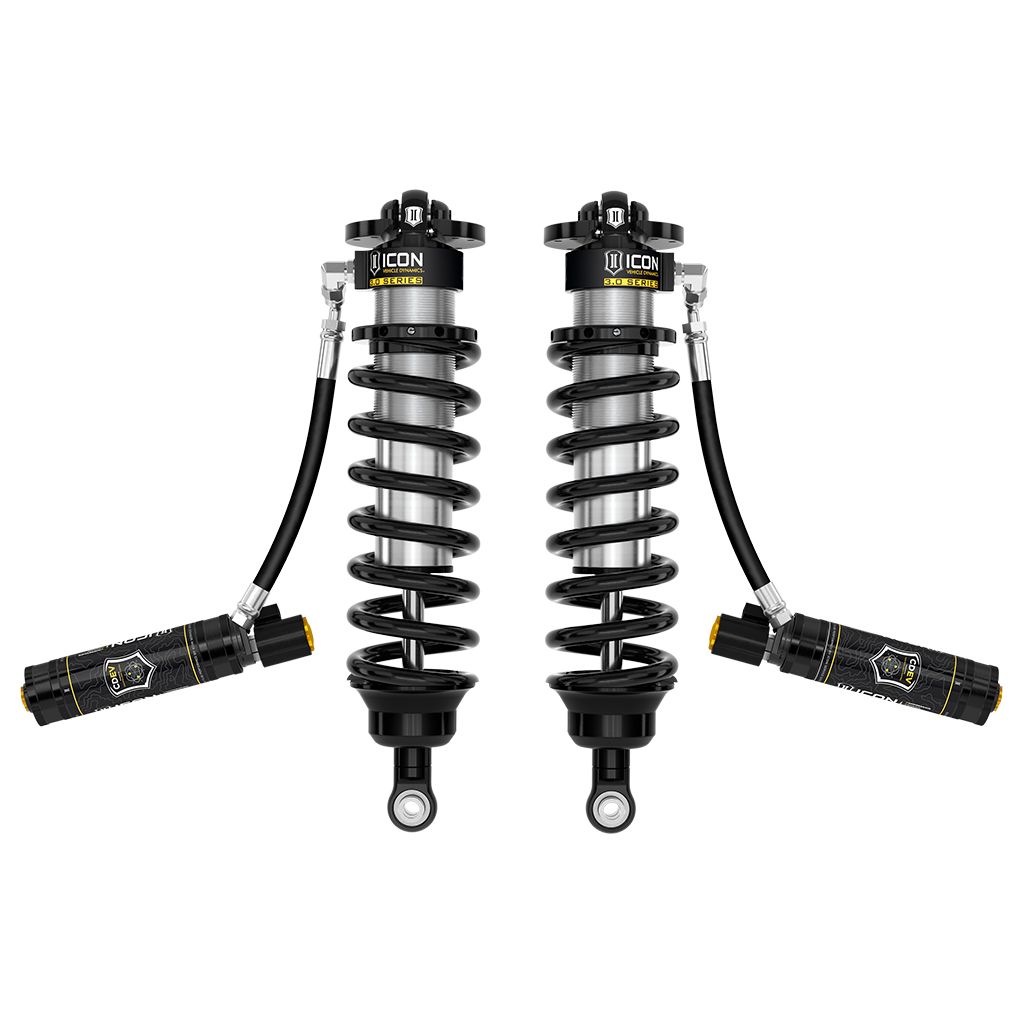

ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair
ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair

ICON 2022-2025 Toyota Tundra 1.25-3.25″ Lift/2023-2025 Sequoia 3-4.25″ Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair

$6,668.92

ICON’s Vehicle-specific shock length and valving along with the larger 3.0” shock body and increased piston area over stock yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road.

  • 40% increase in front wheel travel over stock
  • Fully Rebuildable and Re-tunable
  • Adjustable up to 1.25-3.25″ of front lift height over stock on Tundra or 3-4.25″ of front lift on Sequoia
  • Vehicle specific design and tuning for superior shock damping and control
  • 3.0” Body diameter for increased oil volume and larger piston area
  • ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

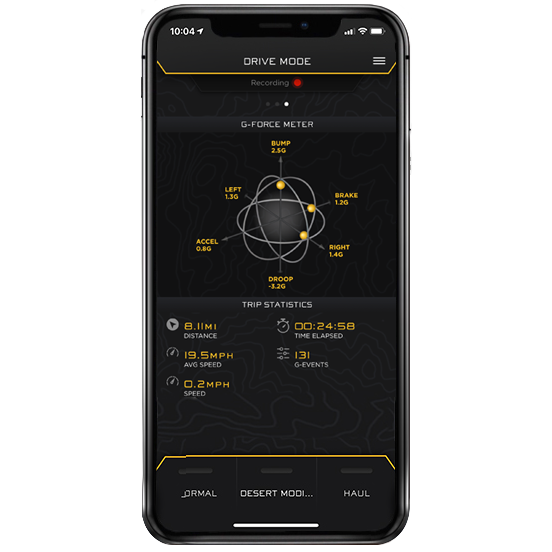

  • ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • CNC machined 6061 aluminum components with a black anodized finish
  • PTFE lined spherical bearings for extended longevity and minimal deflection
  • 7/8” diameter induction hardened, chrome plated shock shafts
SKU: FRDK-58775E Category:

These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. Built-in ride height adjustability yields 1.25 to 3.25” of front lift height on Tundra or 3-4.25" of front lift on Sequoia allowing for the fitment of larger, more aggressive wheel and tire combinations. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.

Additional Attributes:

GTIN: 00840103421292
Valving Type: Digressive
Adjustable Compression: Yes
Self-Leveling: No
Active or Passive Suspension: Active
Cylinder Finish: Ceramic Coated
Spring Material: Steel
Cylinder Material: Steel
Adjustable Height: Yes
Internal Construction Type: Single Tube
Grade Type: Performance
Shock Absorber Rod End Measuring Point: Center of Eyelet
Shock Absorber Body End Measuring Point: Top of Upper Mount Plate
Lower Mount Type: Eyelet
Upper Mount Type: Mounting Plate
Boot Included: No
Gas Charged: Yes
Body Diameter: 3
Adjustable Damping: Yes
Adjustable Rebound: No
Dust Shield Included: No
Remote Reservoir: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 53508 – 22-25 TUNDRA/23-24 SEQUOIA IIC INSTALL KIT
Adjustable: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: Yes
Cylinder Color: Gray
Damping Adjustment Type: Electronic
Damping Type: Oil
Dust Shield: No
Material: Aluminum
Maximum Lift: 3.25
Minimum Lift: 1.25
OEM Wheels & Tires Fitment: Yes
Reservoir Style: Remote
Service Parts: 254100G – 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter: 0.875
Spring Color: Black
Spring Rate Type: Linear

Extended Information:

Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order

Packaging:

Quantity of Each: 1.0
Package UOM: EA
Dimension: 31.0000 x 13.0000 x 8.0000 inches
Weight: 81.0000 PG

PDF:

Weight 36.74 kg
Dimensions 31.0000 × 13.0000 × 8.0000 cm
