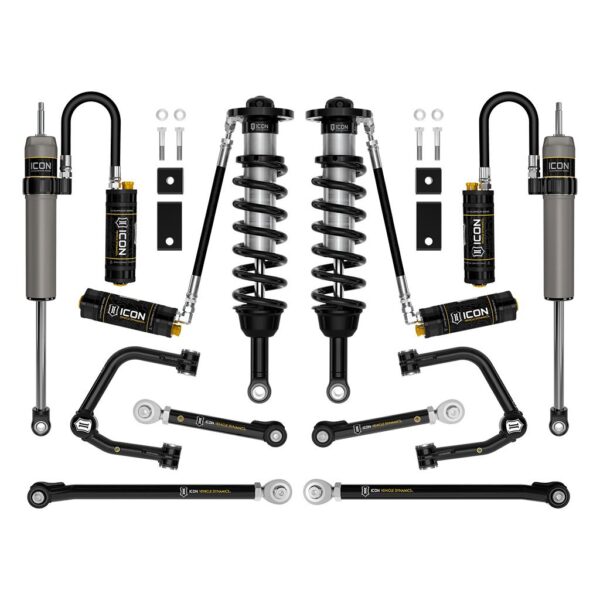

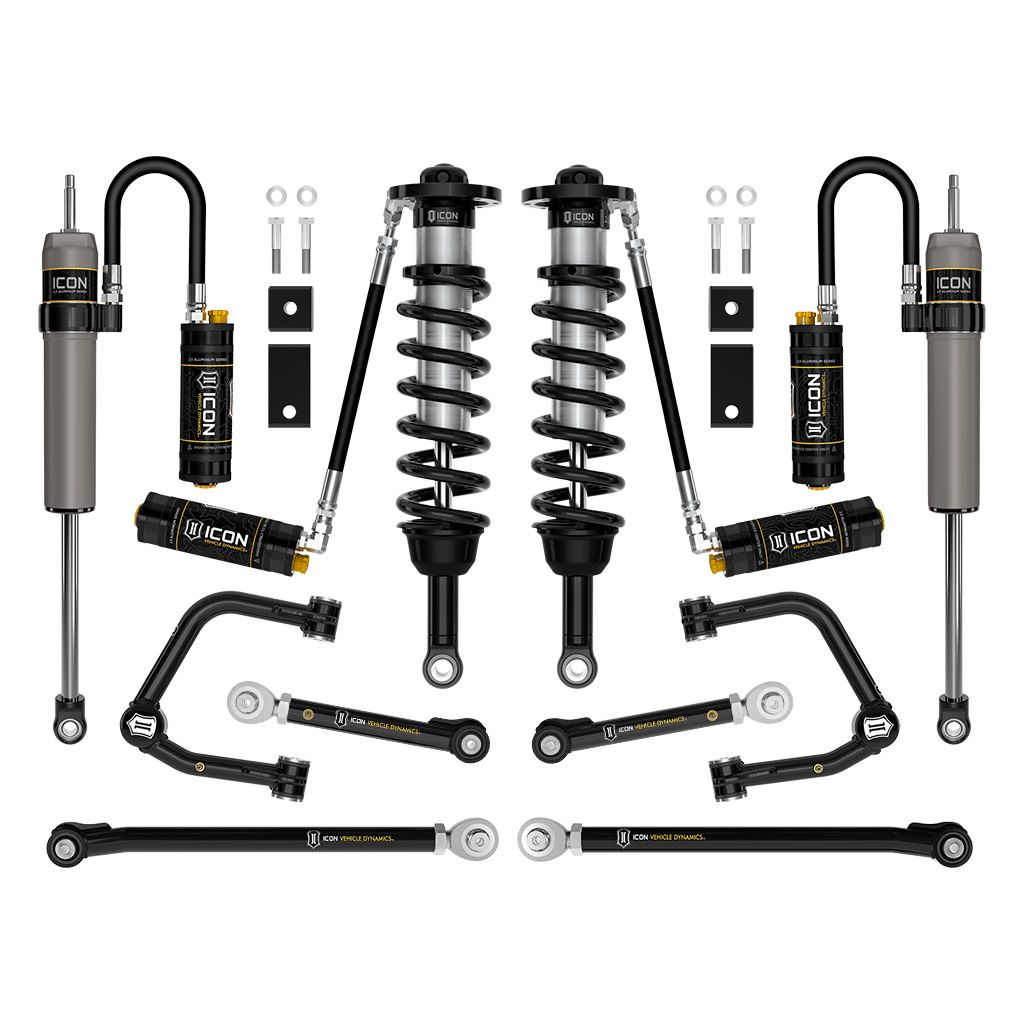

ICON 2022-2025 Toyota Tundra, 2-3.5″ Lift, Stage 10, 2.5 Suspension System, Tubular

$10,731.42

Stage 10 includes remote reservoir coilovers for 1.25-3.5” of front lift, better off-road performance and 35” tire fitment. Tubular UCAs, links and 2.5 Series remote reservoir shocks for balanced shock tuning. CDCV for damping adjustment.

Vehicle specific design for 2022-2025 Toyota Tundra
2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable
2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Adjustable front ride heights from 2-3.5” of front lift over stock when used with included tubular UCAs
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment

SKU: FRDK-K53200T Category: Suspension Lift Kit

Rounding out the Stage 10 suspension system are 2.5 Aluminum Series rear remote reservoir shocks specially tailored for the 2022-2025 Tundra. The 2.5 Aluminum Series shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. They also feature a unique internal Bump Zone that when used creates an additional 20% of damping force to help better control hard bottom outs. Also equipped with CDC Valves, these offer 10 settings of compression damping adjustment from soft to hard. Their pairing with the ICON V.S. 2.5 Series CDCV front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tundra.

Additional Attributes:

GTIN: 00840103420783
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3.5
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191003 – ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression: Yes
Adjustable Control Arm: Yes
Adjustable Damping: Yes
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Reservoir Style: Remote
Front Shock Body Diameter: 2.5
Front Spring Rate Type: Linear
Maximum Lift Front: 3.5
Minimum Lift Front: 2
OEM Wheels & Tires Fitment: Yes
Rear Reservoir Style: Remote
Rear Shock Body Diameter: 2.5
Recommended Aftermarket Tires: 35″ x 12.50″ (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels: 17×8.5″ w/ 5.75” Backspace / 25mm Offset
Reservoir Style: Remote
