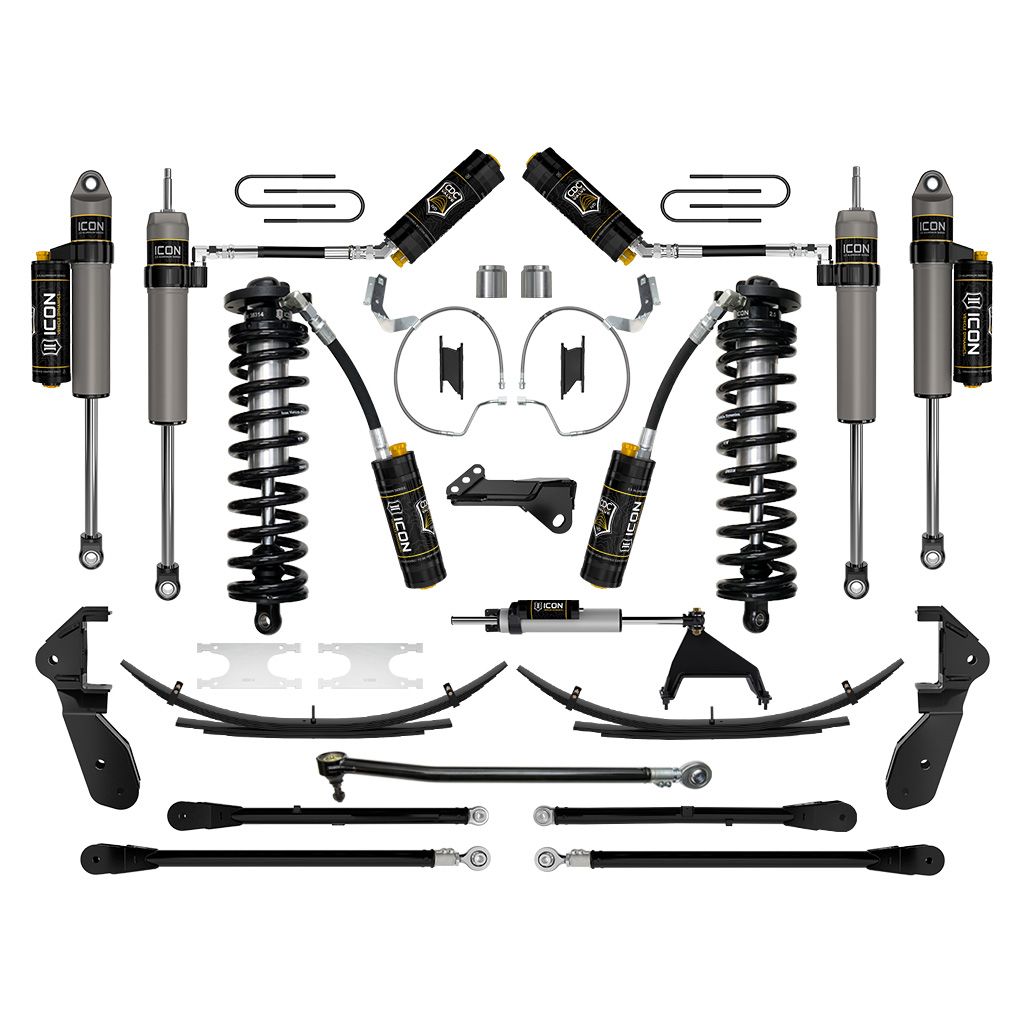

ICON 2023 Ford F-250/F-350 Super Duty 4WD, 4-5.5″ Lift, Stage 7 Coilover Conversion System w/ Expansion Packs

$20,521.81

ICON 4.5” suspension systems lift your Ford Super Duty while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Fits 2023 F-250 / F-350 4WD applications
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2″ of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8″ shafts
Corrosion resistant hard anodized steering stabilizer, front-secondary, and rear shock bodies with 7/8″ shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5″ of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Front, front-secondary, and rear shocks are all ICON CDCV equipped for 10 settings of external compression damping adjustment
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel

SKU: FRDK-K63177L Category: Suspension Lift Kit

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Additional Attributes:

GTIN: 00840103428376
Spring Material: Steel
Bushings Included: Yes
Mounting Hardware Included: Yes
Spring Color: Black
Shocks Included: Yes
Grade Type: Performance
Leaf Spring Leaf Quantity: 7
Coils Quantity Front: 2
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 191014 – .25″ COLLAR SPANNER PIN WRENCH
Adjustable Damping: Yes
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front: 2
Damping Adjustment Type: Manual
Front Spring Rate Type: Linear
Maximum Lift Front: 6
Maximum Lift Rear: 2
Minimum Lift Front: 3
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5” Backspace / 6mm Offset
