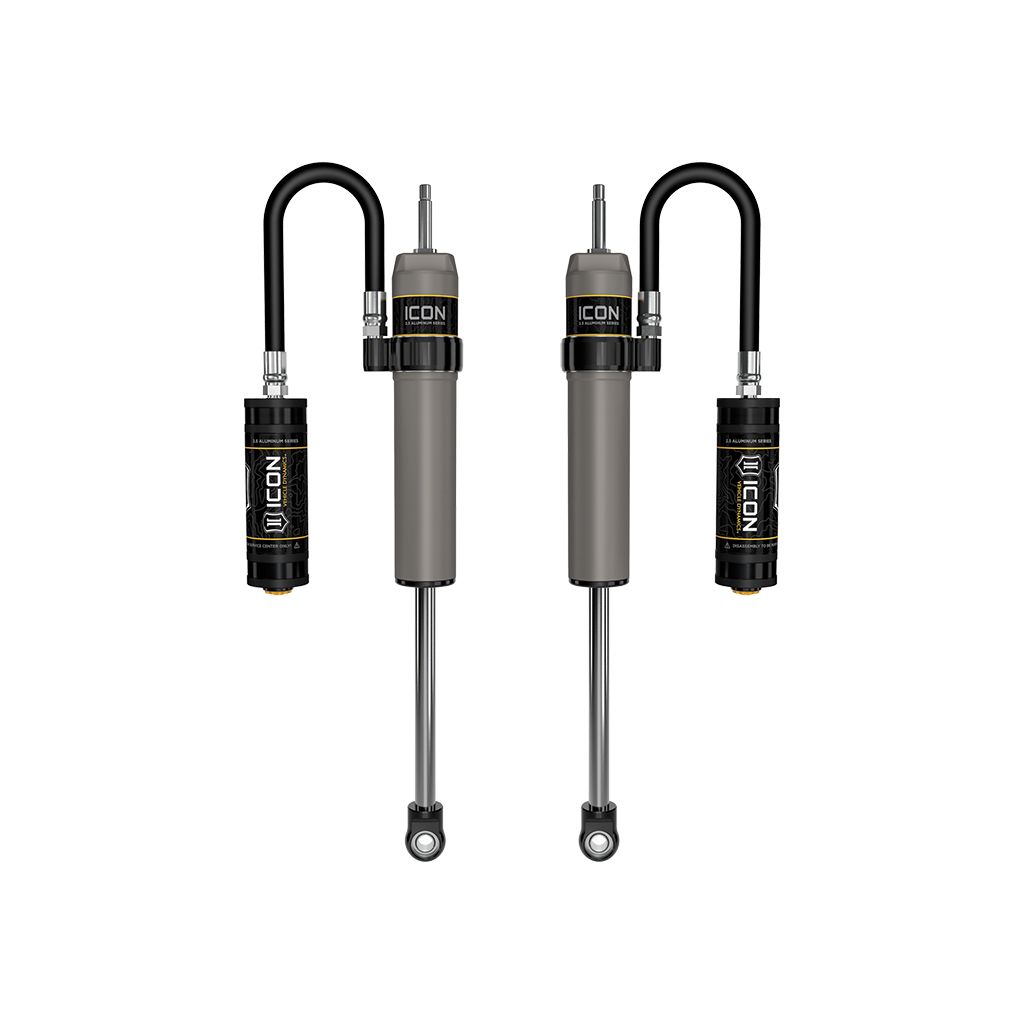

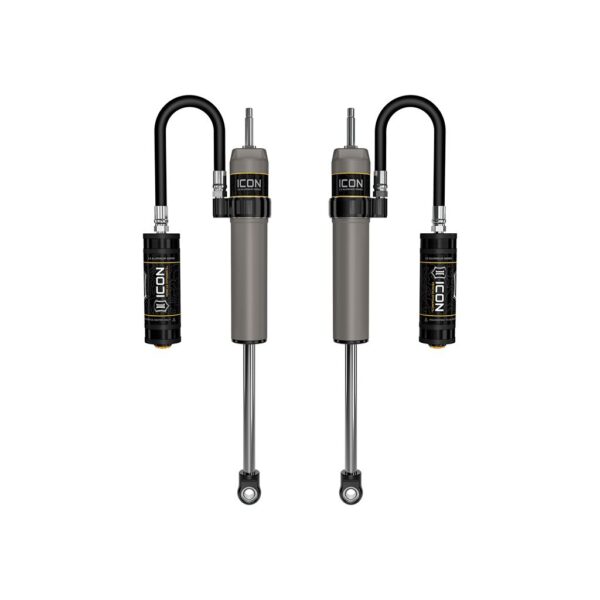

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.
Additional Attributes:
GTIN: 00840103430515
Mounting Hardware Included: Yes
Grade Type: Performance
Tube Outside Diameter: 2.5
Adjustable: No
Shock Absorber Rod End Measuring Point: Center of Eylet
Shock Absorber Body End Measuring Point: Shoulder of Stem
Lower Mount Type: Eyelet
Upper Mount Type: Stem
Boot Included: Yes
Gas Charged: Yes
Bore Diameter: 2.25
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable Compression: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color: Gray
Cylinder Diameter: 2.5
Cylinder Material: Aluminum
Damping Type: Oil
External Reservoir: Yes
Service Parts: 252011 – 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter: 0.875
Shaft Material: Chrome
Valving Type: Digressive
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 39.0000 x 15.0000 x 9.0000 inches
Weight: 32.0000 PG
I57870P_REVA
