ICON 21-23 Bronco HOSS 1.0 Pkg, 1.375-3" Lift Stage 2 Suspension System, Tubular

ICON 21-23 Bronco HOSS 1.0 Pkg, 1.375-3″ Lift Stage 2 Suspension System, Tubular

$5,099.86

ICON suspension systems lift your Ford Bronco while improving ride quality and performance. With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
100% Bolt-on – no cutting or welding necessary for installation
Fully rebuildable and re-tunable
Vehicle specific tuned shocks for superior shock damping and vehicle control

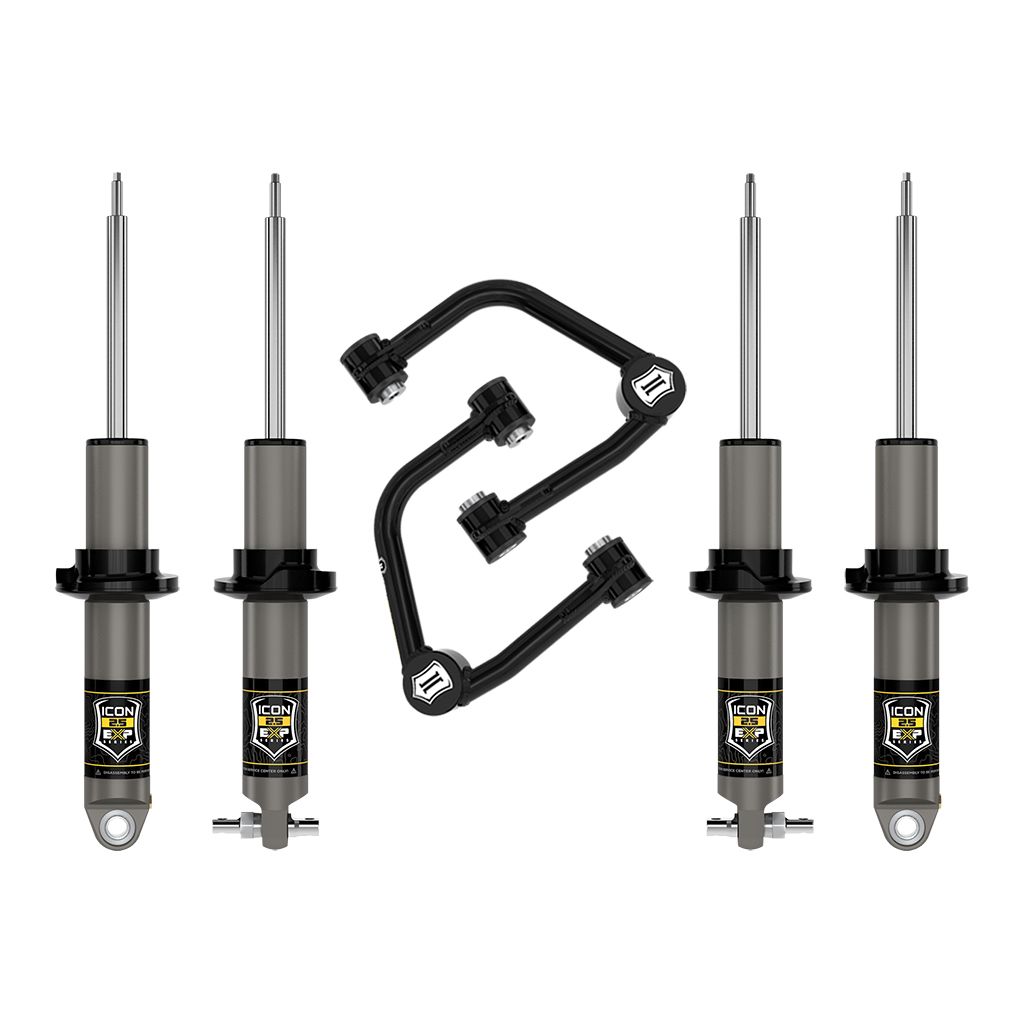

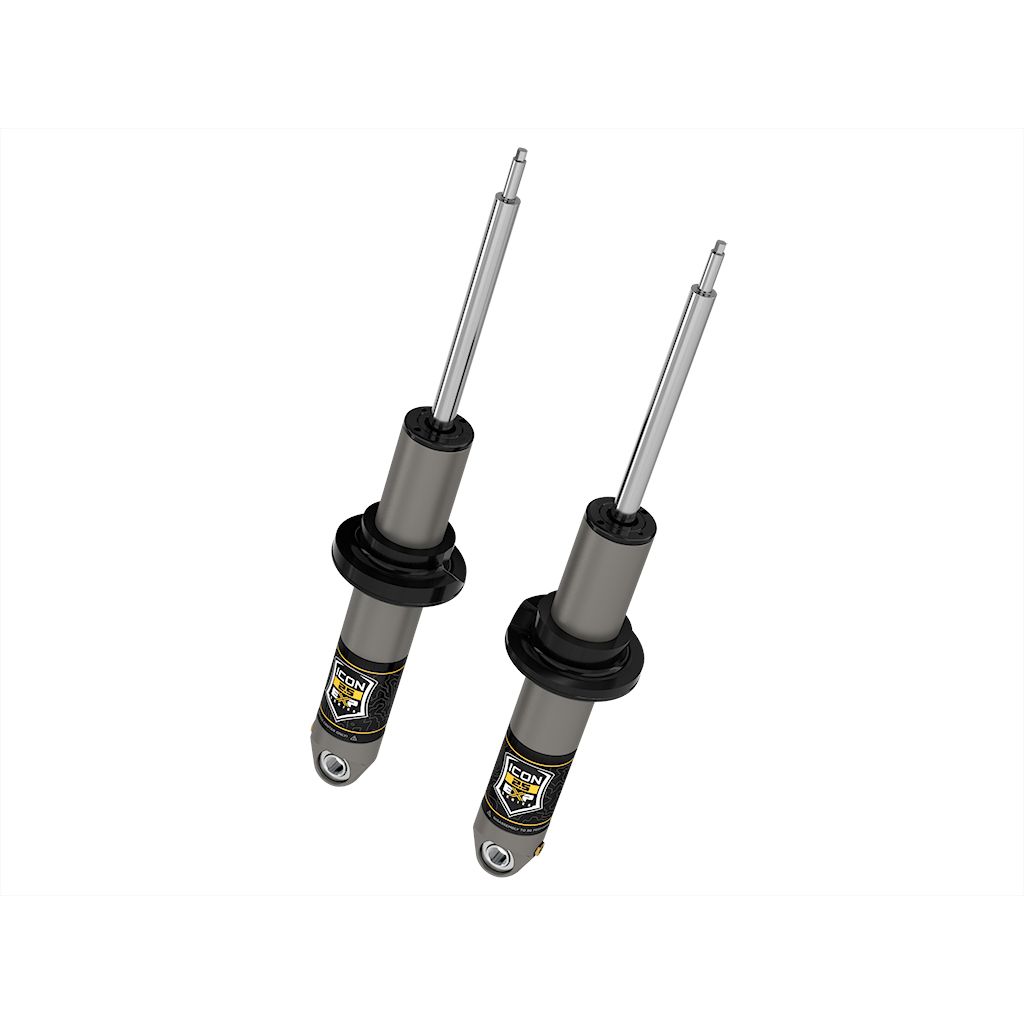

Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
Adjustable ride heights from 1.375-3” of front lift and 1.5-2.25″ of rear lift over stock with the use of snap rings
Utilizes factory coils and coil hardware
Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
CNC machined 6061 aluminum components with a black anodized finish
PTFE lined spherical bearings for extended longevity and minimal deflection

SKU: FRDK-K40002T Category: Suspension Lift Kit

HOSS 1.0 is Ford's "base" suspension system for Broncos with the Base, Big Bend, Outer Banks and Black Diamond trim levels WITHOUT the Sasquatch package. HOSS 1.0 is most easily identified by the BLACK shock bodies of the OE shocks.

Additional Attributes:

GTIN: 00840103420899
Bushings Included: Yes
Mounting Hardware Included: Yes
Shocks Included: Yes
Grade Type: Performance
Maximum Lift: 3
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Active or Passive Suspension: Passive
Add-On Part: 191013 – NIPPLE GREASING ADAPTER KIT
Adjustable Compression: No
Adjustable Control Arm: No
Adjustable Damping: No
Adjustable Rebound: No
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Front Shock Body Diameter: 2.5
Maximum Lift Front: 3
Maximum Lift Rear: 2.25
Minimum Lift Front: 1.375
Minimum Lift Rear: 1.5
Rear Shock Body Diameter: 2.5
Reservoir Style: Internal
