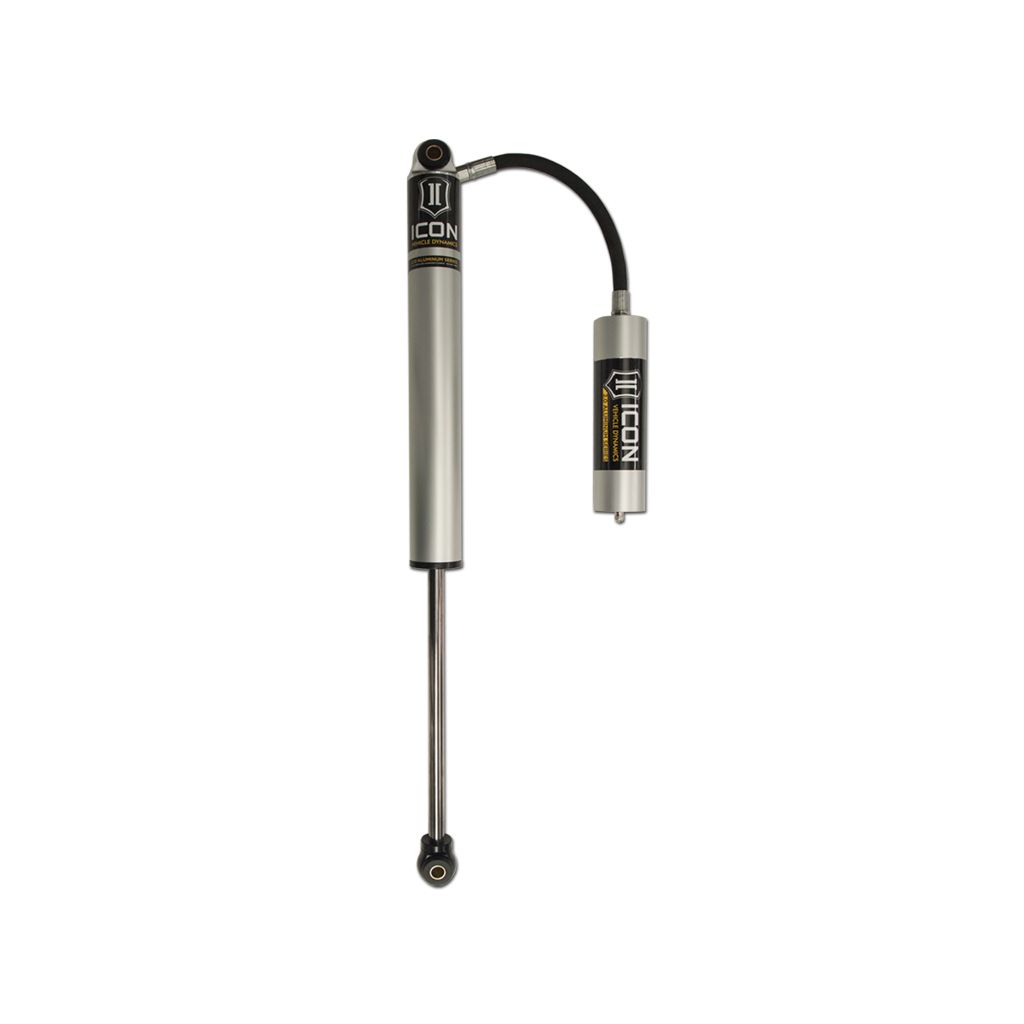

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Additional Attributes:
GTIN: 00840103400327
Compressed Length: 13.55
Travel Length: 9.45
Body Color: Gray
Finish: Anodized
Shaft Material: Chrome
Internal Construction Type: Single Tube
Grade Type: Performance
Extended Length: 23
Shock Stroke: 9.45
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Lower Mount Type: EYELET
Upper Mount Type: EYELET
Boot Included: NO
Gas Charged: Yes
Body Diameter: 2
Dust Shield Included: No
Remote Reservoir: Yes
Includes Bump Stop: No
Hydraulic Lockout: No
Internal Rebound Bumper: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Add-On Part: 252012 – -4 TO -10 HOSE SHIELD KIT
Adjustable Damping: No
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: NO
Cylinder Material: Aluminum
Dust Shield: NO
Material: Aluminum
Mounting Width: 1.5″ x 1/2″ Bolt (Upper&Lower)
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 3.0000 x 7.0000 inches
Weight: 7.0000 PG
