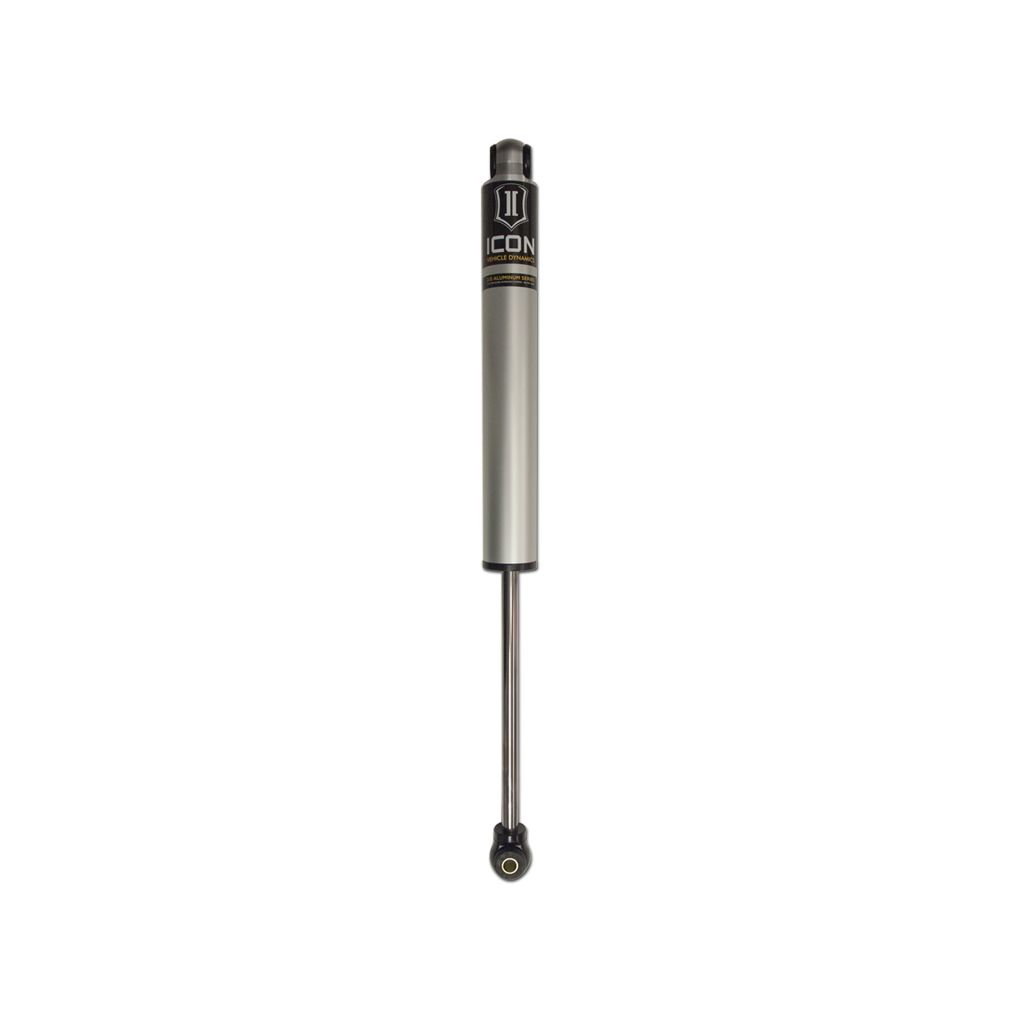

ICON 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades. The 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.
Additional Attributes:
GTIN: 00840103400396
Compressed Length: 21.1
Travel Length: 16.95
Body Color: Gray
Finish: Anodized
Shaft Material: Chrome
Mounting Hardware Included: No
Internal Construction Type: Single Tube
Grade Type: Performance
Extended Length: 38.05
Shock Stroke: 16.95
Shock Absorber Rod End Measuring Point: CENTER OF EYELET
Shock Absorber Body End Measuring Point: CENTER OF EYELET
Lower Mount Type: Eyelet
Upper Mount Type: EYELET
Boot Included: No
Gas Charged: Yes
Body Diameter: 2
Includes Bump Stop: No
Hydraulic Lockout: No
Internal Rebound Bumper: Yes
AAP_UDA_12: EA
AAP_UDA_22: 1
AAP_UDA_4: 55
Adjustable Damping: No
Bore Diameter: 1.75
Bushing Color: Black
Bushing Included: yes
Bushing Material: Polyurethane
California Prop 65 Warning: Yes
California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included: No
Cylinder Color: Grey
Cylinder Material: Aluminum
Damping Type: Oil
Dust Boot Included: No
Dust Shield: No
Material: Aluminum
Mounting Width: 1.5″ x 1/2″ Bolt (Upper&Lower)
Remote Reservoir: NO
Service Parts: 252002 – UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter: 0.625
Extended Information:
Emissions : Emissions Compliance Exempt
Life Cycle Status: Available To Order
Packaging:
Quantity of Each: 1.0
Package UOM: EA
Dimension: 40.0000 x 3.0000 x 3.0000 inches
Weight: 4.0000 PG
